Layouts to the Kaleido-RCP2 Preset buttons on page 334, for more information.
Loading a Layout by Using the RCP-200
To load a layout on the monitor wall, by using the RCP-200
1 Touch LAYOUT SELECT on the RCP-200’s right-hand screen.
The layout chooser view appears.
2 Rotate the TAKE knob to locate the layout you wish to load, scrolling the list as needed.
3 Once you have selected the layout you wish to load, press TAKE.
After a moment, the new layout appears on the monitor wall, and the RCP-200’s right-
hand screen returns to the ASSIGN CHANNEL panel.

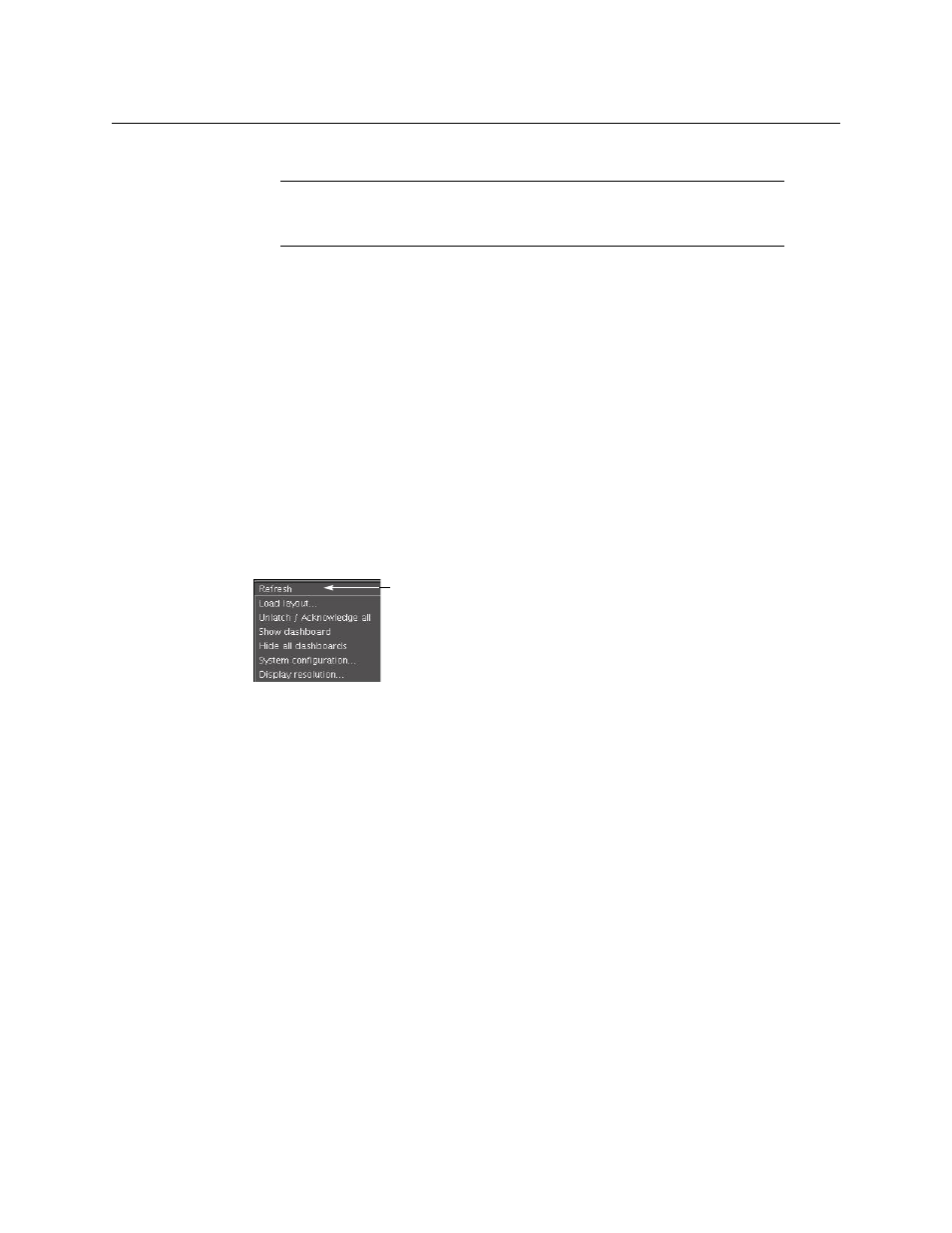

Refreshing a Layout
To refresh a layout
• Right-click anywhere on the monitor wall, point to Monitor wall (if you clicked a layout
element), and then click Refresh on the menu.
Displaying a Source in Full Screen Mode
To display a source in full screen mode from the Kaleido-RCP2
1 Move the pointer over the video source you wish to display in full screen mode.
2 Press FULL SCREEN on the Kaleido-RCP2.
The full screen layout assigned to the current user is loaded into the full screen zone.
To display a source in full screen mode from the RCP-200
1 Touch the WALL MOUSE category if it is not already selected, and then move the
pointer over the video source you wish to display in full screen mode on the monitor
wall.
2 If you have yet to assign the FULL SCREEN wall function to one of the programmable
knobs, rotate the knob you wish to program until FULL SCREEN is selected, and then
press the knob.
FULL SCREEN appears above the programmed knob.
3 Press the FULL SCREEN knob.
The full screen layout assigned to the current user is loaded into the full screen zone.
Note: Once the preset button has stopped flashing on the Kaleido-RCP2, if
the new layout has source assignments from an upstream router, it may still
take a moment before these sources appear on the monitor wall.
Refresh
