398
Tally Interface Devices &Timer Systems
Alpermann+Velte Timer System

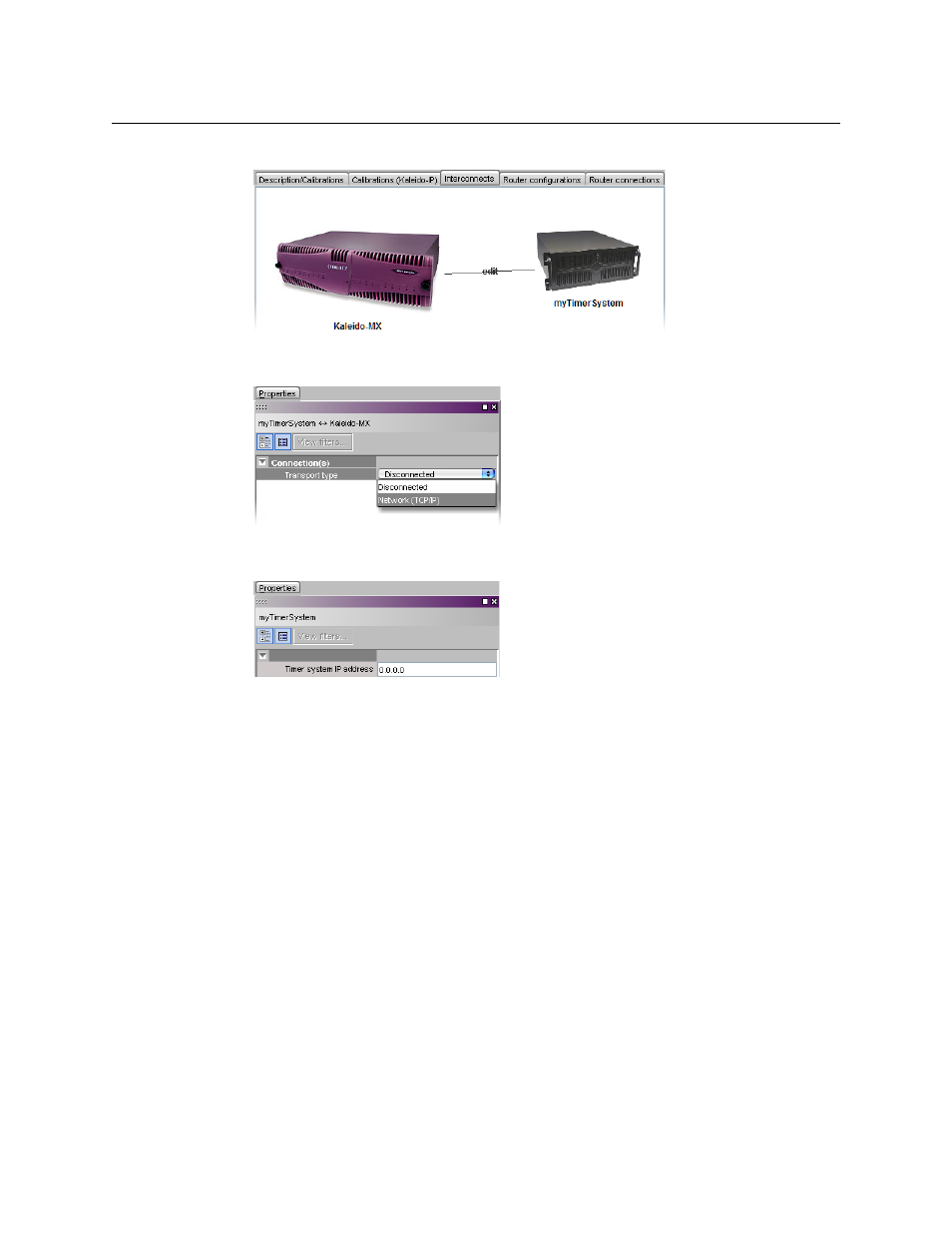

A line representing the connection between the multiviewer and the device appears.
8 Click the connection line between multiviewer and device.
9 In the Properties pane, select Network (TCP/IP) from the Transport type list.
10 In the Interconnects tab, click the timer system icon.
11 In the Properties pane, type the IP address of your timer system.
You are now ready to add information from the timer system to logical sources.
Assigning Timer System Information to Logical Sources
To configure your logical sources
1 In the Channels/Sources tab, add the required number of logical sources for your
purposes (see Manually adding a Logical Source on page 193).
2 Add the required number of text and alarm levels for your purposes (see Adding a level
on page 194).
For example, you might add one text level named Timer, and one alarm level named
Timer status.
3 Click a cell that corresponds to the appropriate text level of a logical source you wish to
configure.
4 In the filtered System list, navigate to the text element you wish to monitor, and drag it
onto the selected cell.
