be the case if you just added a router card to your system configuration—, then you
must add them to this logical level.

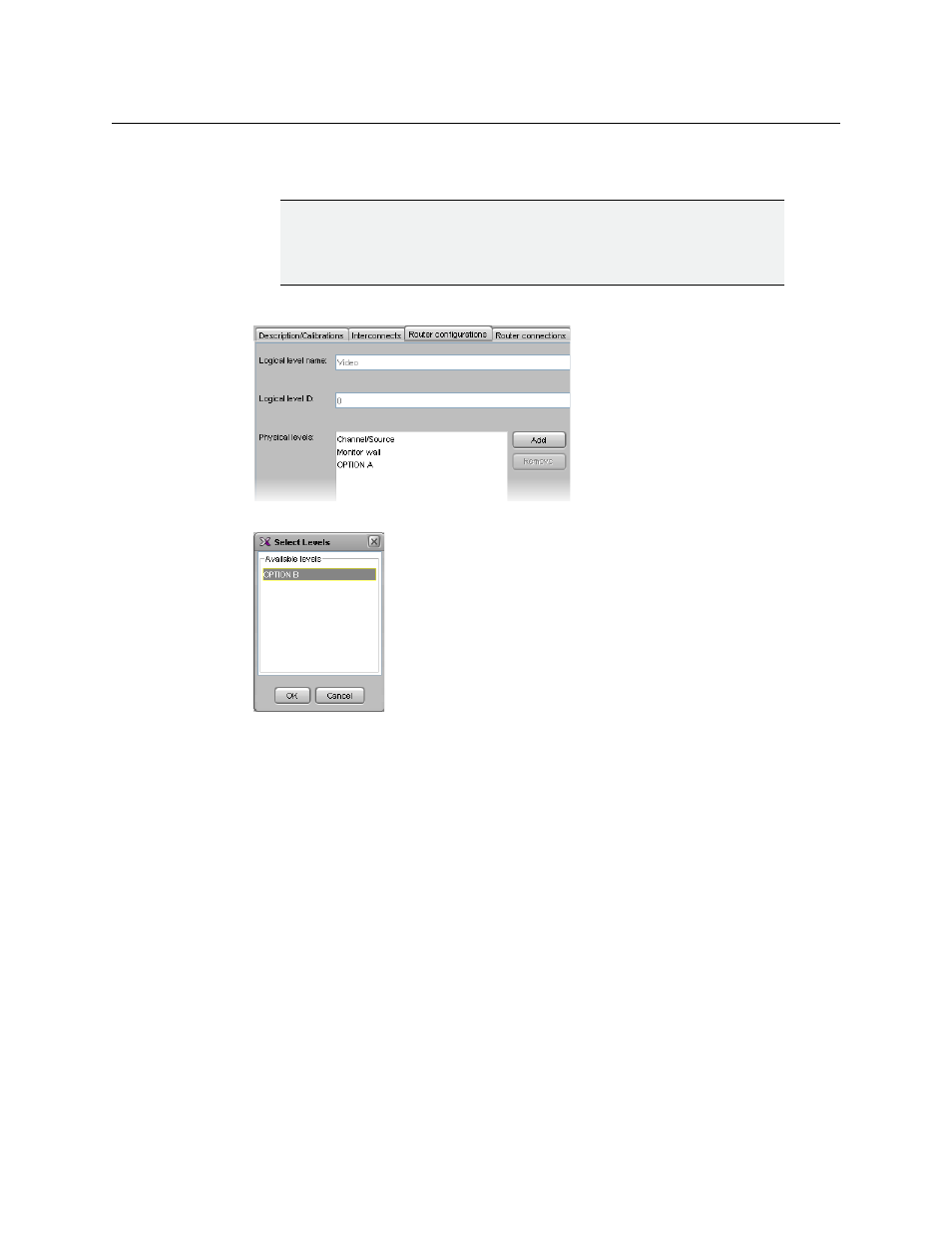

5 In the Router configurations tab, click Add.
The Select Levels window appears, listing all available physical levels.
6 Select the physical levels you wish to add to KX Router’s first logical level, and then click
OK.
The selected levels appear in the Physical levels list.
7 Click the [1] KX Router (96 × 80) folder under Logical routers in the Routers list.
The third-level tab bar appears under Router configurations, with the Configuration
tab selected.
8 Source and destination mapping is not done automatically. Click the Source mapping
tab, click a cell in the [0] Video logical level column, and then choose an input from the
list.
IMPORTANT
Controlling the multiviewer’s internal router by using any other logical router
than KX Router is not supported. The physical levels OPTION A and OPTION B
must be added to the first level (i.e. [0] Video), under KX Router.
