Grass Valley Kaleido-X v.7.80 User Manual
Page 407
399
Kaleido-X
User’s Manual
5 If your logical sources include more text levels to be associated with the timer system,
then repeat
and
for the current logical source’s remaining text levels.

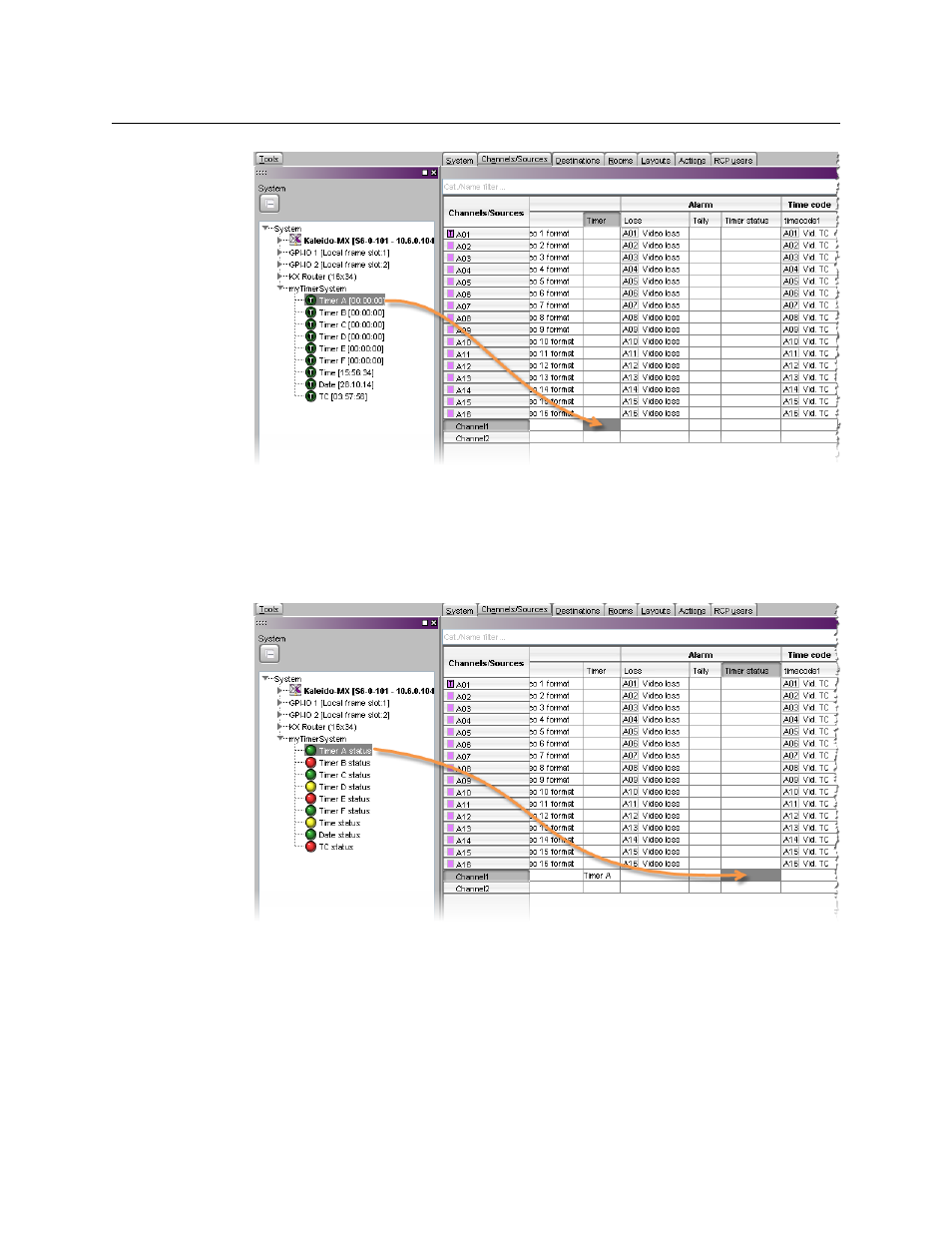

6 Click a cell that corresponds to the appropriate alarm level of a logical source you wish
to configure.
7 In the filtered System list, navigate to the alarm element you wish to monitor, and drag
it onto the selected cell.
8 If your logical sources include more alarm levels to be associated with the timer system,
then repeat
and
for the current logical source’s remaining alarm levels.
9 Repeat
for any remaining logical sources you wish to configure with
information from the timer system.
10 On the File menu, click Save.
Changes to the sources table are saved.
