• DXF-100 optical DVI extension module simplifies long runs to monitors from frame, and
is a single fiber solution for supporting high-resolution (1920 × 1200) displays over
distances of up to 1000 m (3280 ft)
• Choice of multiviewer remote control panels: simple Kaleido-RCP2 and advanced RCP-
200 with router control
• Internal router control by NVISION control panel and NV9000 system controller
• Super silent for installation within studios and control rooms
Kaleido-Modular KMV-3901/3911
The Kaleido-Modular KMV-3901/3911 is an expandable, 8-input, dual-output multiviewer
(3Gbps/HD/SD) on one Densité Series card. Hosted in a Densité
3 frame, the
KMV-3901/3911 is the most space- and energy-efficient multiviewer system, with up to
20 multiviewer outputs per 3 RU frame, or up to 288 multiviewer outputs when connected
to an upstream router.

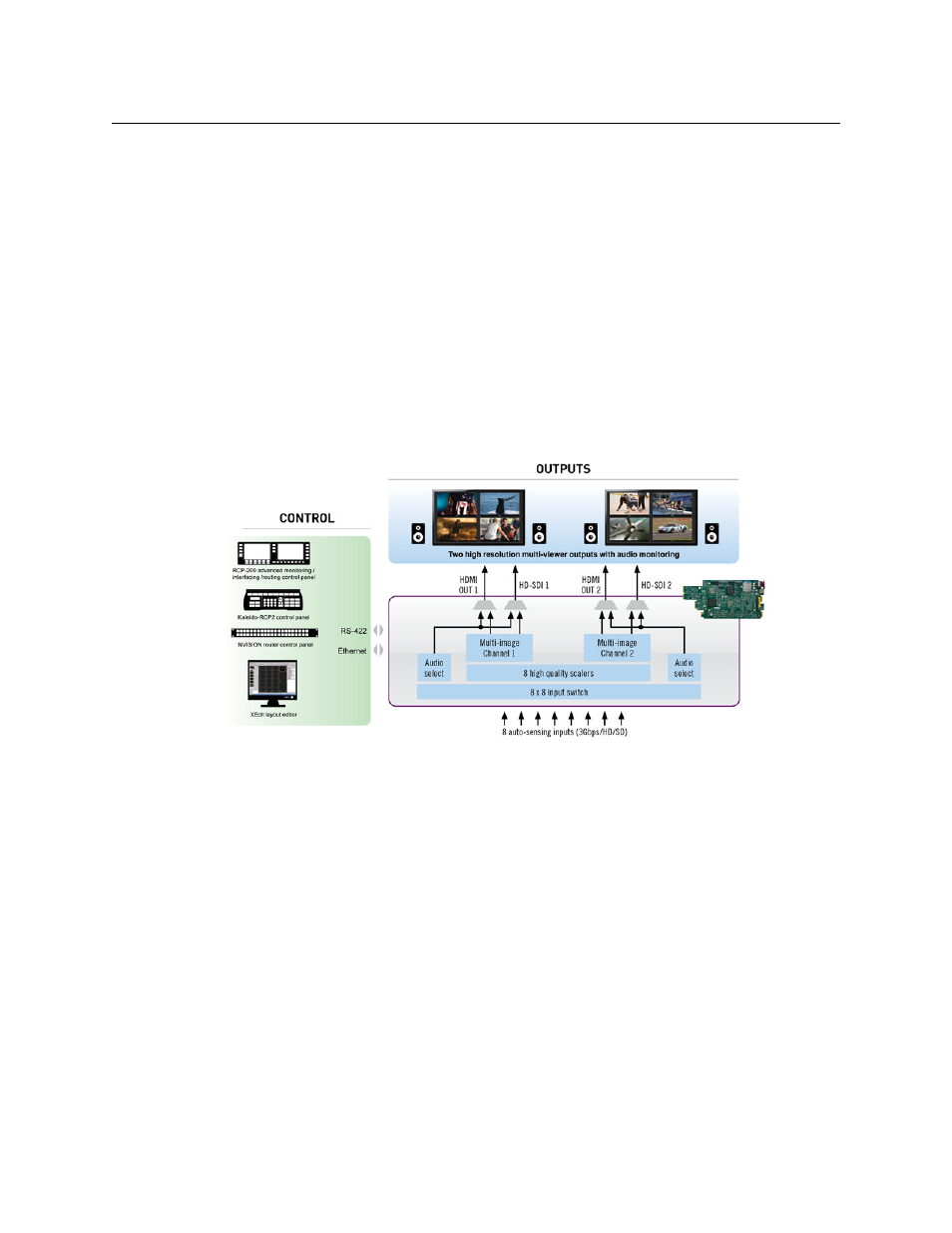

Overview of single card functionality
Kaleido-Modular KMV-3901/3911 features
With its unmatched space and energy efficiency, Kaleido-Modular is ideal for production
monitoring in trucks. The multiviewer system integrates tightly with the highly space-
efficient NVISION 8288 Truck router (288 × 576 in 10 RU), as well as Densité signal
processing cards, and third-party production switchers. Control of a highly integrated
system is simplified with the RCP-200 panel, which can operate the router and multiviewer,
as well as signal processing and distribution cards.
The KMV-3901/3911 provides a subset of the features of the Kaleido-X (4RU) and (7RU)
models:
• Four or eight auto-sensing 3Gbps/HD/SD video inputs, one or two independent HDMI
outputs
• Video signals can be repeated in up to eight windows, and scaled up to 1920 × 1200
pixels
• Audio signal, and video time code and AFD/WSS data can be extracted for on-screen
display
