Calibrating the Kaleido-X
Multiviewer Output Calibrations
6 If appropriate, you may copy the settings from this head to every output head in the
system: to apply the selected DVI input keying mode globally throughout your system,
click Apply to all.
This has the same effect as configuring every output head one by one, and selecting
the same keying mode for each.

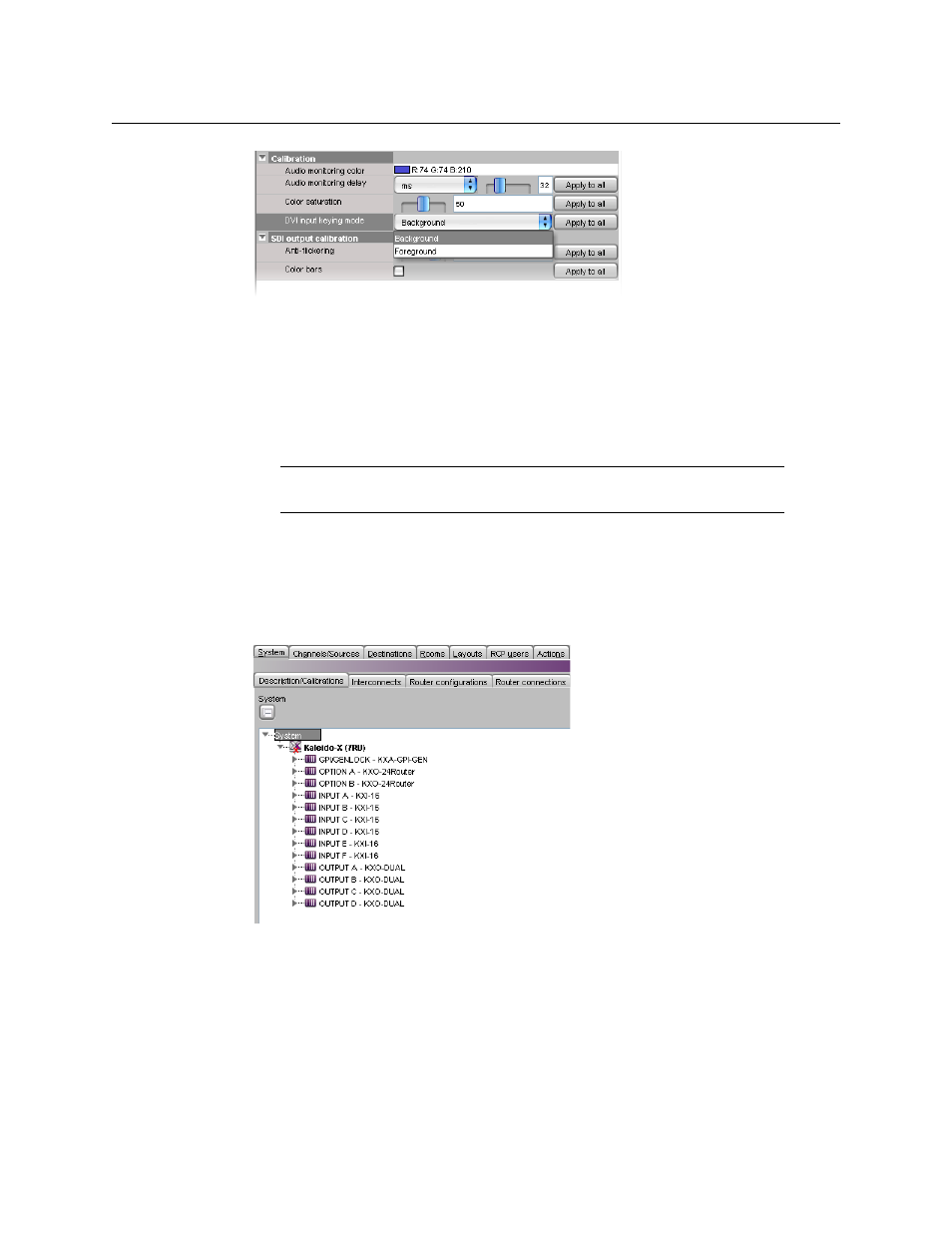

Calibrating the Audio Monitoring Delay
To calibrate the audio monitoring delay for a head
1 In the main window, click the System tab, and then click Description/Calibrations on
the second-level tab bar.
A hierarchical list representing the current system appears.
2 In the list, expand the multiviewer whose output heads you wish to calibrate.
3 Expand the appropriate output module.
The expanded module will show the output heads. (Depending on the multiviewer
model, other items may also appear.)
Note:
By design, the audio signal is approximately 37 ms ahead of the
video.
