381
Kaleido-X
User’s Manual

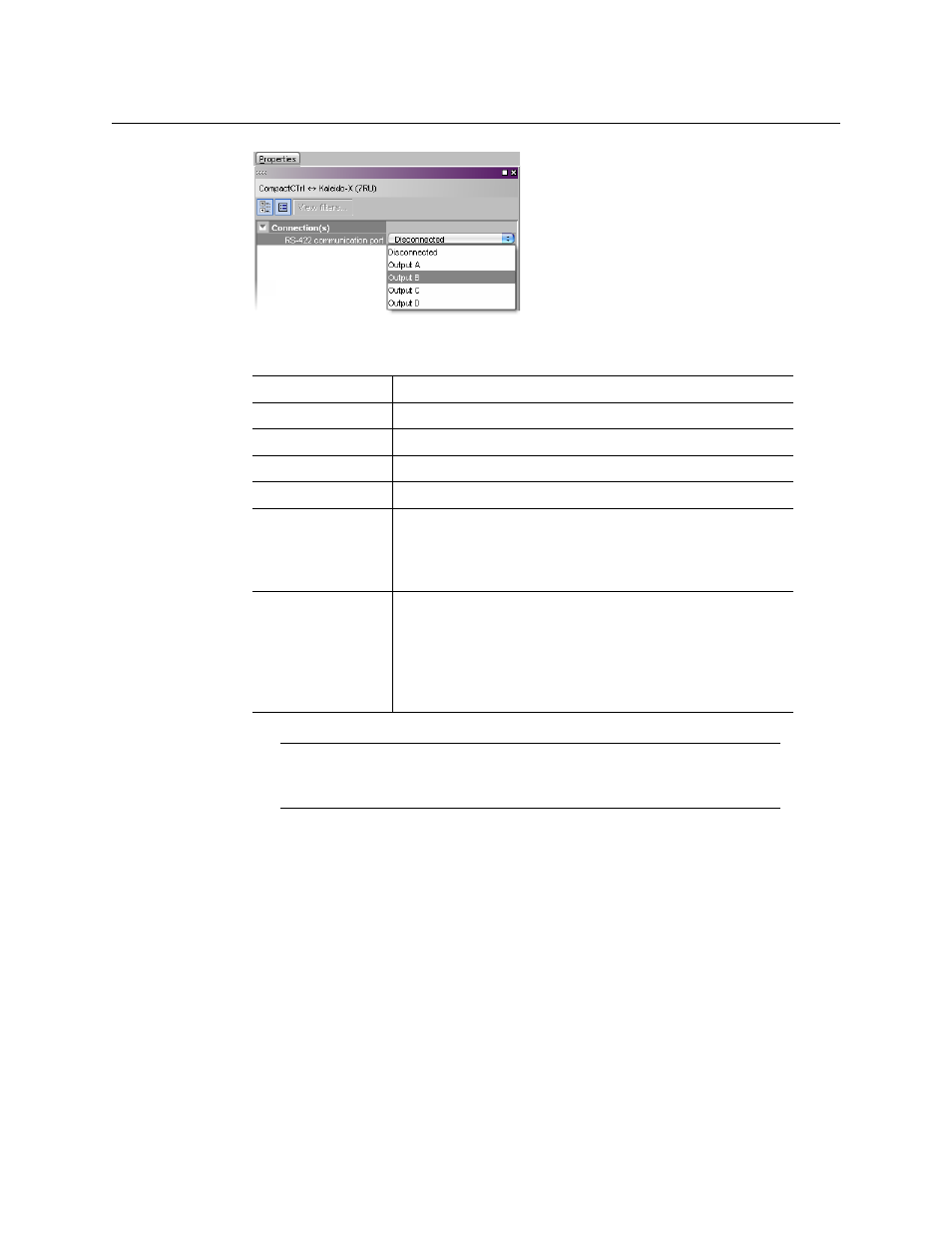

Depending on the multiviewer model, the available RS-422 ports are designated as
follows:
5 In the Interconnects tab, click the router controller icon.
In the Properties pane, a list of settings appears, with default values for the serial
communication parameters: the bit rate (bps), the number of data bits, parity, stop bits
and flow control.
6 Select a logical router (e.g., SmallLogicalRouter) from the Router list.
KMV-3901/3911 RS-422
Kaleido-X16 Port 1, and Port 2
Kaleido-X (14RU) Frame A – Output A, B, and C; Frame B – Output A, B, and C
Kaleido-X (7RU) Output A, B, C, and D
Kaleido-X (4RU) Output A, and B
Kaleido-MX,
Kaleido-MX 4K Output A, and B
Note: The Kaleido-MX (1RU) 16 × 4, and the Kaleido-MX 4K
16 × 1 models have only one RS-422 port, which is physically
connected to output card A.
Kaleido-Modular-X Output A, and B
Note: KMX-3901-OUT output cards with a single rear
connector panel (KMX-3901-OUT-D-3+SRP) do not have RS-
422 ports. To support a serial device, your Kaleido-Modular-X
system must have at least one output card with a double rear
connector panel (KMX-3901-OUT-D-3DRP).
Note: Simple router controllers can also communicate with Kaleido-X via
TCP/IP. This type of connection is enabled automatically, and allows such
controllers to issue commands to the multiviewer’s internal router module.
