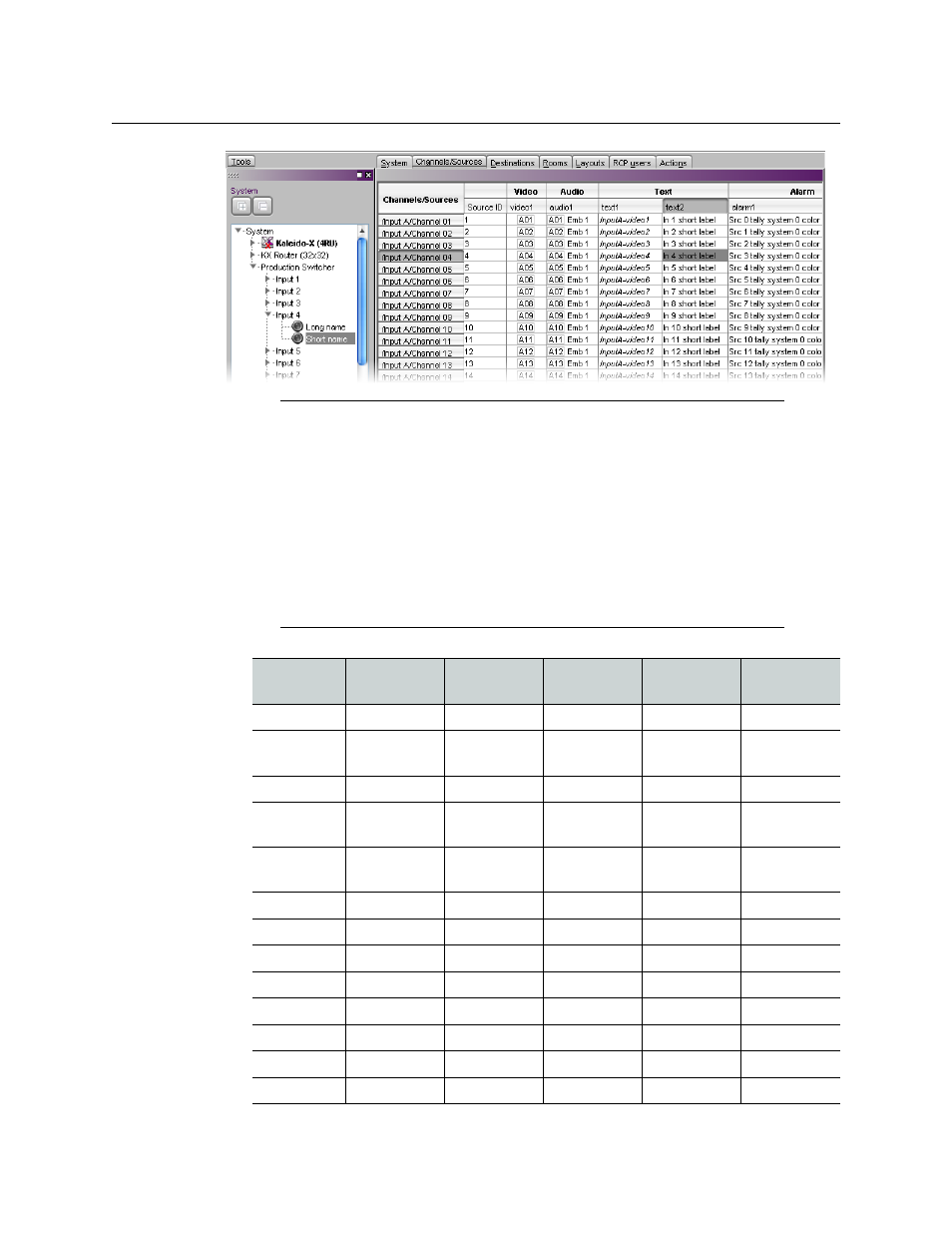

Tally Interface Devices &Timer Systems
Kayak Production Switcher
Notes
• Kayak devices provide up to 512 text sources, and up to 256 × 5 system
tally sources.
• The current version of the XtenDD HD/SD switchers software does not
provide tally sources.
• DD35 and the Kayak series switchers only provide RED (On Air) tally
sources. This is a limitation in the current version (6.9.3) of the ACOS
protocol.
• Refer to the table below for a list of valid sources, depending on your
switcher model, and their meaning in the context of the ACOS protocol.
Input
Number
DD35 XtenDD HD XtenDD SD KayakDD Kayak SD/HD
0x00 BLACK BLACK BLACK BLACK BLACK
0x01..0x60 Input1...62
(0x01..0x3E) Input 1..90
(0x01..0x5A) Input 1..90
(0x01..0x5A) Input 1..32
(0x01..0x20) Input 1..96
(0x01..0x60)
0x80 VideoStore
0x81 Montage
processor 1
0x82 Montage
processor 2
0x85 DVX1 DVX1 DVX1
0x86 DVX2 DVX2 DVX2
0x87 DVX3 DVX3 DVX3
0x88 DVX4 DVX4 DVX4
0x89 RamRec1 RamRec1 RamRec1 RamRec1
0x8A RamRec2 RamRec2 RamRec2 RamRec2
0x8B RamRec3 RamRec3 RamRec3 RamRec3
0x8C RamRec4 RamRec4 RamRec4 RamRec4
