4 In the Properties pane, set the relevant values under Calibration.
Router Output Calibrations
Calibrating Switch Field Selection
To calibrate switch field selection for a router module
1 In the main window, click the System tab, and then click Description/Calibrations on
the second-level tab bar.
A hierarchical list representing the current system appears.
2 In the list, expand the multiviewer you wish to calibrate.
3 Expand the appropriate router module, and then click Switch field selection.

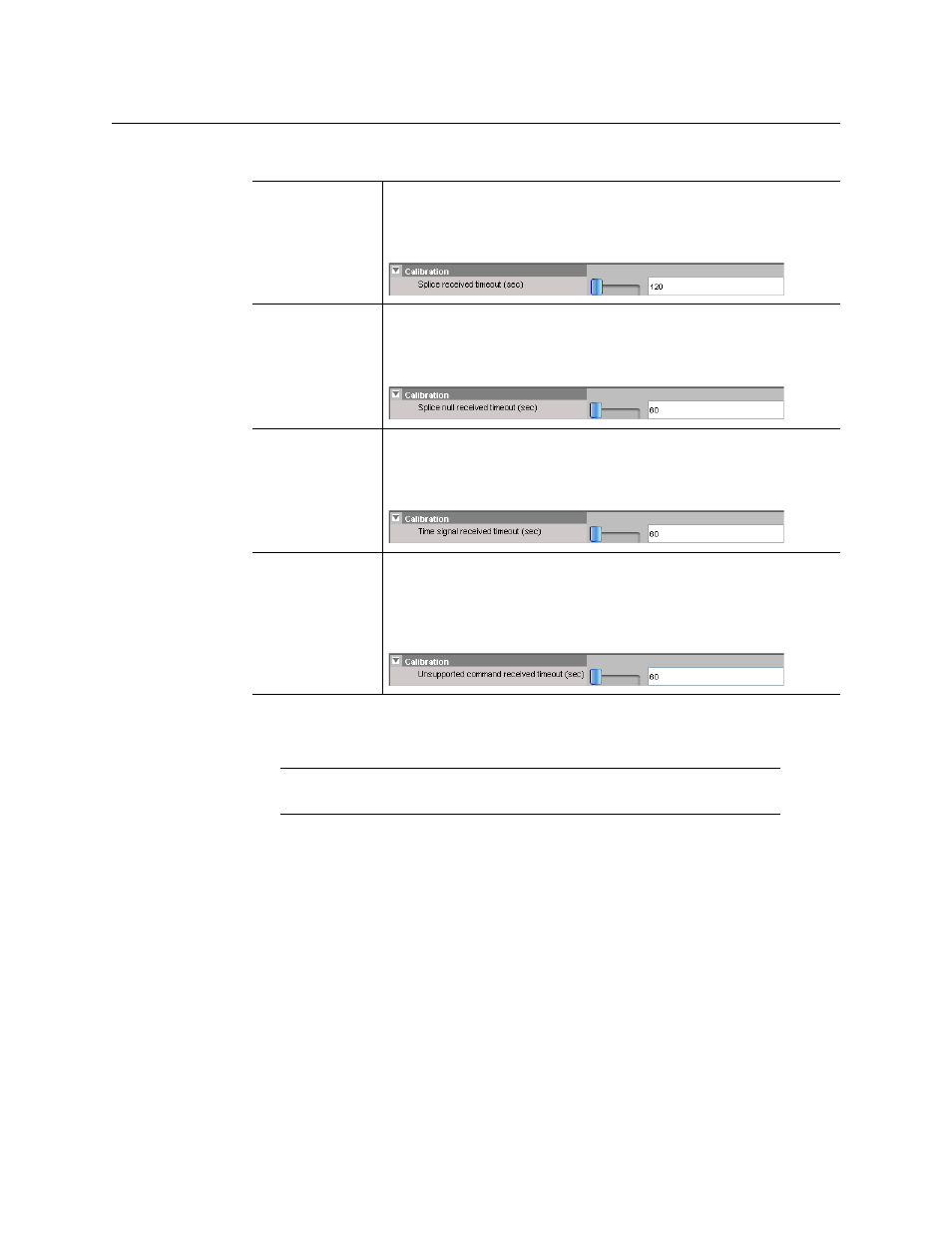

Splice received
timeout
Set the delay (in seconds) after which the splice received alarm will be
cleared. The splice received alarm is triggered immediately whenever
the Kaleido-IP detects a splice insert command. The default value is
120 seconds, on a range of 1 to 3600.
Splice null
received timeout
Set the delay (in seconds) after which the splice null received alarm will
be cleared. The splice null received alarm is triggered immediately
whenever the Kaleido-IP detects a splice null command. The default
value is 60 seconds, on a range of 1 to 3600.
Time signal
received timeout
Set the delay (in seconds) after which the time signal received alarm
will be cleared. The time signal received alarm is triggered
immediately whenever the Kaleido-IP detects a time signal command.
The default value is 60 seconds, on a range of 1 to 3600.
Unsupported
command
received timeout
Set the delay (in seconds) after which the unsupported command
received alarm will be cleared. The unsupported command received
alarm is triggered immediately whenever the Kaleido-IP detects a
command that does not belong to the set of supported commands.
The default value is 60 seconds, on a range of 1 to 3600.
Note:
This section applies to the Kaleido-X16, Kaleido-X (7RU), and
Kaleido-X (14RU) expansion systems only.
