422
Tally Interface Devices &Timer Systems
Kahuna Production Switcher

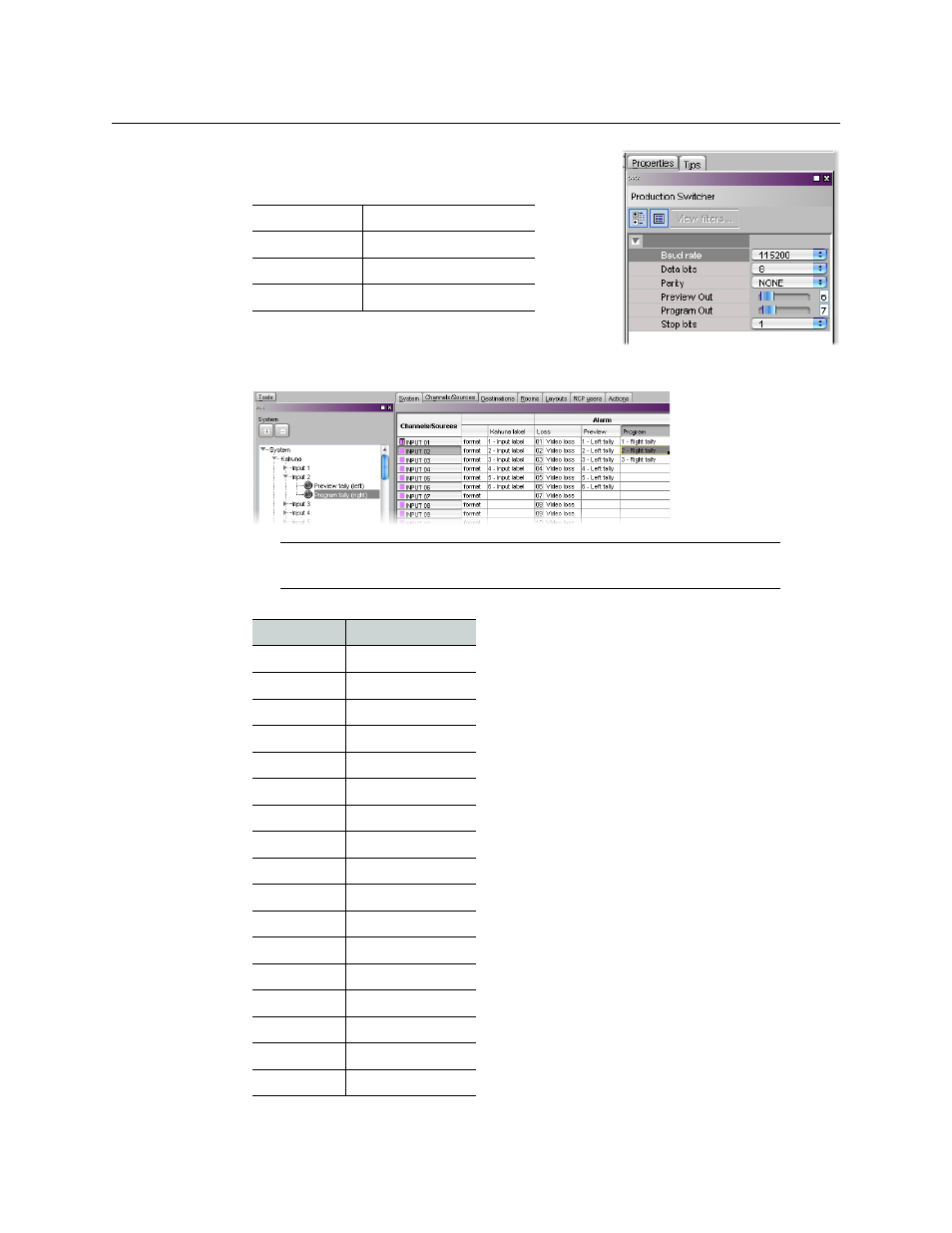

10 In the Properties pane, set the serial
communications properties for the Kahuna device as
follows:
11 In the Channels/Sources tab, create logical sources
using Text and Alarm elements coming from the
Kahuna’s serial tally information.
Baud Rate 115200
Data Bits 8
Parity NONE
Stop bits 1
Note: Refer to the table below for a list of valid source IDs and their
meaning in the context of the Kahuna serial tally protocol.
Source IDs Kahuna
1 - 80 Inputs 1 - 80
81 Store 9
82 Store 10
83 Store 11
84 Store 12
85 Store 13
86 Store 14
87 Store 15
88 Store 16
89 DVE 1 Output 1
90 DVE 1 Output 2
91 DVE 1 Output 3
92 DVE 1 Output 4
93 M/E 1 Output 1
94 M/E 1 Output 2
95 M/E 1 Output 3
96 M/E 1 Output 4
