52
Operation of the Monitor Wall
Assigning Sources to Monitors
To assign a logical source to a monitor, by using the RCP-200’s Category/Index panel
1 Select the appropriate head from the room view, by rotating the HEAD knob (or by
touching the DISPLAY SELECT category, and then touching the desired room display), if
needed.
2 Touch the monitor whose source assignment you wish to change.
The monitor’s border turns yellow, indicating that this monitor is a monitor wall
destination, and the RCP-200’s category/index panel appears on the left-hand screen.
The label of each category/index button is based on recurring strings found in the
logical source names available for your system. The Src and Dst areas show the current
source assignment and the monitor wall destination number for the selected monitor.
3 Touch through the categories until the Pst area shows the logical source you wish to
assign to the selected monitor. For example, if you wish to assign the logical source
named “/Input B/Channel 16” to the monitor, touch Input B, 1, and then 6.
4 Press Take.
The selected logical source is now assigned to the monitor.
To assign a logical source to a monitor, by using the RCP-200’s CHANNEL knob
1 Touch the WALL MOUSE category if it is not already selected, and then move the
pointer over the composite or video monitor whose source assignment you wish to
change.
2 If you have yet to assign the CHANNEL wall function to one of the programmable
knobs, rotate the knob you wish to program until CHANNEL is selected, and then press
the knob.
CHANNEL appears above the programmed knob.
3 Press the CHANNEL knob.

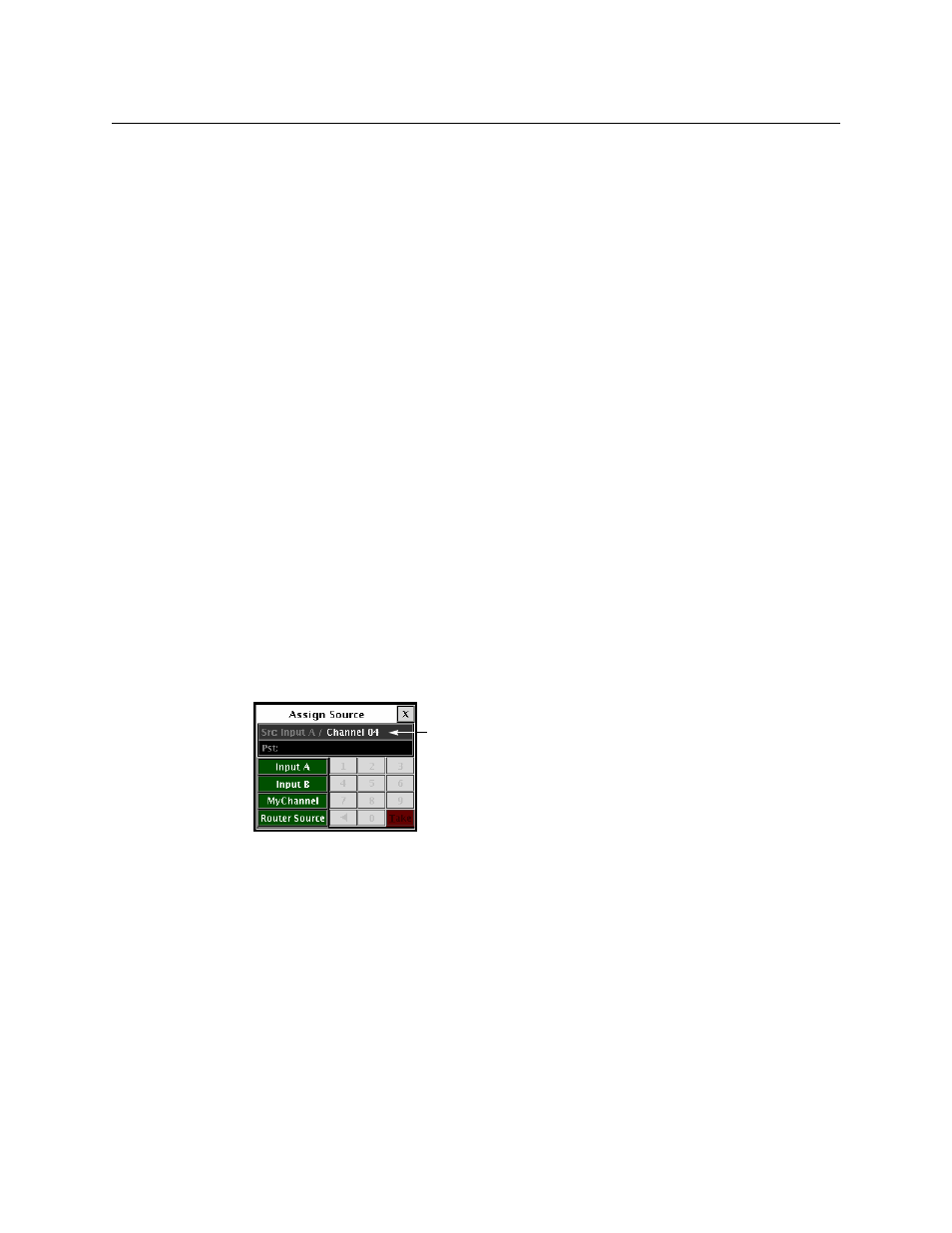

The Assign Source window appears on the monitor wall.
The label of each category/index button in Assign Source is based on recurring strings
found in the logical source names available for your system. The Src box shows the
current assignment.
4 Click through the categories until the Pst box shows the logical source you wish to
assign to the selected monitor. For example, if you wish to assign the logical source
named “/Input B/Channel 16” to the monitor, click Input B, 1, and then 6.
Current assignment
