416
Tally Interface Devices &Timer Systems
Sony Production Switcher
Setting Up a Multiviewer to Interface with a Sony Production Switcher
To set up the multiviewer to interface with the Sony production switcher
1 Open XEdit.
2 In the main window, click the System tab, and then click Description/Calibrations on
the second-level tab bar. The main pane displays the System hierarchical list, and the
Tools pane displays the equipment library when the root of the System list is selected.
3 Drag the Sony production switcher device from the equipment library onto the root of
the System hierarchical list. Alternatively, right-click the list root, and then click Insert
Sony serial tally on the menu.

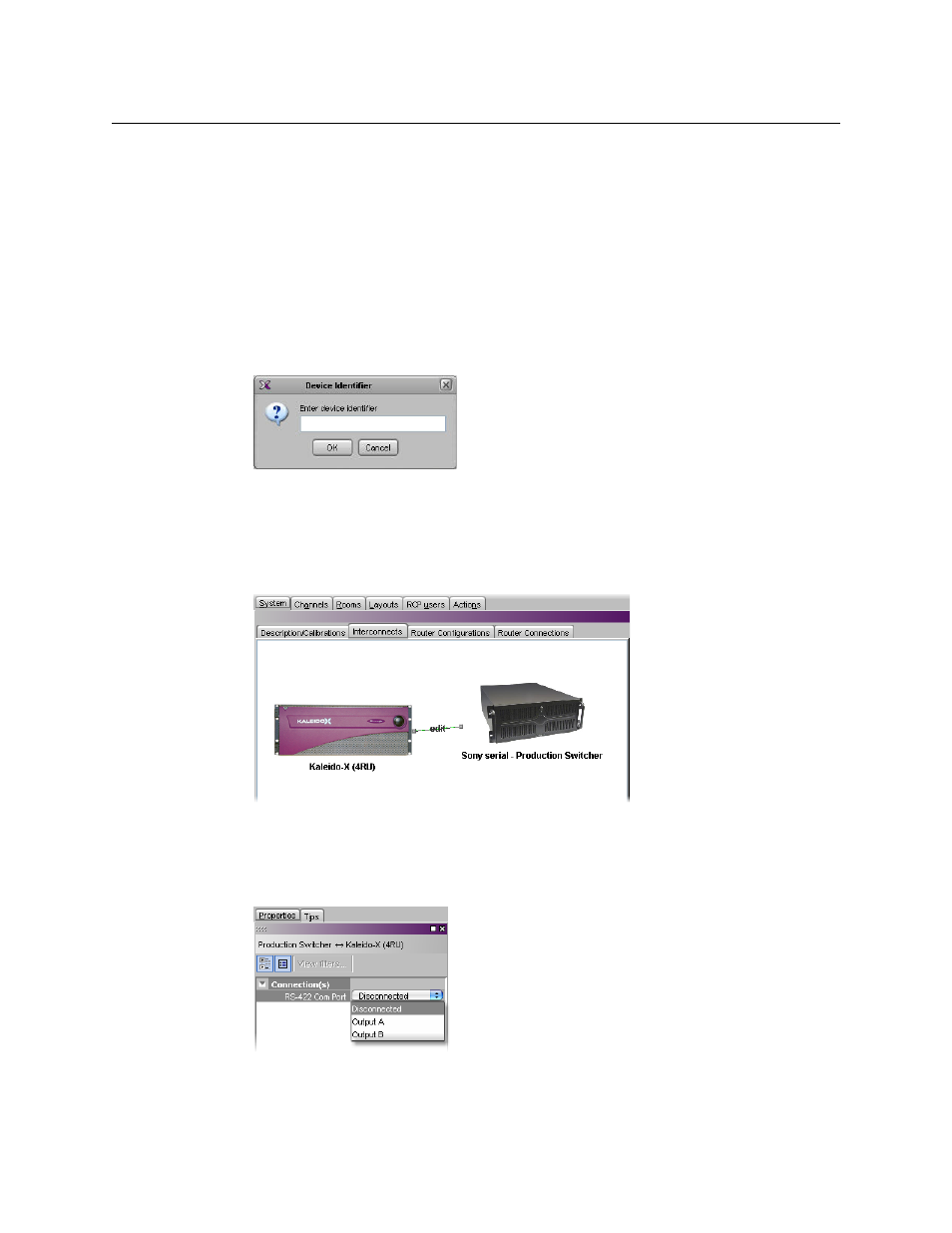

A window appears, prompting you for a device identifier.
4 Type the name of the Sony production switcher, and then click OK.
5 Click the Interconnects tab.
6 Position the pointer over the multiviewer icon, then click and drag towards the Sony
production switcher icon.
A line representing the connection between the multiviewer and the device appears.
Connection between the multiviewer and the device
7 Click the connection line between the multiviewer and the device.
8 In the Properties pane, select the appropriate element from the RS-422
communication port list.
