Operation of the Monitor Wall
Loading Layouts

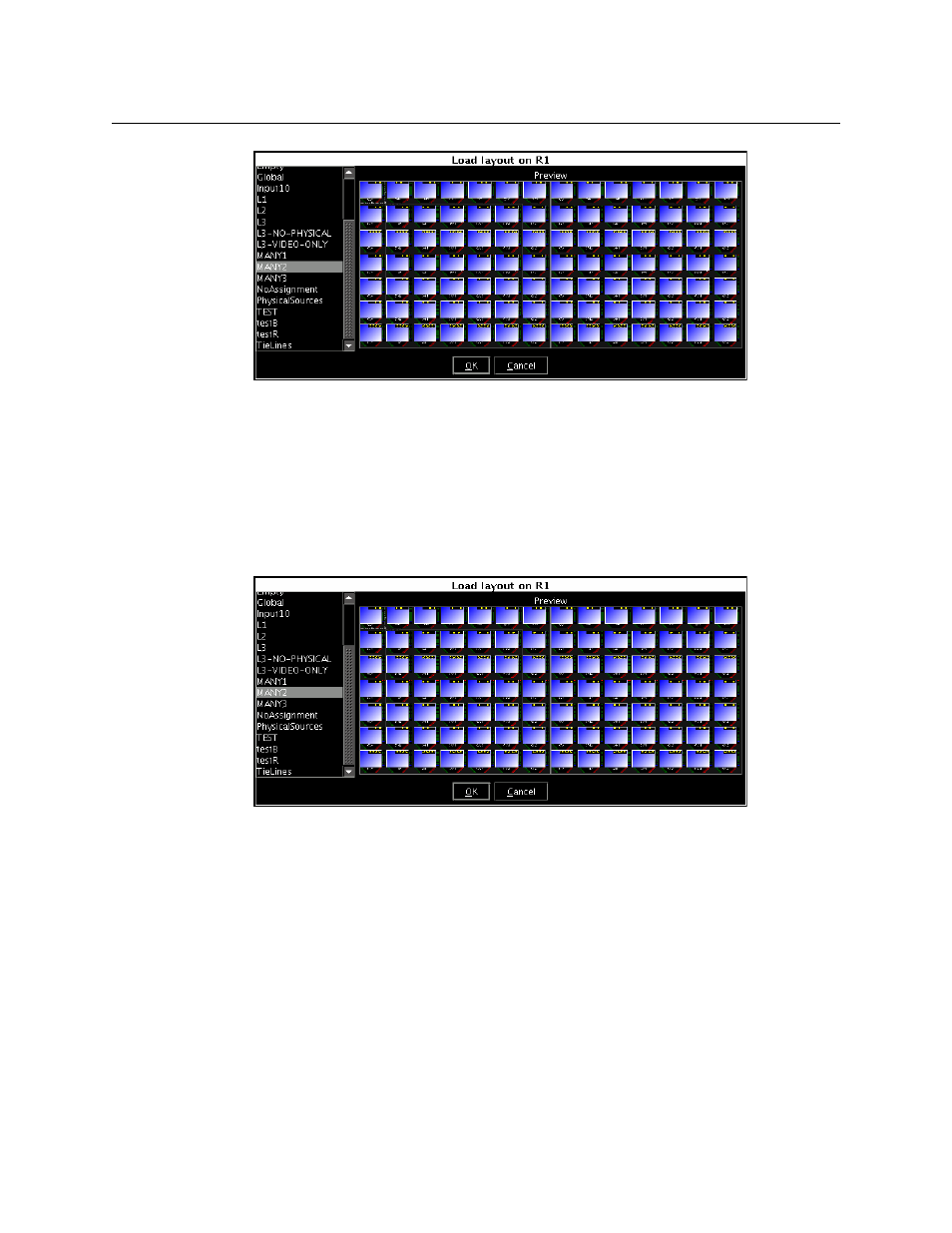

2 Select the layout you wish to load, from the set of layouts defined for this room, and
then click OK.
The new layout appears on the monitor wall.
Loading a Layout by Using the Kaleido-RCP2
To load a layout on the monitor wall, by using the Kaleido-RCP2
1 Press LOAD on the Kaleido-RCP2.
The layout chooser appears.
2 Select the layout you wish to load, from the set of layouts defined for this room, and
then click OK.
The new layout appears on the monitor wall.
Using Layouts Presets
To load a layout using the Kaleido-RCP2’s preset buttons
• Press the appropriate preset button (1-10) on the Kaleido-RCP2.
The button you just pressed starts flashing (while the button associated with the
currently loaded layout, if any, remains lit). Once the layout associated with the preset
button for the current user appears on the monitor wall, the button stops flashing, and
becomes lit (while the previously lit button is not lit anymore). See
Assigning Room
