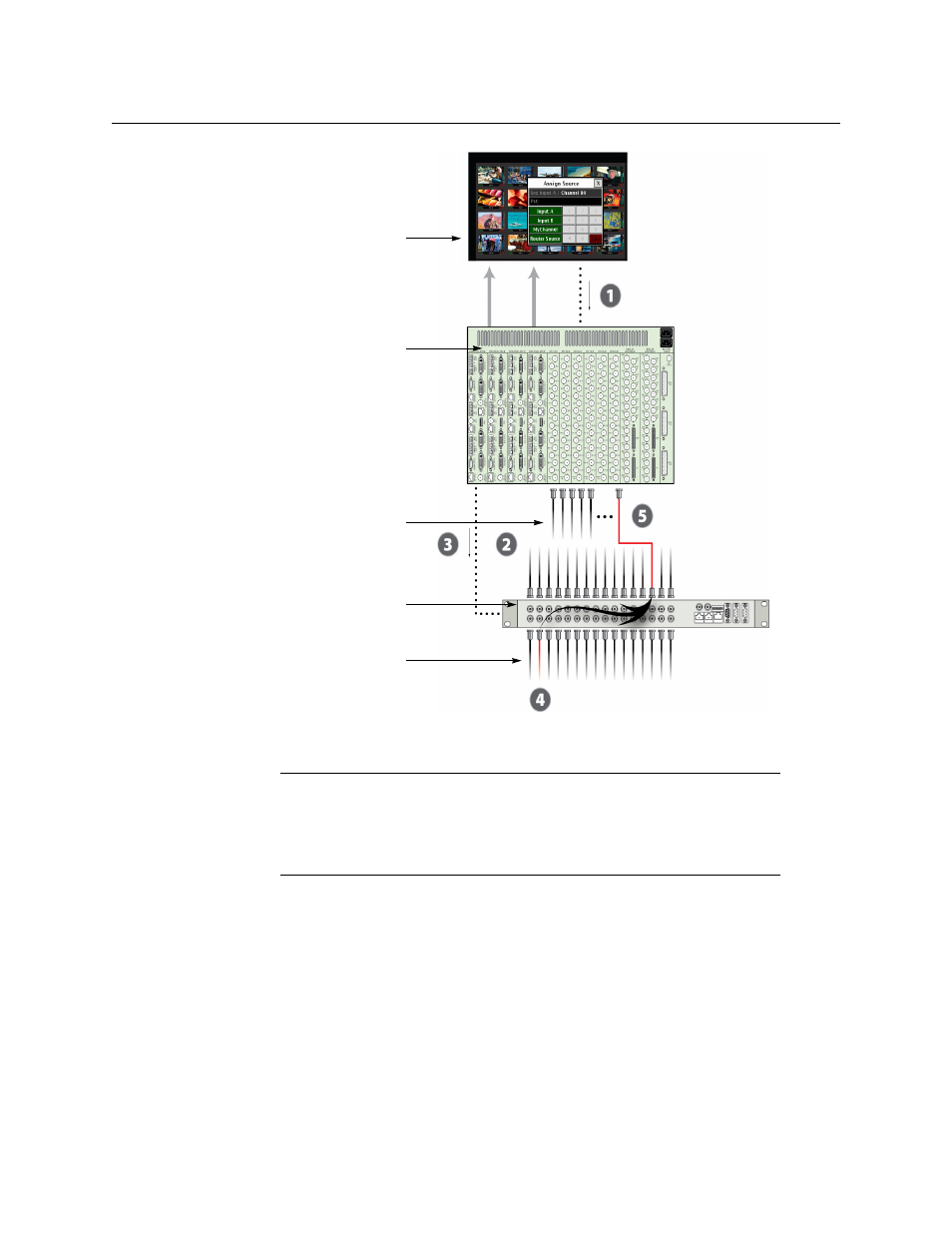

1 An operator right-clicks a monitor and assigns a logical source by using the Assign
Source window.
2 The Router connections tab in XEdit allows you to map physical connections between
a number of INPUT connectors on the multiviewer and the upstream router’s OUTPUTs
that feed them, which allows the Kaleido-X software to determine the crosspoint
switch needed. See
Configuring Router Connections on page 393 for details.
3 The multiviewer sends this command to the external router, over a serial or TCP/IP
connection, using the appropriate protocol.
4 The external router redirects the specified source signal.
5 The new signal follows the physical connection to one of the multiviewer inputs
reserved for this purpose, is processed, and appears on the monitor wall.
Note: It may also be possible to select a source from the Assign [router]
input menu (see Changing an External Router Crosspoint on page 57).
However, as of version 5.20 of the Kaleido-X software, Grass Valley strongly
recommends configuring the KX Router logical router to cover all routing
purposes within the multiviewer system.
Assign Source window on the
monitor wall
DVI outputs to monitor wall
INPUTs 1 to 96 entering KXI
cards
OUTPUTs 1 to N exiting router,
some of which are physically
connected to KXI INPUTs
SOURCES (e.g. CAM_1, SAT_1)
entering router
