Step 1 – Defining a Physical Router
To configure an external router

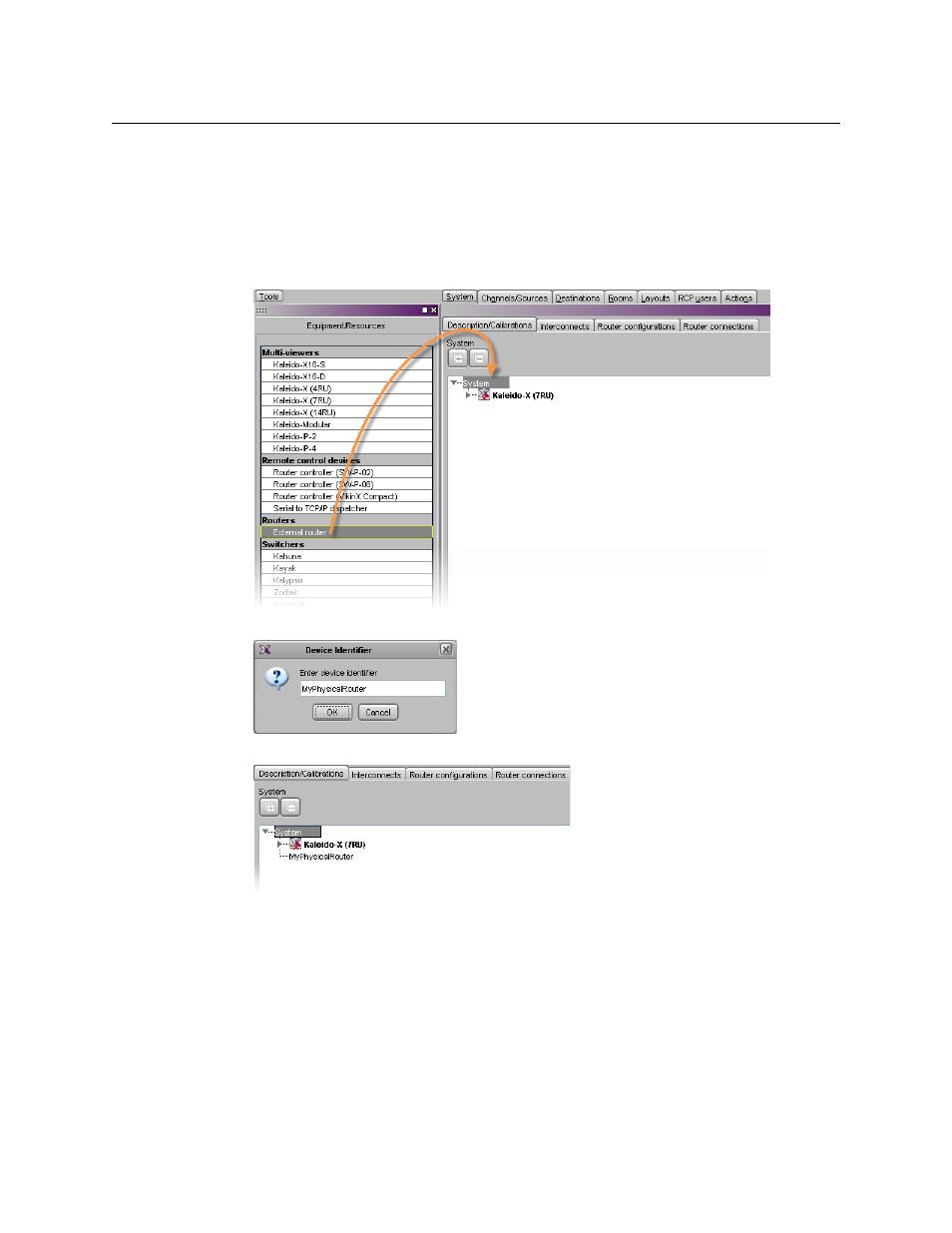

1 Open XEdit and load the database associated with the multiviewer for which you wish
to configure an external router.
2 Drag External Router from the Equipment library onto the root of the System
hierarchical list in the Description/Calibrations pane.
3 Enter a descriptive name to act as a device identifier for the external (physical) router.
A new physical router appears in the System list.
4 Click the Interconnects tab, draw a line between the multiviewer and the External
Router icons to establish a connection (i.e. add a connection properties entry to the
database), and then click the line.
