Getting Started
Loading a Layout
To load a layout on the monitor wall
1 Connect a mouse to the Kaleido-RCP2 or RCP-200 (if available) and log on to the
multiviewer from the control panel, if you have not already done so (see
the Monitor Wall Using a Remote Control Panel
Alternatively, connect the mouse directly to one of the USB ports on the multiviewer.

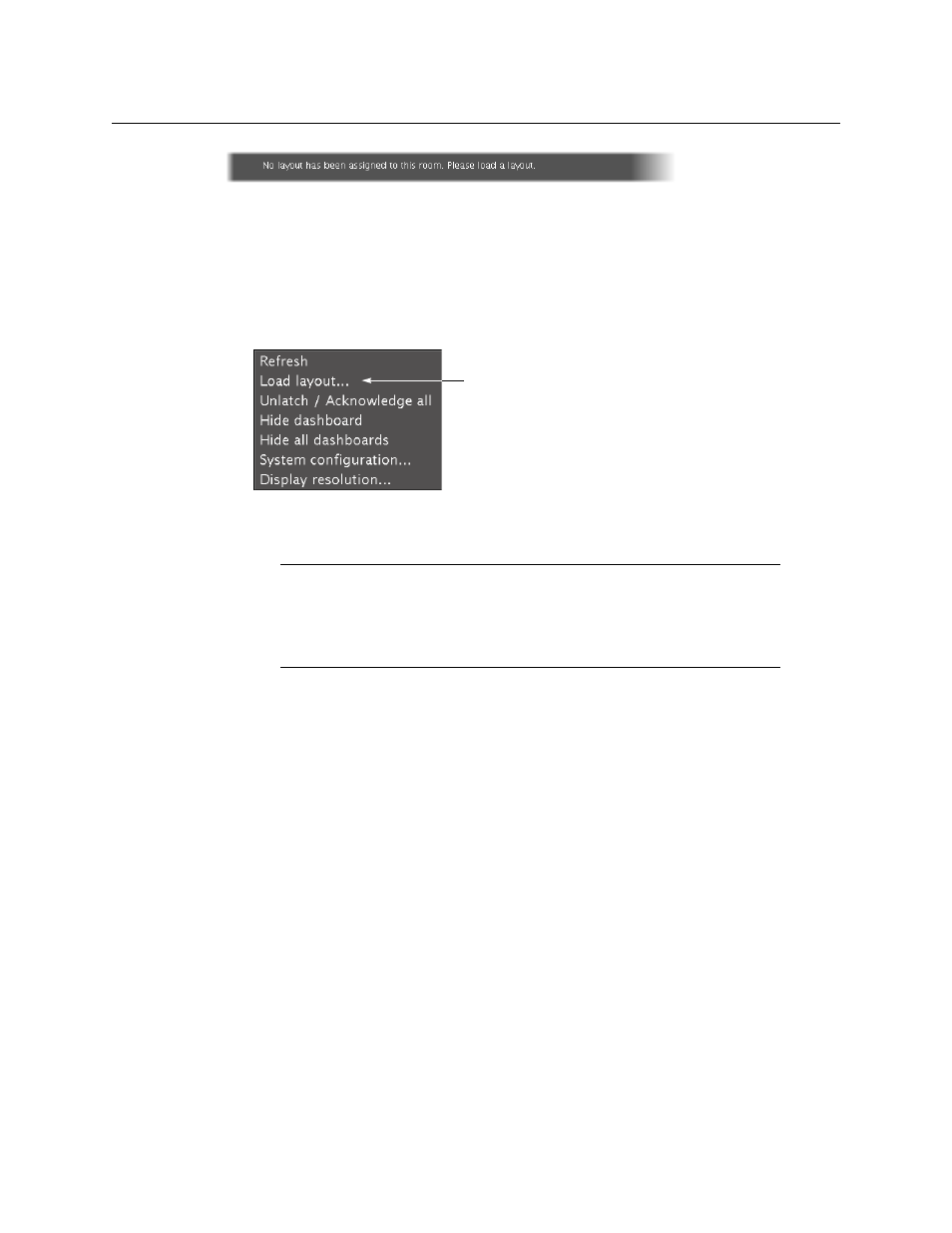

2 Right-click anywhere on the monitor wall, point to Monitor wall (if you clicked a layout
element), and then click Load layout on the menu.
Monitor wall menu
A layout browser appears on the displays associated with the current room.
3 Choose a default layout from the layout browser.
The video sources should appear on the room displays.
Note:
By default, each room is associated with one multiviewer output or
output card. Most predefined layouts are configured to show all video
streams for a given input card (e.g., in the case of a Kaleido-X, or Kaleido-MX
system) or all video streams connected to the multiviewer’s inputs (e.g., in
the case of a Kaleido-X16, or Kaleido-Modular KMV-3901/3911 system).
