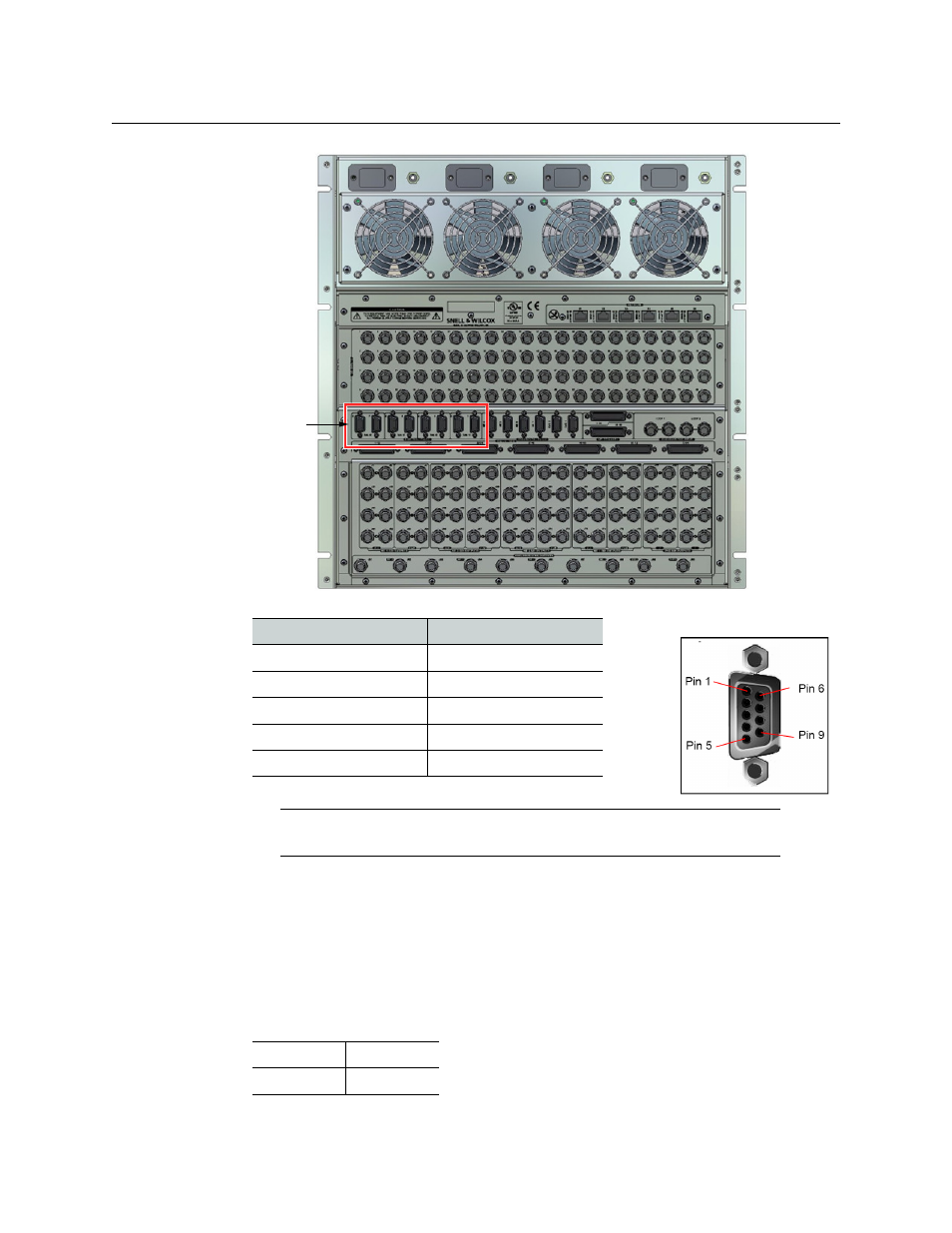

The Kahuna has DE-9 connectors with the following pinout:
3 On the Kahuna switcher’s GUI panel, press the ENG CONFIG button.
The Engineering Config menu appears on the touch screen.
4 Touch the Protocols button on the screen to bring up the Engineering Config – Serial
Port Protocols menu.
5 In the list of RS-422 ports, select the one to which you connected the crossover cable.
6 Set the communications parameters for the selected port as follows, using the rotary
controls on the right of the GUI panel:
9-pin Signal
2 RX-
3 TX+
7 RX+
8 TX-
4 GND
Note: See RS-422 Connection Diagram on page 26 for pinouts on the
multiviewer.
Protocol Serial Tally
Baud Rate 115 200
RS-422 ports
(1 – 8)
