362
Routers & Kaleido-X
Importing Router Configurations from an NV9000 System Controller

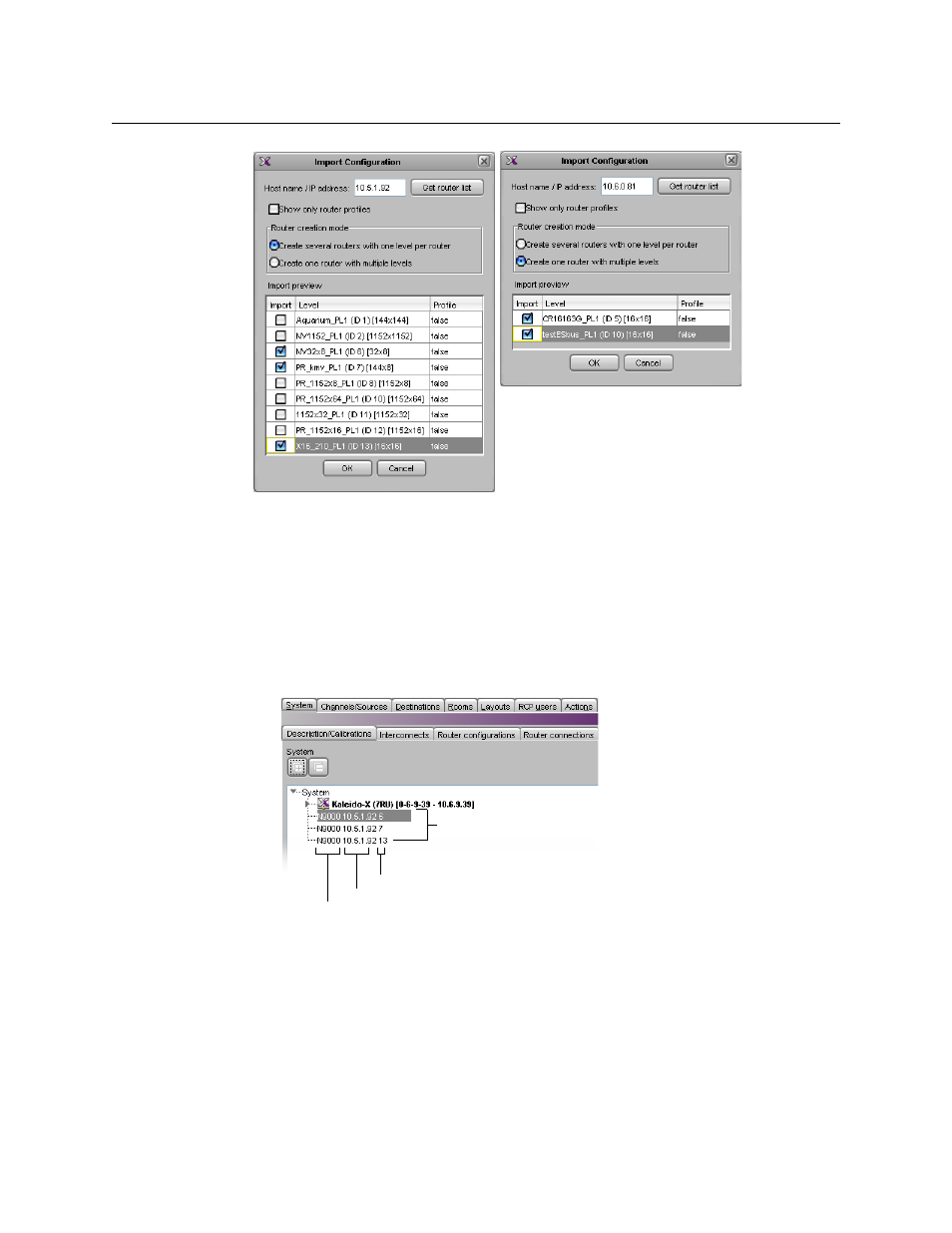

Example: Three routers will be created.
7 Click OK.
The selected router configurations are imported into your multiviewer system.
• If you selected Create several routers with one level per router, then, once the
import has completed, your multiviewer’s configuration includes new external
routers whose names are based on the NV9000 system controller’s IP address
prefixed with N9000, and followed with the ID of the NV9000 physical level (e.g.,
“N9000 10.5.1.92 6,” where “10.5.1.92” is the controller’s IP address, and “6” is the
NV9000 physical level ID).
Three external routers were added to the system.
The Routers list includes new physical, and logical routers with the same names.
The new physical routers and associated logical routers have one level for every
router you imported from the NV9000 system controller.
Example: One router with two levels
will be created.
New external routers
NV9000 physical level ID
NV9000 system controller IP address
Prefix
