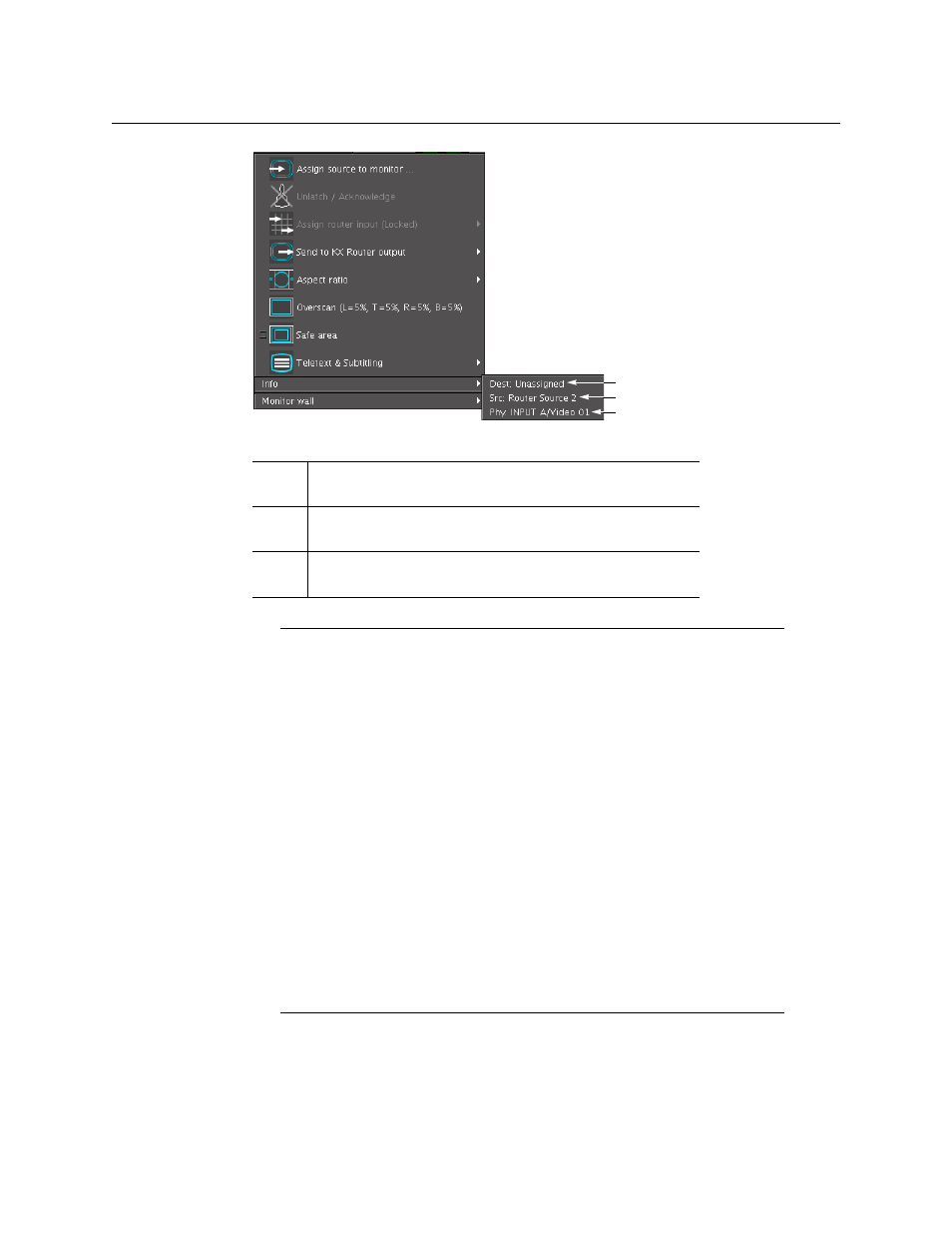

The following information appears, as a submenu:
Dest Name associated with this monitor when considered as a
destination in the context of the KX Router logical router
Src Name of the logical source currently assigned to this
monitor.
Phy Identifier associated with the physical multiviewer input
providing the current signal to this monitor.
Notes
• In the case of a Kaleido-IP, the physical input information (Phy) is not
relevant.
• The information shown is not dynamic. To view the latest information,
close the menu, and then open it again.
• The physical input information (Phy) indicates “Unassigned” when there
are no logical source assigned to the monitor, or when the current logical
source does not include any video level.
• The physical input information (Phy) may indicate “Unresolved” in
situations such as the following:
• the router that provides the current source to the multiviewer is not
configured properly;
• the router interconnections are not configured properly;
• there is no communication between the router and the multiviewer;
• an input card was removed (in the case of a Kaleido-X, Kaleido-MX, or
Kaleido-MX 4K multiviewer model);
• there are not enough multiviewer inputs connected to the router to
handle all the signals being routed to monitor wall destinations.
Current logical source
Physical source ID
Monitor-wall destination
