Calibrating the DVI Keying Mode
To calibrate the DVI keying mode
1 In the main window, click the System tab, and then click Description/Calibrations on
the second-level tab bar.

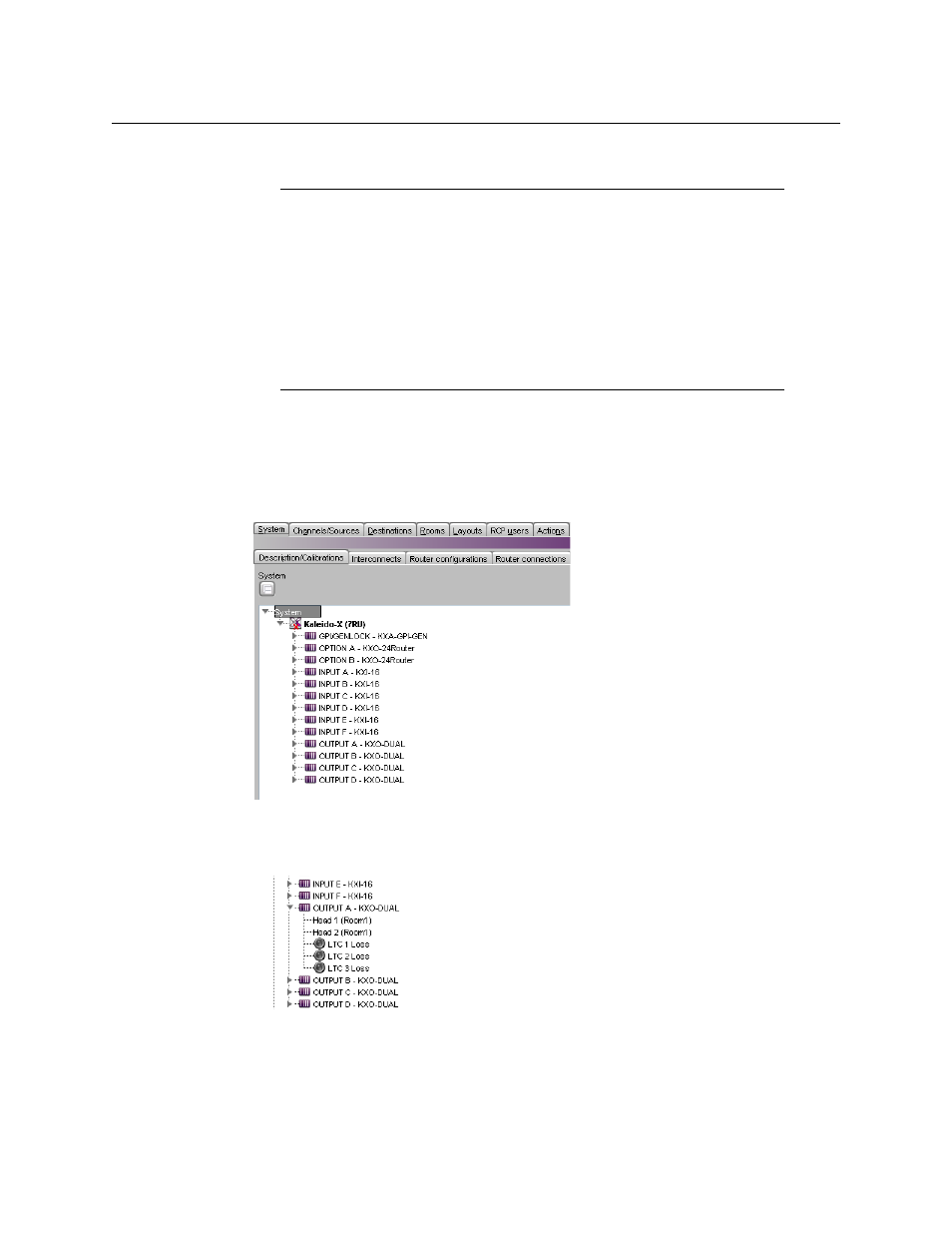

A hierarchical list representing the current system appears.
2 In the list, expand the multiviewer whose output heads you wish to calibrate.
3 Expand the appropriate output module.
The expanded module will show the output heads. (Depending on the multiviewer
model, other items may also appear.)
4 Select the head you wish to calibrate.
5 In the Properties pane, select the appropriate value from the DVI Input Keying Mode
list.
Notes
• This section applies to the Kaleido-X and Kaleido-X16 multiviewer models
only.
• Background keying is enabled by default, and should remain enabled
when no actual keying is involved. Enabling the foreground keying mode
when there is no signal at the associated DVI input is not supported.
• For more information about using content from the DVI input as
background, see Setting up a Layout for Background Keying from the DVI
Input , on page 253.
