The name of every NV9000 physical level or profile is followed with an ID, and
dimensions. For example, in the case of NV32X8_PL1 (ID 6) [32x8] above, the part
NV32X8_PL1 is the name of an NV9000 physical level, whose ID (internal to the NV9000
system) is 6, and which has 32 sources and 8 destinations.

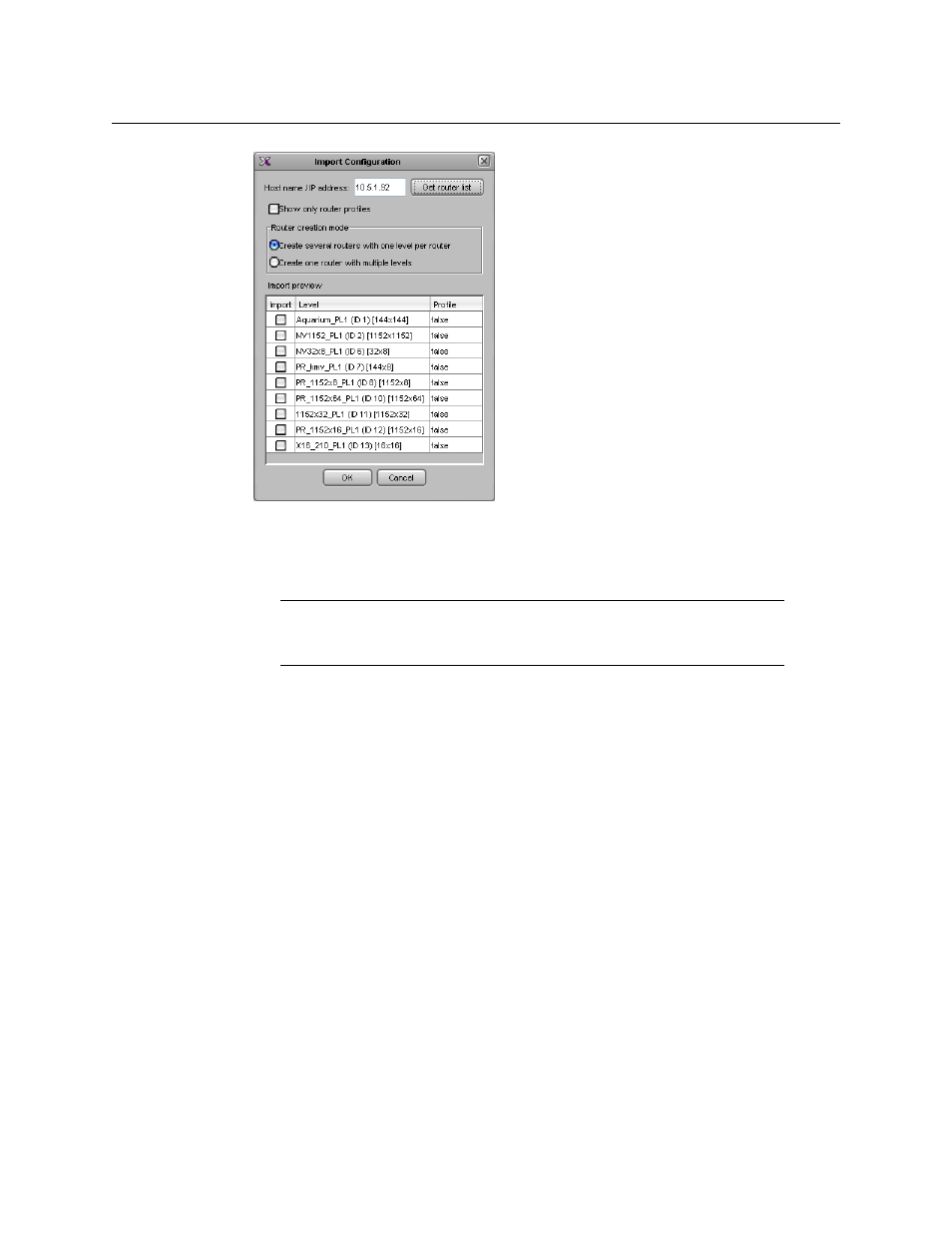

5 Select the router creation mode that best suits your purposes.
• By default, Create several routers with one level per router is selected, which
means that XEdit will create one single-level physical router and one single-level
logical router, for every selected router or profile. This is appropriate from most use
cases.
• If you wish to have only one router with several levels instead, select Create one
router with multiple levels.
6 Select the NV9000 physical levels or profiles you wish to control from your multiviewer,
by clicking the corresponding check boxes.
Note: You can see these NV9000 physical level names and IDs in NV9000-SE
Utilities PhysLevels table. Refer to the NV9000-SE Utilities User’s Guide, for
more information.
