Managing Kaleido-X Systems
Configuring the System Representation

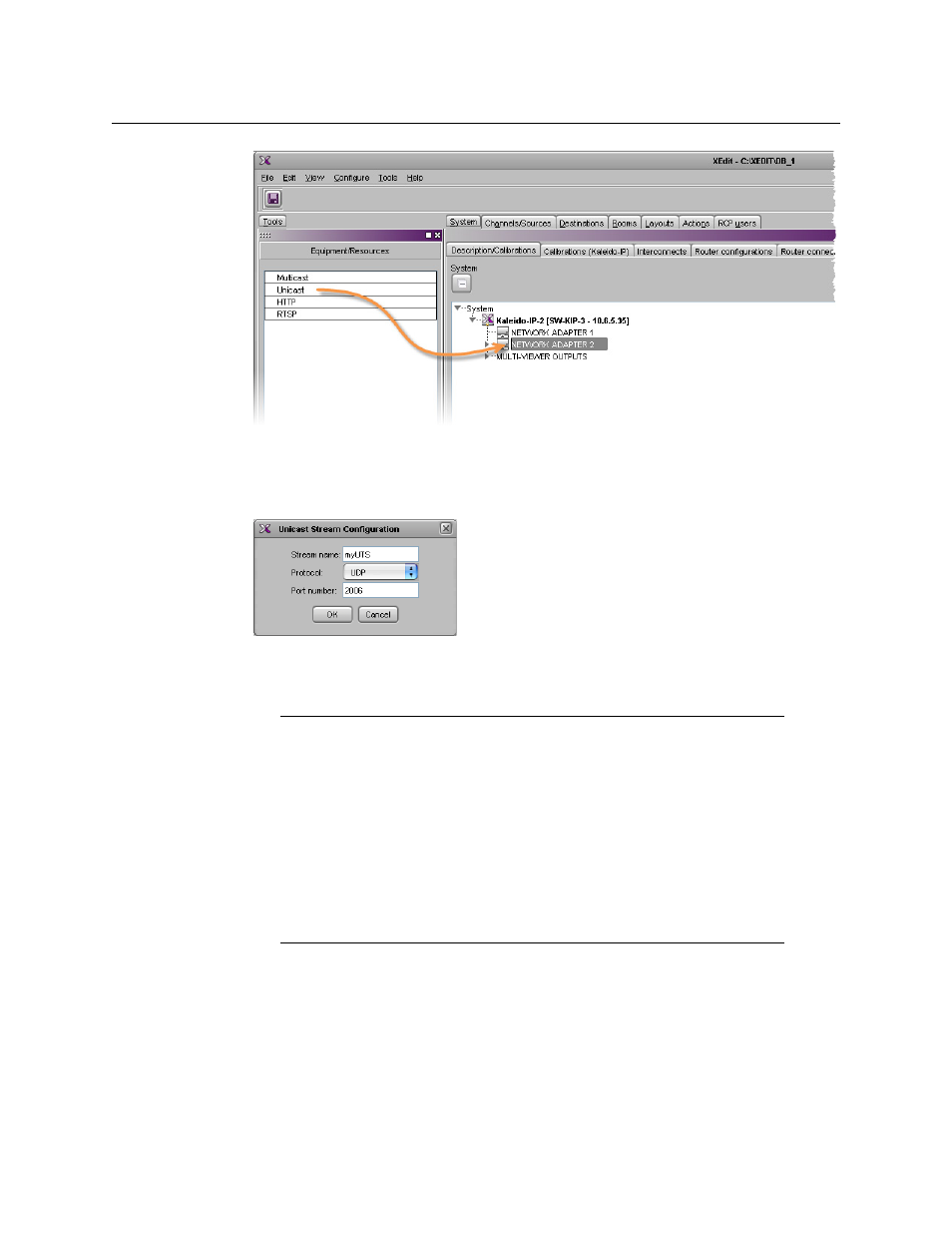

The Unicast Stream Configuration window appears.
4 In Unicast Stream Configuration, replace the default stream name if desired, select the
appropriate protocol (RTP, UDP), type the port number associated with the transport
stream you wish to add, and then click OK.
The Kaleido-IP establishes a connection with the selected stream. All programs that are
part of the stream, and the elementary streams included in these programs,
automatically appear under the transport stream element in the System list.
5 Repeat this procedure until you have added all required unicast transport streams to
your system configuration.
6 On the File menu, click Save. Alternatively, click the Save button on the toolbar.
Changes to the system are saved.
Notes
• The Kaleido-X software supports UTF-8 encoded stream names. The only
characters, which cannot be used in a stream name are:
@ / \ '
and
"
.
• Verify the protocol you selected. Registering an RTP stream as UDP instead
of RTP may result in the decoded video appearing jerky or accelerated on
the monitor wall.
• When adding unicast transport streams do not specify consecutive port
numbers.
• Under the network adapter elements, transport streams are listed in
alphabetical order.
