216
Setting Up Rooms
Configuring Displays
output head level, to support production switchers (or other equipment) connected to the
multiviewer’s HD-SDI outputs.

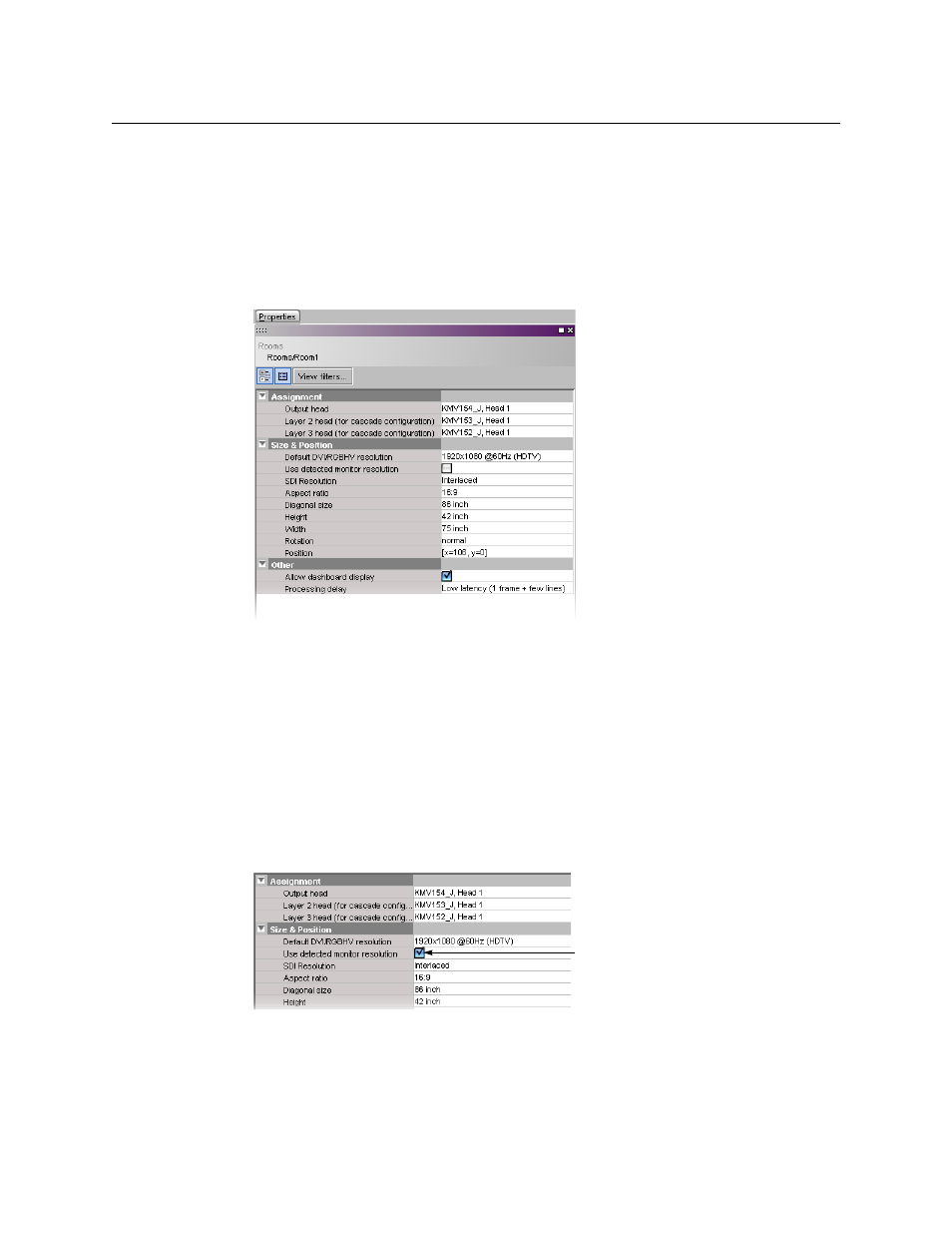

Viewing Room Display Properties
To view the properties for one of the display in a room
1 Click the display whose properties you wish to view.
2 Review the attributes and values that appear in the Properties pane.
Enabling EDID Auto-Detection in XEdit
The monitor EDID auto-detection feature is enabled by default in order to facilitate the
initial setup of a Kaleido-X system. Setting an output head to a specific resolution, from a
multiviewer service panel in iControl (if available), from the monitor wall (Kaleido-IP,
Kaleido-X, Kaleido-X16), or from a Densité controller’s local control panel (Kaleido-MX,
Kaleido-MX 4K, Kaleido-Modular-X, KMV-3901/3911, Kaleido-XQUAD) disables the EDID
auto-detection for this head.
To enable EDID auto-detection for a display
1 In the Rooms tab, click the display you wish to configure.
2 In the Properties pane, select the Use detected monitor resolution check box.
3 On the File menu, click Save.
Select to enable
automatic detection
of EDID information
