Configuring Alarms
Managing Virtual Alarms
3 In the Status logic section, select one of the following three options:
Virtual alarm status is best status among selected alarms (AND) — Choose this
option to have the contribution of the sub-alarms calculated using the optimistic
version of the alarm logic tables.
Virtual alarm status is worst status among selected alarms (OR) — Choose this option
to have the contribution of the sub-alarms calculated using the pessimistic version of
the alarm logic tables. This is the most common option, since it brings changes in the
status of any sub-alarms to the attention of the operators.
Virtual alarm status is critical if selected alarms differ (XOR) — Choose this option to
have the contribution of the sub-alarms calculated using the XOR version of the alarm
logic tables. This causes the virtual alarm to reflect whether or not all of its sub-alarms
have the same status. If all sub-alarms are the same, the virtual alarm will be green.
Otherwise, it will be red.
For a more detailed description of the difference between these options, refer to
“Understanding the Alarm Logic Tables” in the iControl User Guide.
4 In the Text logic section, determine what to include in this virtual alarm’s text attribute
by selecting one of the following three options:
Ignore texts — No text logic (default).
Concatenate texts — Concatenate the text attributes from all sub-alarms.
List errors — List the text attributes from the sub-alarms that are in error.
5 Select the alarm provider you wish to use from the list in the left-hand part of the GSM
alarm browser pane.
6 In the right-hand part of the alarm browser, select the alarms that are to be sub-alarms
of the new virtual alarm, and then click the large down arrow button to transfer them
to the table in the bottom half of the window.

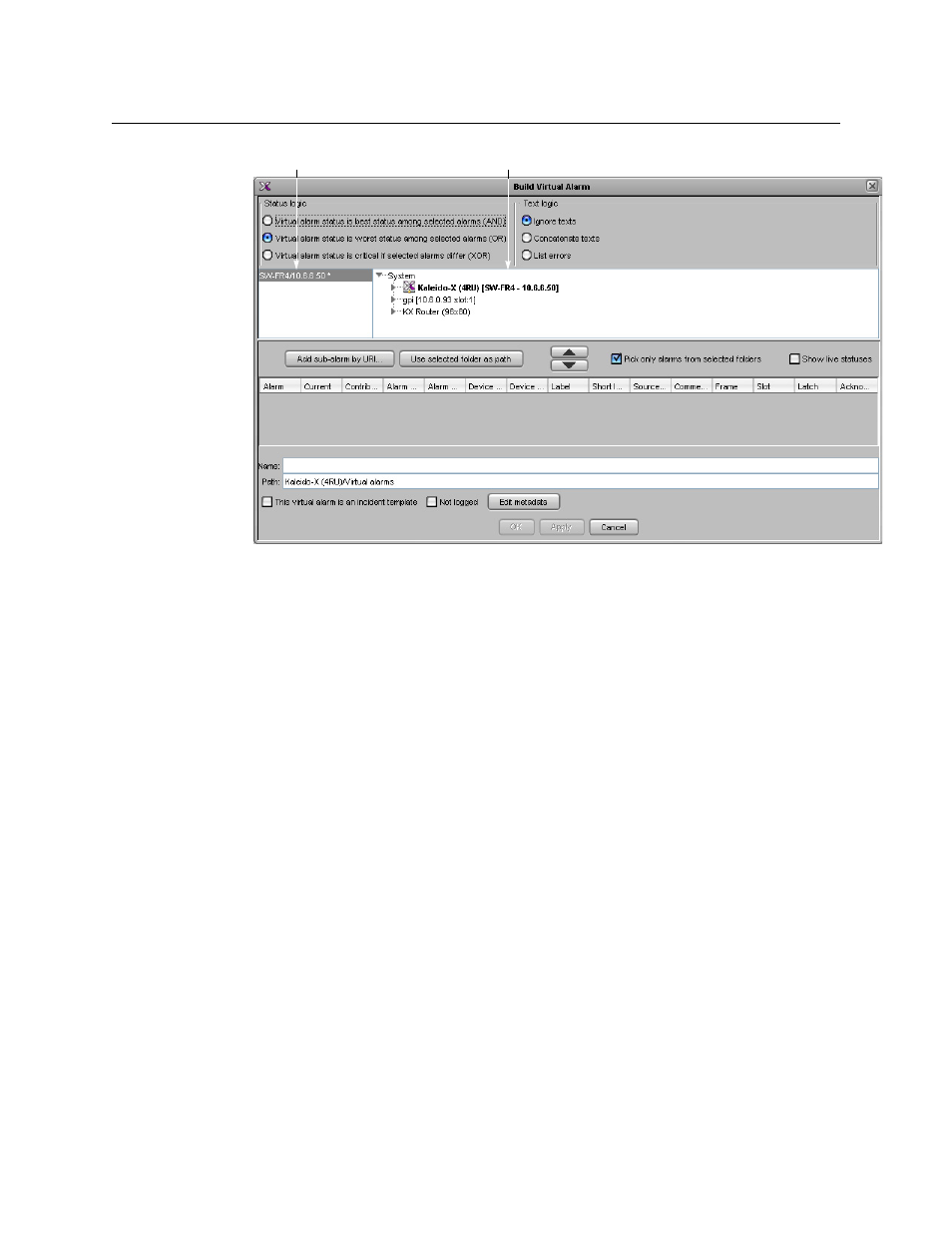

Alarm providers Alarm browser
