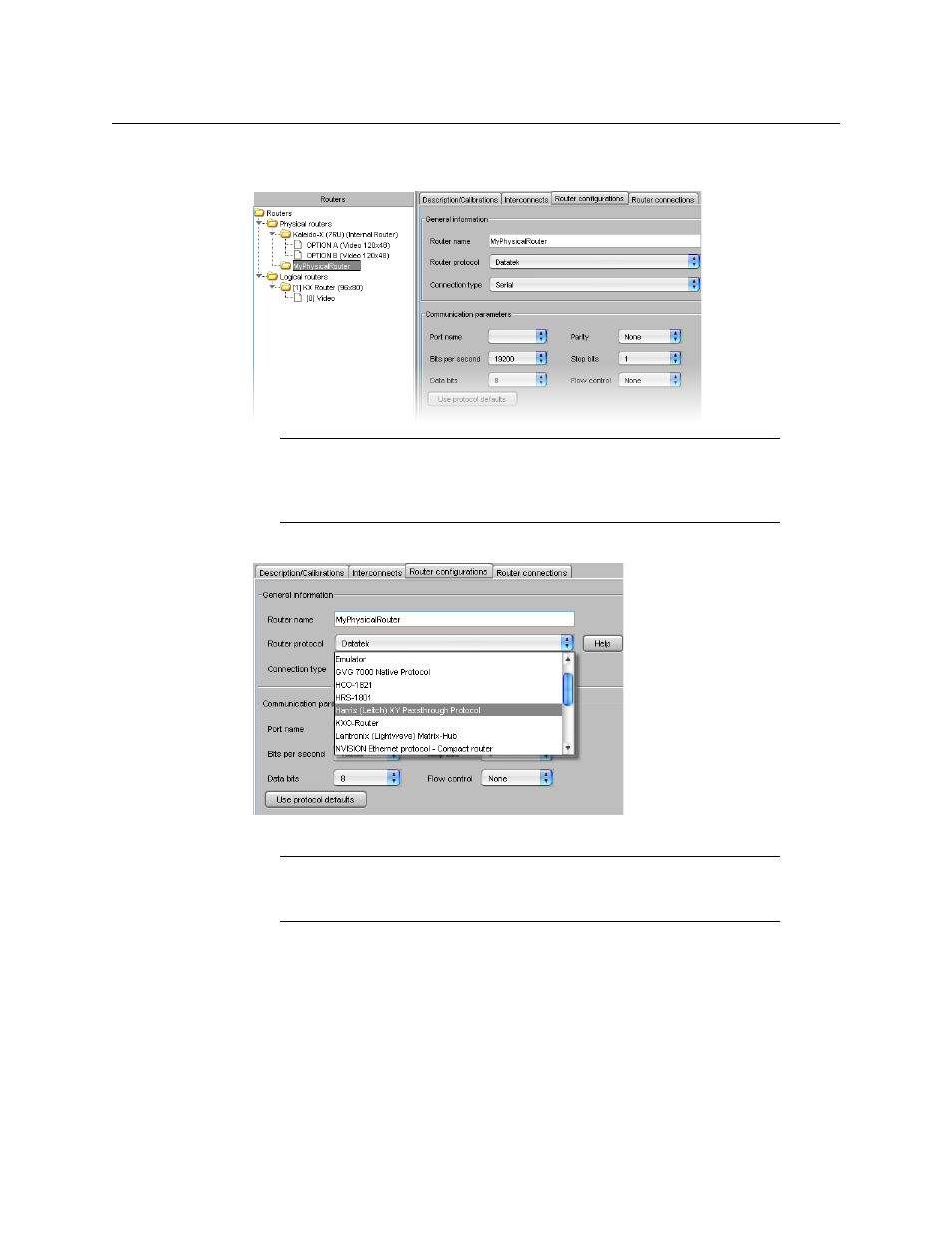

Notice that, in the Routers list, under Physical routers, XEdit has added the new
physical router.
7 Select the appropriate protocol in the Router protocol list.
Once you have chosen a protocol, you can click Help to view tips on its use.
• In the case of a serial connection, you can specify serial communication
parameters: the bit rate (bps), the number of data bits, parity, stop bits and flow
control.
Note: A physical router associated with the multiviewer’s own internal
router module is also predefined. In the case of a multiviewer that does not
have any router card, there will be no entries in the Levels list for this
physical router).
Note: The connection type and serial port specified earlier (see step 5 ), if
any, appear here automatically. These values can be changed, if necessary.
Any changes will also appear in the Properties pane.
