44
Operation of the Monitor Wall
Toggling Safe Area Markers

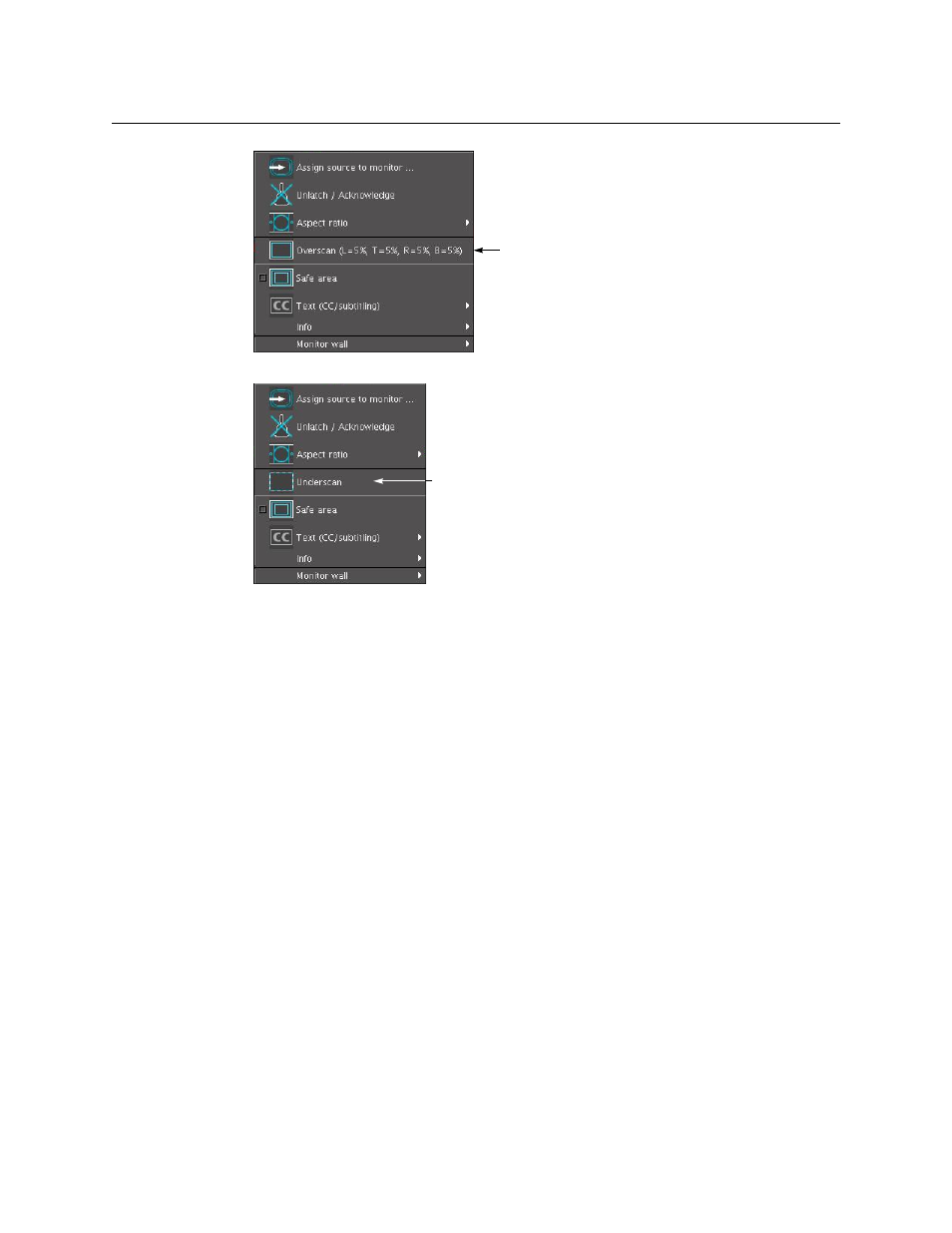

If the video is in overscan mode, then the menu will allow you to change to underscan.
Toggling Safe Area Markers
To toggle the safe area markers on a video using the Kaleido-RCP2
• Move the pointer over the video source, and then press SAFE AREA on the Kaleido-
RCP2. Continue pressing SAFE AREA to toggle the markers.
To toggle the safe area markers on a video using the RCP-200
1 Touch the WALL MOUSE category if it is not already selected, and then move the
pointer over the video source whose cropping mode you wish to change on the
monitor wall.
2 If you have yet to assign the SAFE AREA wall function to one of the programmable
knobs, rotate the knob you wish to program until SAFE AREA is selected, and then press
the knob.
SAFE AREA appears above the programmed knob.
3 Press the SAFE AREA knob.
The safe area markers appear inside the video window. Continue pressing SAFE AREA
to toggle the markers.
To toggle the safe area markers on a video using the mouse
1 Right-click the video source, and then click Safe Area on the menu.
Overscan
Underscan
