420
Tally Interface Devices &Timer Systems
Kahuna Production Switcher
7 On the Kahuna switcher’s GUI panel, press the PERIPH button
The Peripherals menu appears.
8 Touch the Tally Control button on the screen to bring up the Peripherals – Tally
Protocol menu.
9 Select the RS-422 port that is connected to the multiviewer, and set its serial protocol
options as follows:
To set up the multiviewer
1 Open XEdit.
2 In the main window, click the System tab, and then click Description/Calibrations on
the second-level tab bar. The main pane displays the System hierarchical list, and the
Tools pane displays the equipment library when the root of the System list is selected.
3 Drag the Kahuna production switcher device from the equipment library onto the root
of the System hierarchical list. Alternatively, right-click the list root, and then click Insert
Kahuna on the menu.

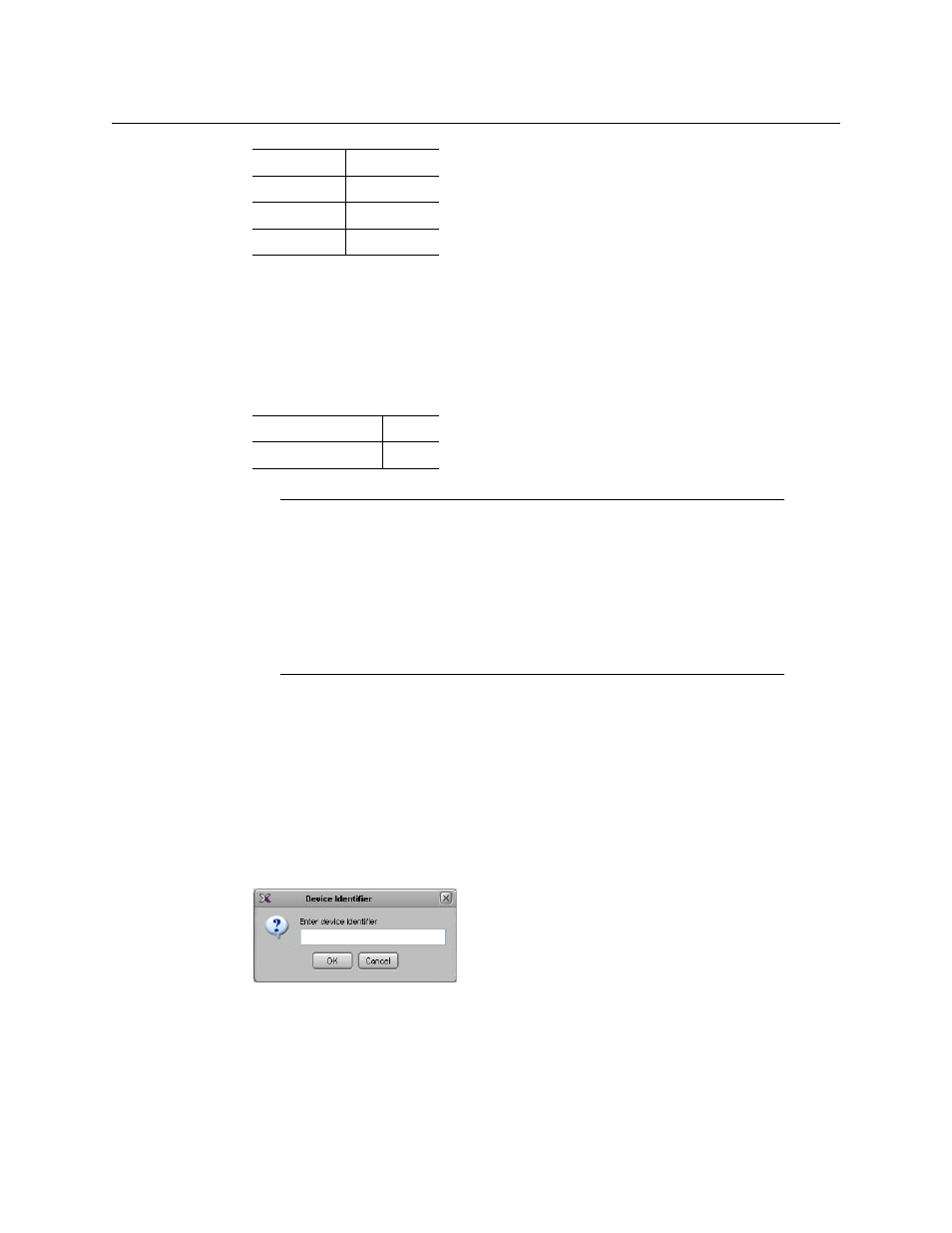

A window appears, prompting you for a device identifier.
4 Type a name for the Kahuna production switcher, and then click OK.
5 Click the Interconnects tab.
6 Position the pointer over the multiviewer icon, then click and drag towards the Kahuna
production switcher icon.
A line representing the connection between the multiviewer and the device appears.
Parity NONE
Data Bits 8
Stop bits 1
Port Type Master
Extension Enable On
Full Table Enable On
Notes
• Refer to the Kahuna User Instruction Manual for further details on setting up
the port protocols and tally protocol parameters (see
https://kahuna.snellgroup.com/kahunaclub/kahunacare/docu
ments.php
).
• Although it is possible to define “user configuration” source names on the
Kahuna switcher, these are not transmitted over the serial tally interface.
The switcher only transmits the “engineering configuration” source names.
