315
Kaleido-X
User’s Manual

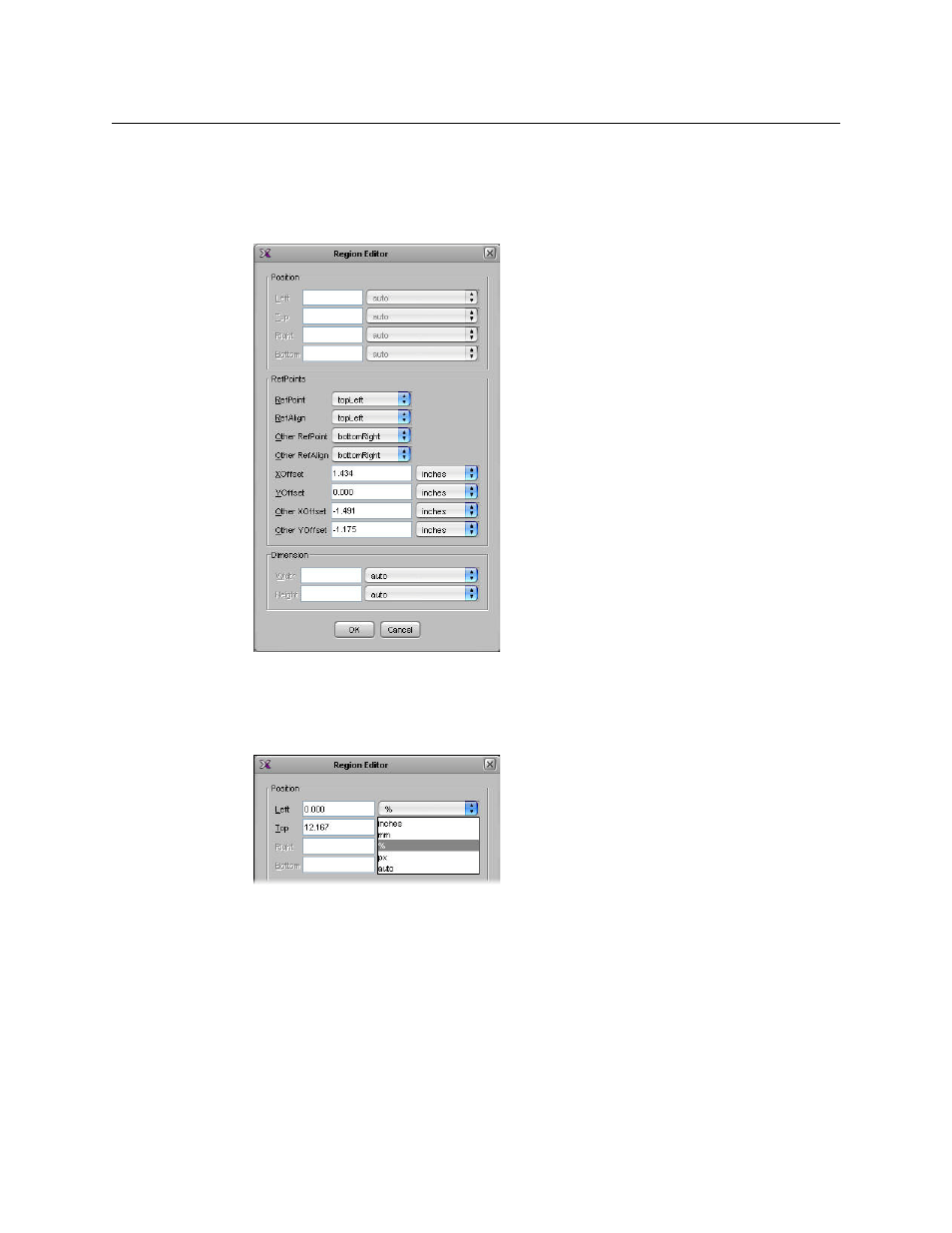

To open the region editor
1 Click the monitor whose properties you wish to see.
2 In the Properties pane, click the Bounds box, under Size & Position.
Click the button that appeared inside the box to open the Region Editor window.
Configuring a Monitor’s Position Using the Region Editor
To set a monitor’s position on the layout
1 For each position, first select the appropriate unit.
2 Type values in the Left, Top, Right, and Bottom boxes, relative to the upper-left corner
of the display.
3 Click OK to close the editor.
4 On the File menu, click Save.
Configuring a Monitor’s Dimensions Using the Region Editor
To configure a monitor’s dimensions
1 For each dimension, first select the appropriate unit.
