2 In the Properties pane, set the reference level to the appropriate value (in dBFS), using
the Zero VU slider, under Calibration.
Alternatively, type the value directly in the Zero VU box.
Calibrating Zero VU Reference Level for an ABT Audio Source
To calibrate an ABT audio source

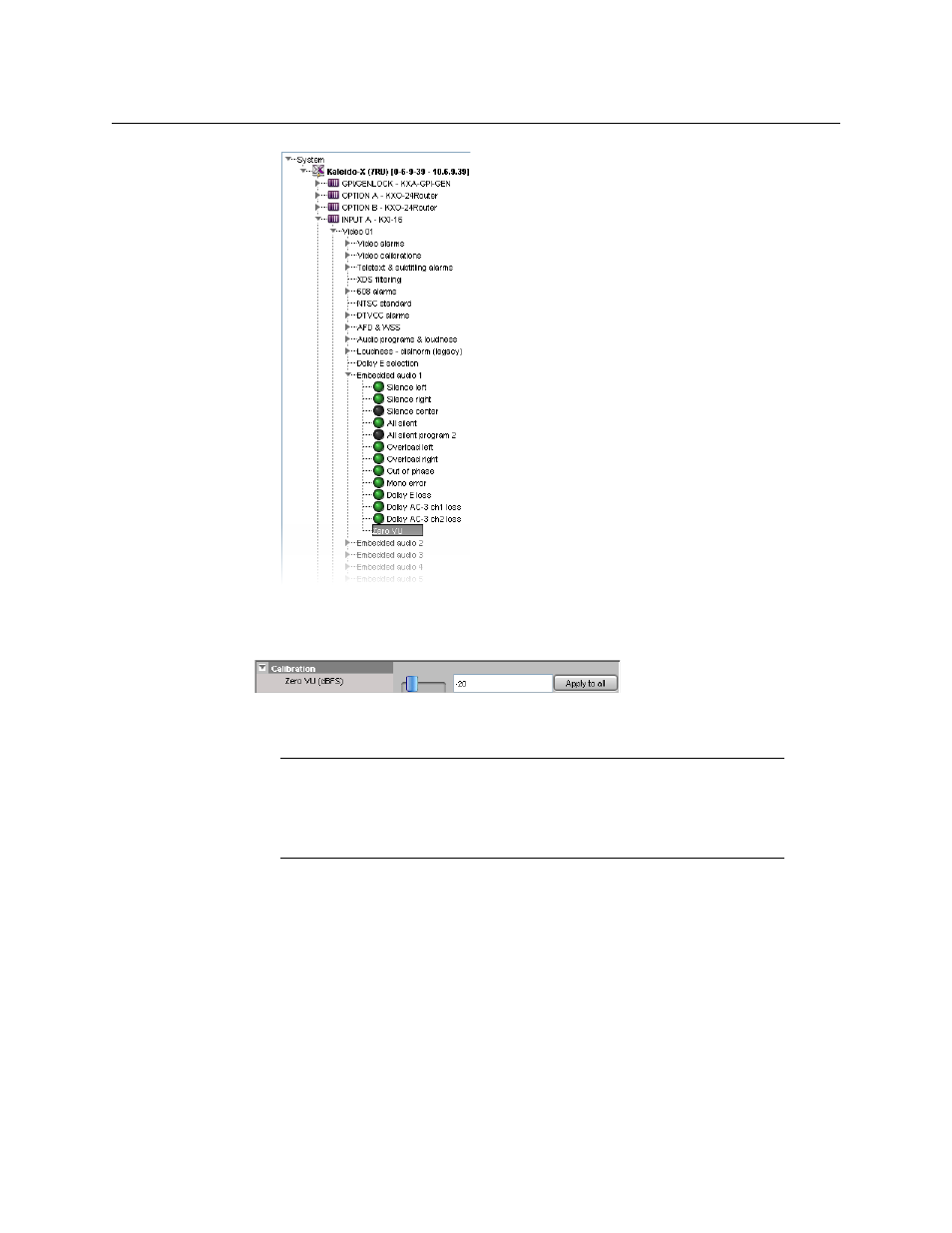

1 In the main window, click the System tab, and then click Description/Calibrations on
the second-level tab bar.
A hierarchical list representing the current system appears.
2 In the list, expand the multiviewer whose inputs you wish to calibrate.
3 Expand the appropriate input, its ABT element, and then one of the ABT’s audio
elements. Select Zero VU.
Notes
• The KMV-3901/3911 only supports embedded audio, not discrete audio
sources from an ABT.
• This section does not apply to the Kaleido-IP.
