157
Kaleido-X
User’s Manual
GPI/Genlock Calibrations
You can define actions that change the state of a GPI output line, and assign them to a
monitor. GPI lines configured as outputs can have their ON/OFF state set manually in XEdit,
for test purposes.

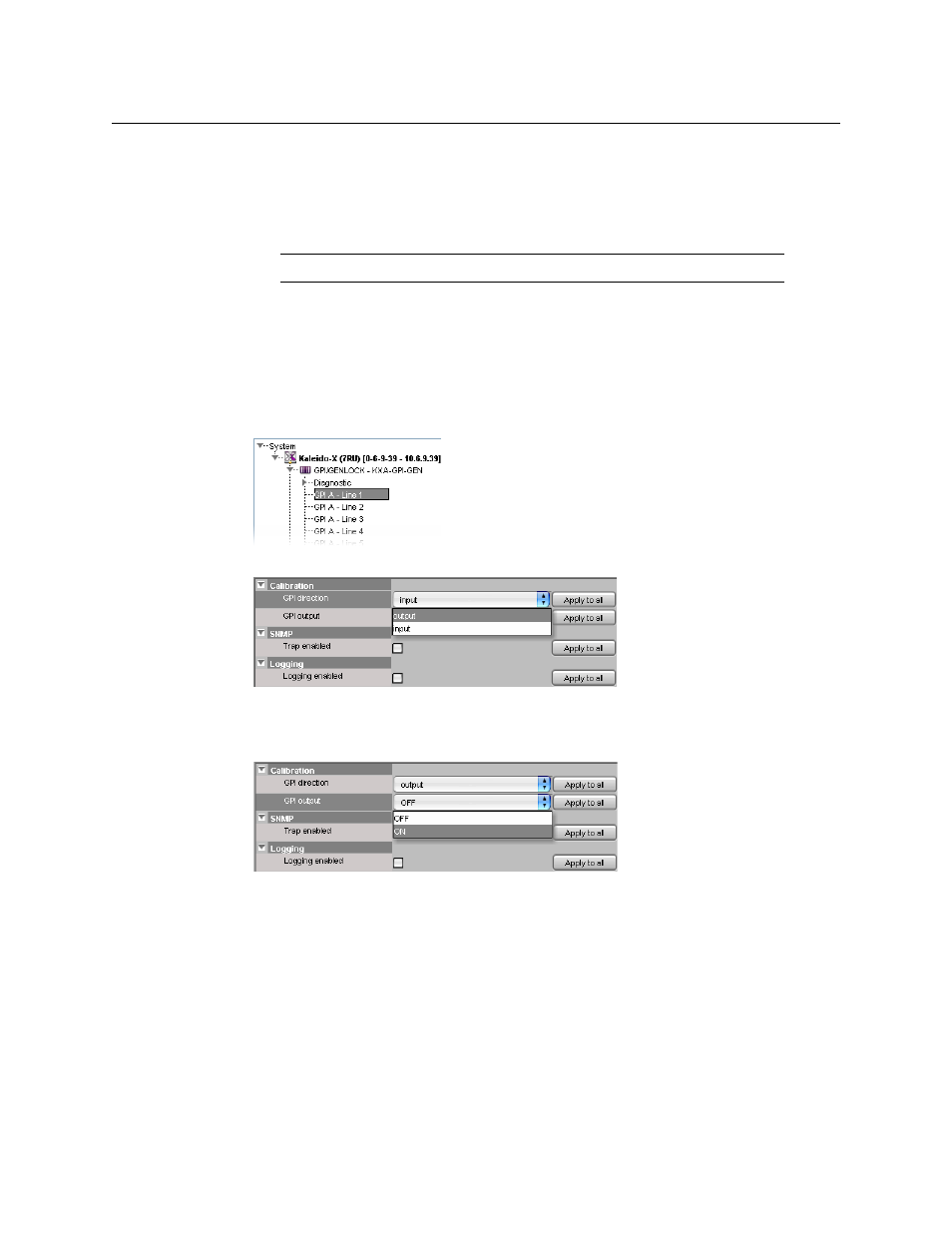

To configure a GPI line’s direction as an output
1 In the main window, click the System tab, and then click Description/Calibrations on
the second-level tab bar.
A hierarchical list representing the current system appears.
2 In the list, expand the multiviewer you wish to calibrate.
3 Expand the GPI/GENLOCK module, and then click the desired GPI line element.
4 In the Properties pane, click the GPI direction box, and then select output from the list.
5 Click Apply to all, if every GPI line in your system is to be configured as an output.
6 To set this GPI output line’s ON/OFF state set manually for test purposes, click the GPI
output box, and then select either ON or OFF from the list.
Note: This section applies to Kaleido-X multiviewers, only.
