Section 25 Electrical Characteristics
Rev. 4.00 Sep. 14, 2005 Page 918 of 982
REJ09B0023-0400
V
CC
min
t
RESP/MW
t
RESP/MS
t
OSC1
V
CC
RESETP
RESETM
CKIO,
Internal clock
Note: Oscillation settling time when the internal oscillator is used.
Oscillation settling time

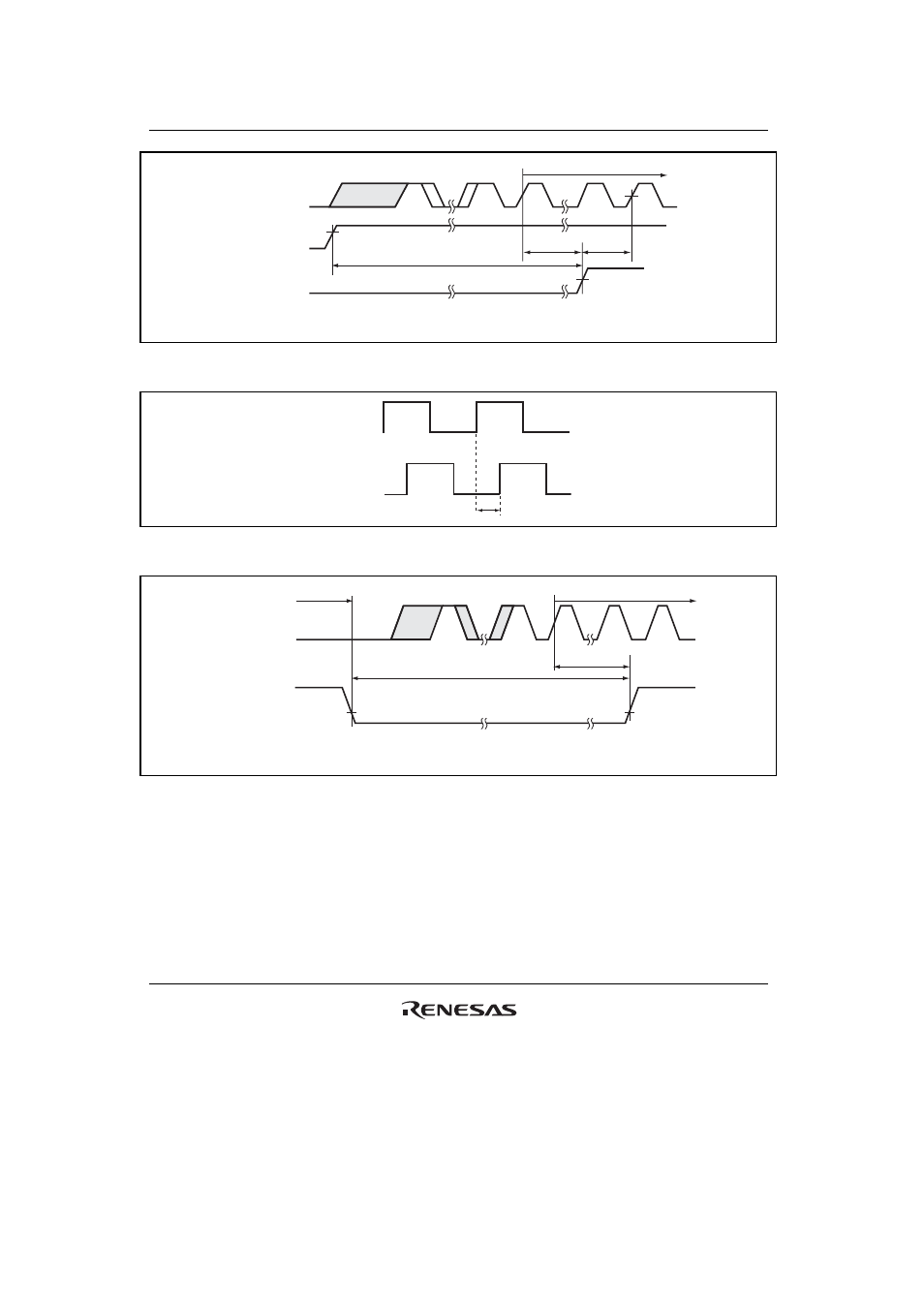

Figure 25.5 Oscillation Settling Timing (Power-On)
CKIO
CKIO2
t
phckio2
Figure 25.6 Phase Difference between CKIO and CKIO2
CKIO,
Internal clock
Oscillation settling time Standby period
t
OSC2
t
RESP/MW
RESETP
RESETM
Note: Oscillation settling time when the internal oscillator is used.
Figure 25.7 Oscillation Settling Timing (Standby Mode Canceled by Reset)
