Section 18 Multi-Function Timer Pulse Unit (MTU)

Rev. 4.00 Sep. 14, 2005 Page 622 of 982

REJ09B0023-0400

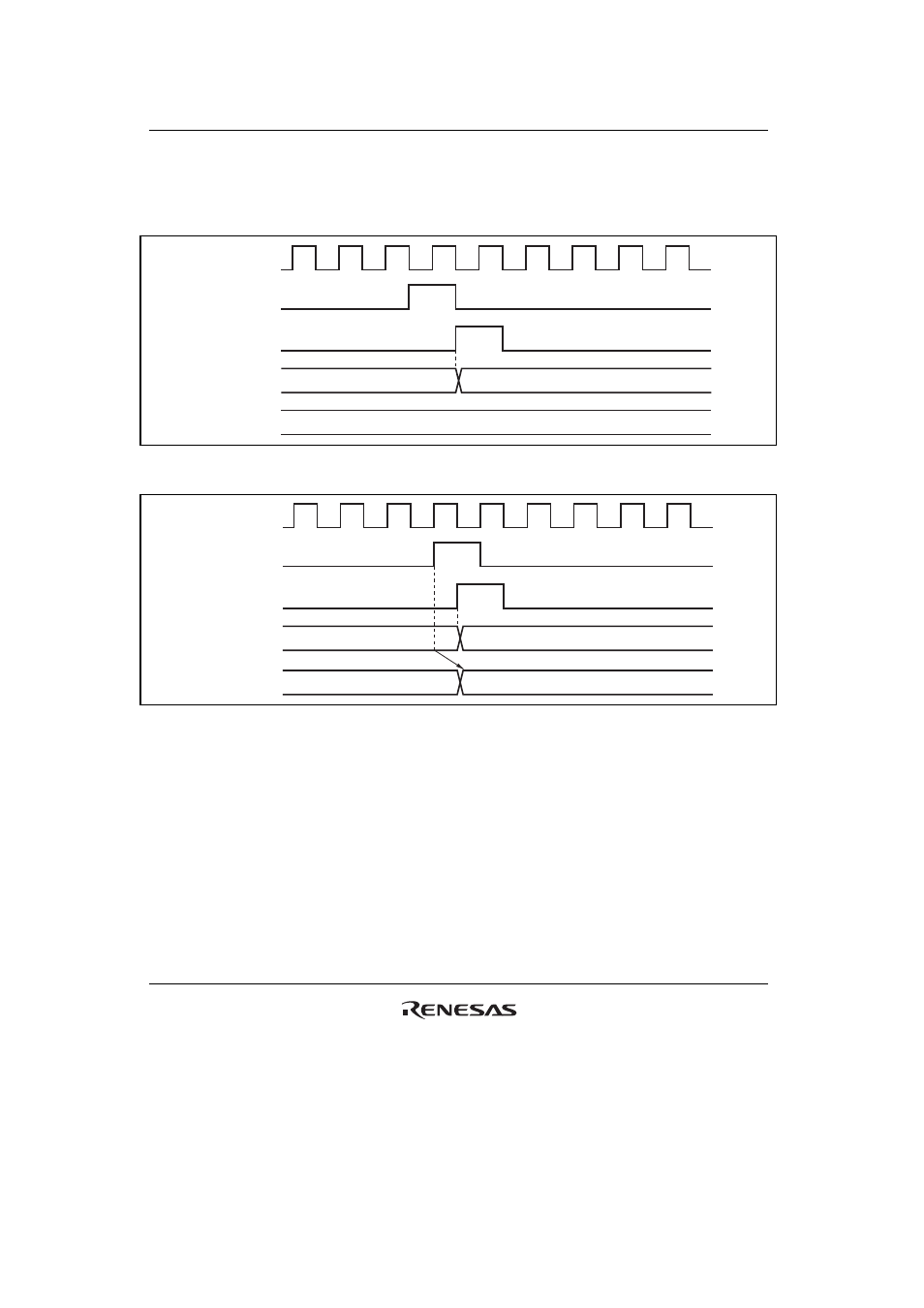

Timing for Counter Clearing by Compare Match/Input Capture: Figure 18.60 shows the
timing when counter clearing on compare match is specified, and figure 18.61 shows the timing
when counter clearing on input capture is specified.

TCNT

Counter
clear signal

Compare
match signal

TGR

H'0000

Figure 18.60 Counter Clear Timing (Compare Match)

TCNT

Counter clear
signal

Input capture
signal

TGR

H'0000

Figure 18.61 Counter Clear Timing (Input Capture)
