Section 18 Multi-Function Timer Pulse Unit (MTU)
Rev. 4.00 Sep. 14, 2005 Page 614 of 982
REJ09B0023-0400
External input TIOC0A pin
TIOC0B pin
TIOC0C pin
TIOC3B pin
TIOC3D pin
TIOC4A pin
TIOC4C pin
TIOC4B pin
TIOC4D pin
6-phase output
When BCD = 1, N = 1, P = 1, FB = 0, output active level = high

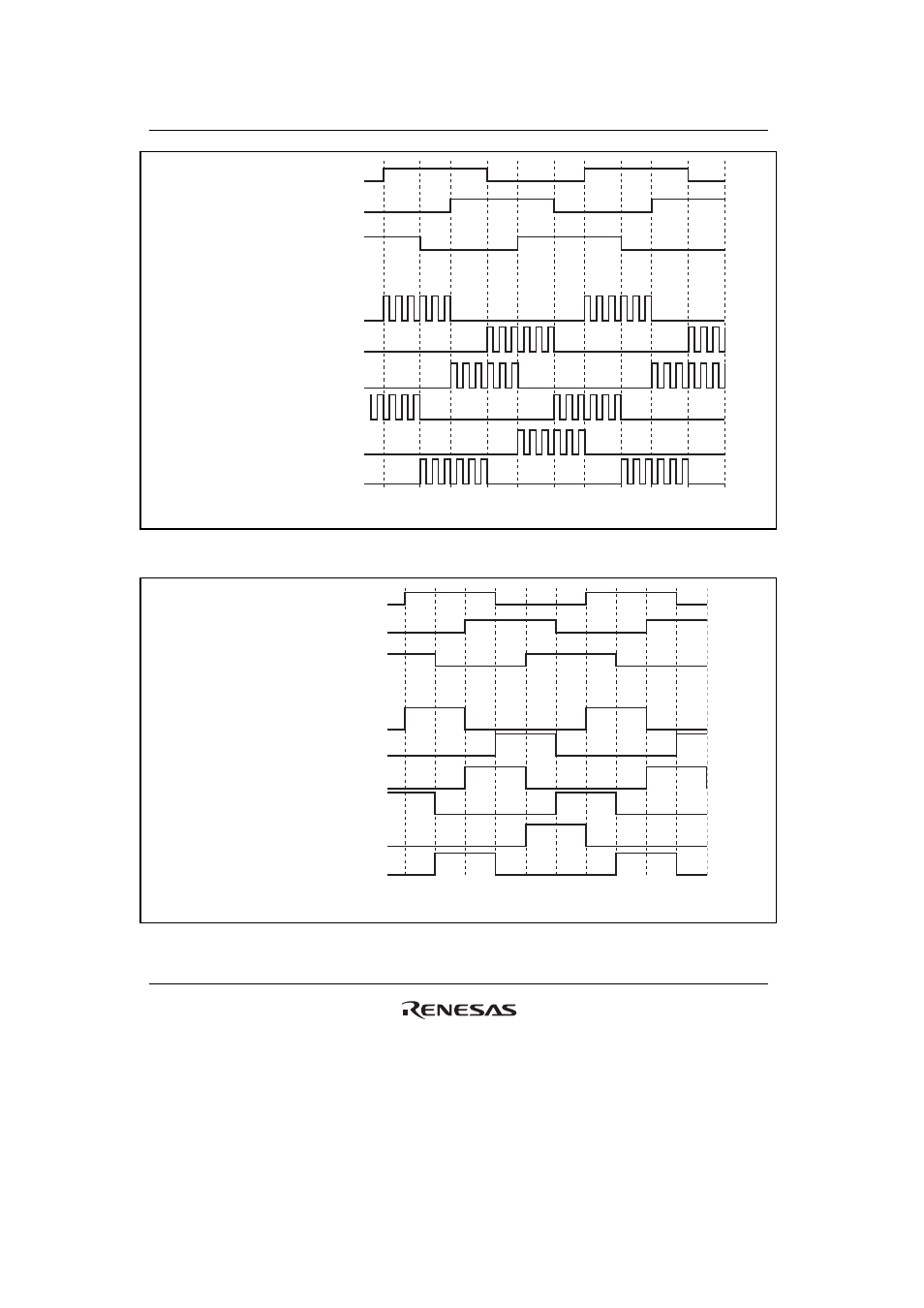

Figure 18.51 Example of Output Phase Switching by External Input (2)
TGCR UF bit
VF bit
WF bit
TIOC3B pin
TIOC3D pin
TIOC4A pin
TIOC4C pin
TIOC4B pin
TIOC4D pin
6-phase output
When BCD = 1, N = 0, P = 0, FB = 1, output active level = high
Figure 18.52 Example of Output Phase Switching by Means of UF, VF, WF Bit Settings (1)
