Figure 11.1 shows a block diagram of the ubc, Figure 11.1 block diagram of user break controller – Renesas SH7641 User Manual
Page 292
Section 11 User Break Controller (UBC)
Rev. 4.00 Sep. 14, 2005 Page 242 of 982
REJ09B0023-0400

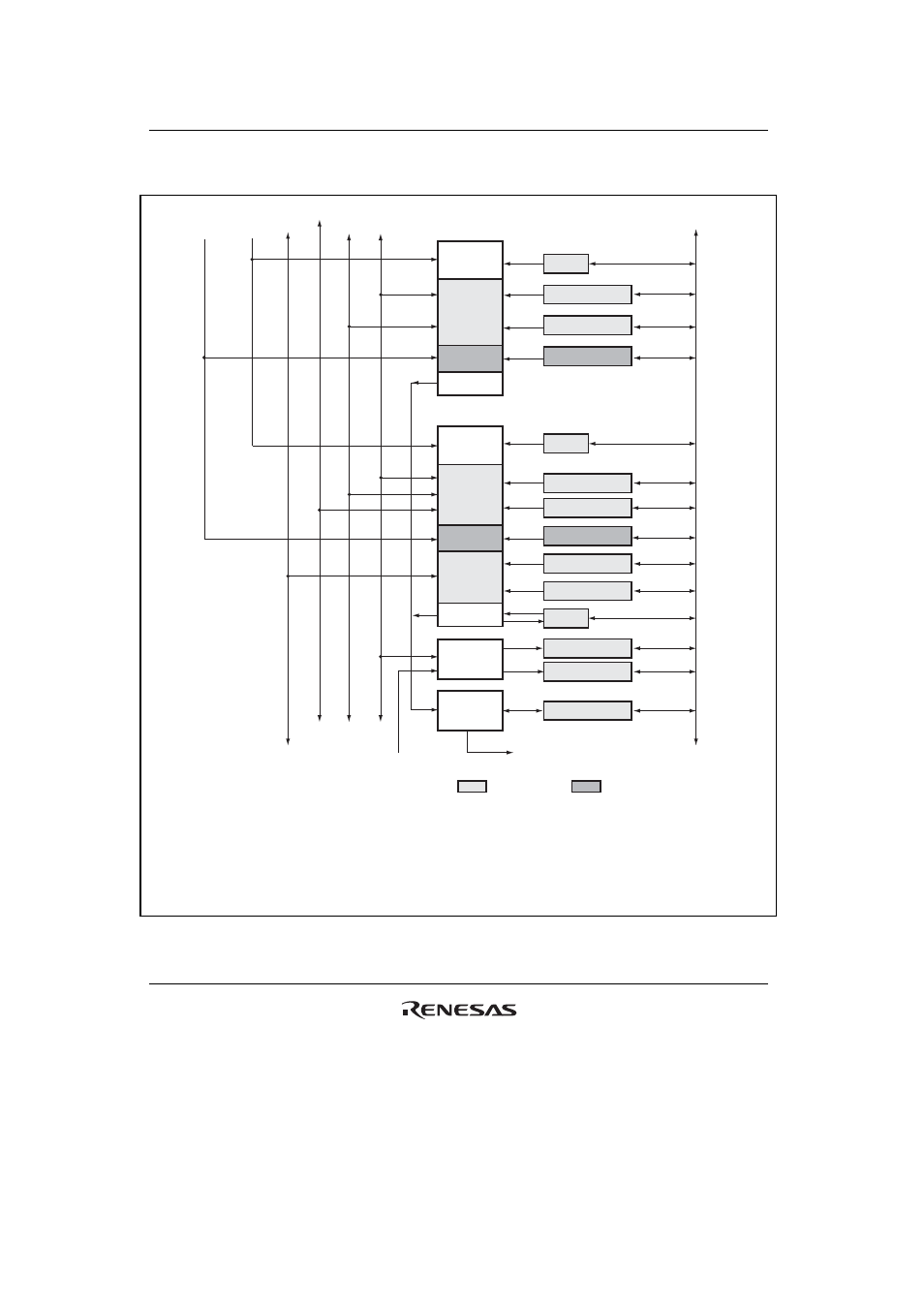

Figure 11.1 shows a block diagram of the UBC.
BBRA
BARA
BAMRA
CPU state
signals
XAB/YAB
IAB
LAB
Internal bus
Access
comparator
Address
comparator
Channel A
Access
comparator
Address
comparator
Data
comparator
PC trace
CONTROL
Channel B
BBRB
BETR
BASRA
BASRB
BARB
BAMRB
BBRB
BDMRB
BRSR
BRDR
BRCR
User break request
UBC Location
CCN Location
LDB/IDB/
XDB/YDB
[Legend]
BBRA:
BARA:
BAMRA:
BASRA:
BBRB:
BARB:
BAMRB:
BASRB:
BDRB:
BDMRB:
BETR:
BRSR:
BRDR:
BRCR:
Break bus cycle register A
Break address register A
Break address mask register A
Break ASID register A
Break bus cycle register B
Break address register B
Break address mask register B
Break ASID register B
Break data register B
Break data mask register B
Break execution times register
Branch source register
Branch destination register
Break control register
Access
Control
ASID
comparator
ASID
comparator
ASID
Figure 11.1 Block Diagram of User Break Controller
