Section 12 Bus State Controller (BSC)
Rev. 4.00 Sep. 14, 2005 Page 330 of 982
REJ09B0023-0400
When the WM bit in CSnWCR is cleared to 0, the external wait input
WAIT signal is also
sampled.
WAIT pin sampling is shown in figure 12.10. A 2-cycle wait is specified as a software
wait. The
WAIT signal is sampled on the falling edge of CKIO at the transition from the T1 or Tw
cycle to the T2 cycle.
T1
CKIO
A25 to A0
CSn
RD/ WR
RD
D31 to D0
WEn
D31 to D0
WAIT
Tw Tw Twx T2
Read
Write
BS
Wait states inserted
by WAIT signal
DACKn*
Note: * The waveform for DACKn is when active low is specified.

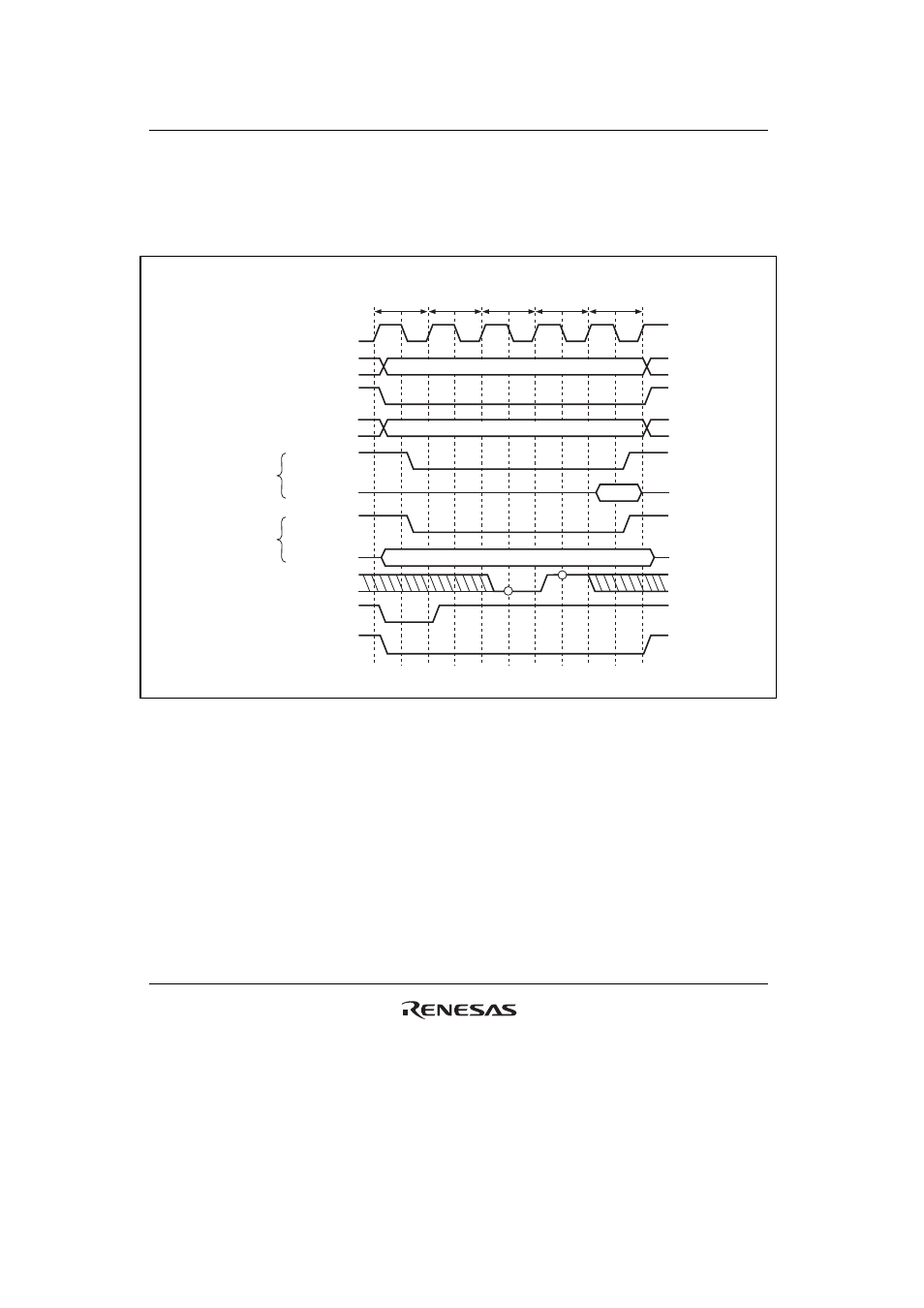

Figure 12.10 Wait State Timing for Normal Space Access
(Wait State Insertion Using
WAIT Signal)
