18.7.6 Conflict between TGR Write and Compare Match
When a compare match occurs in the T2 state of a TGR write cycle, the TGR write is executed
and the compare match signal is generated.

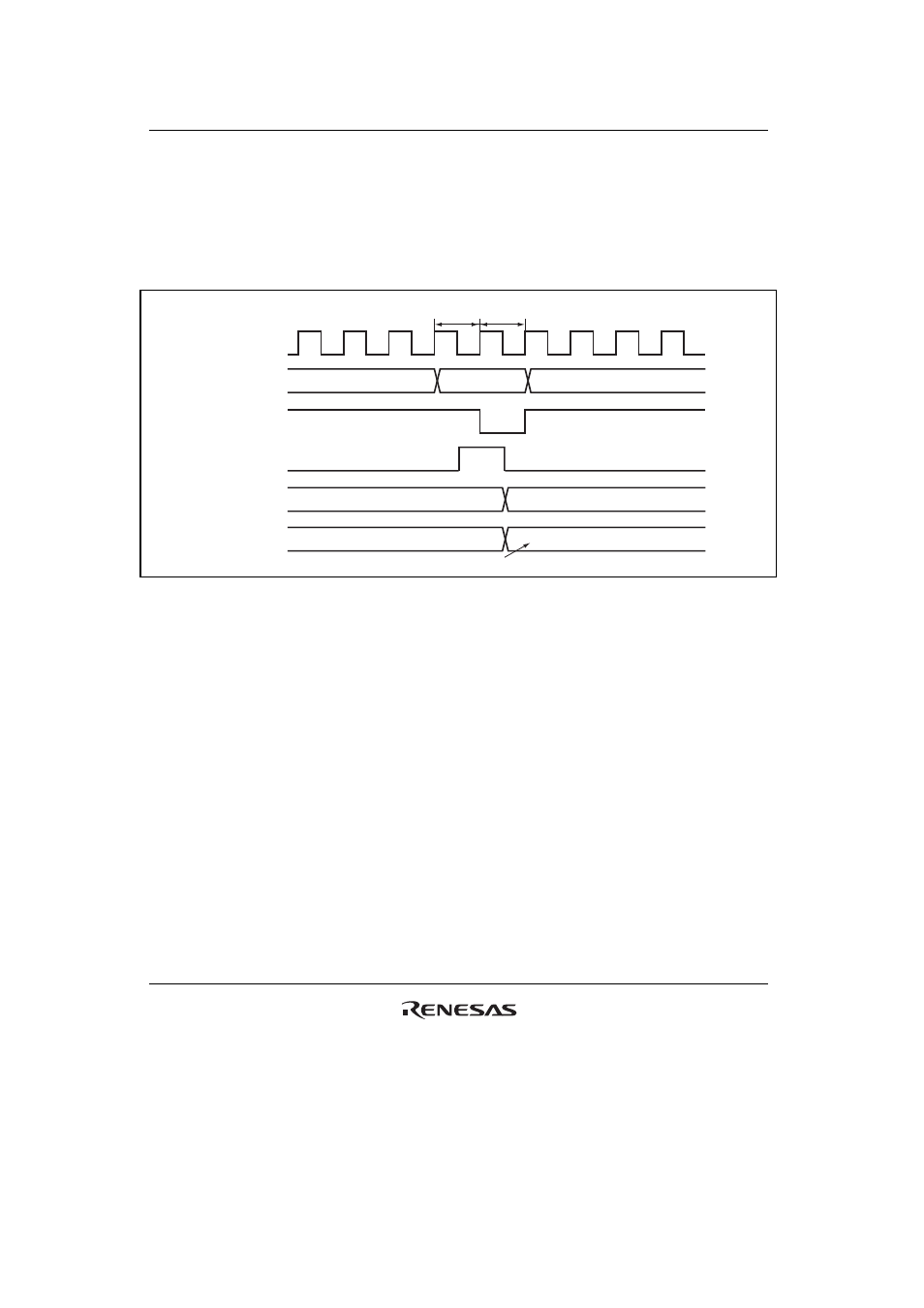

Figure 18.73 shows the timing in this case.
Compare
match signal
Write signal
Address
P φ
TGR address
TCNT
TGR write cycle
T1 T2
N M
TGR write data
TGR
N N+1
Figure 18.73 Conflict between TGR Write and Compare Match
18.7.7 Conflict between Buffer Register Write and Compare Match
If a compare match occurs in the T1 state of a TGR write cycle, the data that is transferred to TGR
by the buffer operation differs depending on channel 0 and channels 3 and 4: data on channel 0 is
that after write, and on channels 3 and 4, before write.
Figures 18.74 and 18.75 show the timing in this case.
