Section 19 Serial Communication Interface with FIFO (SCIF)
Rev. 4.00 Sep. 14, 2005 Page 745 of 982
REJ09B0023-0400
0 1 2 3 4 5 6 7 8 9 10 1112 1314 15 0 1 2 3 4 5 6 7 8 9 10 1112 1314 15 0 1 2 3 4 5
D0 D1
16 clocks
8 clocks
Base clock
Receive data
(RxD)
Start bit
–7.5 clocks +7.5 clocks
Synchronization
sampling timing
Data sampling
timing

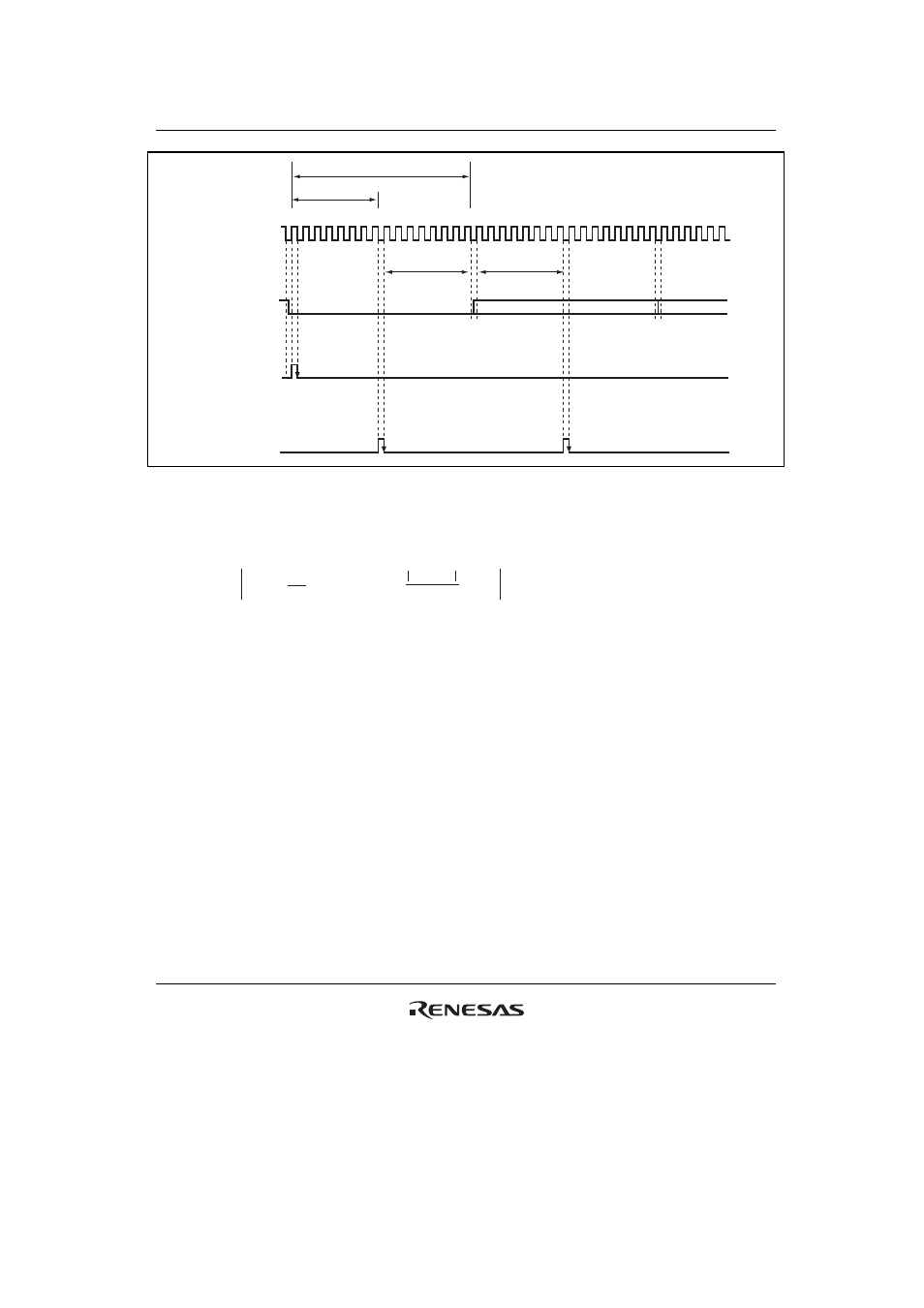

Figure 19.19 Receive Data Sampling Timing in Asynchronous Mode
The receive margin in asynchronous mode can therefore be expressed as shown in equation 1.
Equation 1:
M = (0.5 - ) = (L - 0.5) F - (1+F)
× 100 %
1
2N
D - 0.5
N
Where: M: Receive margin (%)
N: Ratio of clock frequency to bit rate (N = 16)
D: Clock duty cycle (D = 0 to 1.0)
L: Frame length (L = 9 to 12)
F: Absolute deviation of clock frequency
From equation 1, if F = 0 and D = 0.5, the receive margin is 46.875%, as given by equation 2.
Equation 2:
When D = 0.5 and F = 0:
M
= (0.5 – 1/(2 Ч 16)) Ч 100%
= 46.875%
This is a theoretical value. A reasonable margin to allow in system designs is 20% to 30%.
