Section 12 Bus State Controller (BSC)

Rev. 4.00 Sep. 14, 2005 Page 274 of 982

REJ09B0023-0400

12.3.2 Shadow

Area

Areas 0, 2 to 4, 5A, 5B, 6A, and 6B are decoded by addresses A28 to A26, which correspond to
areas 000 to 110. Address bits 31 to 29 are ignored. This means that the range of area 0 addresses,
for example, is H'00000000 to H'03FFFFFF, and its corresponding shadow space is the address
space between P0 and P3 obtained by adding to it H'20000000

× n (n = 1 to 6). The address range

for area 7 is H'1C000000 to H'1FFFFFFF. The address space H'1C000000 + H'20000000

× n–

H'1FFFFFFF

+ H'20000000 × n (n = 0 to 7) corresponding to the area 7 shadow space is reserved,

so do not use it.

Area P4 (H'E0000000 to H'EFFFFFFF) is an I/O area and is assigned for internal register
addresses.

Area 0 (CS0)

H'00000000

H'20000000

H'40000000

H'60000000

H'80000000

H'A0000000

H'C0000000

H'E0000000

Area 1 (Internal I/O)

Area 2 (CS2)

Area 3 (CS3)

Area 4 (CS4)

Area 5A (CS5A)

Area 6A (CS6A)

Area 7 (Reserved)

Address spacesby A28 to A0

Address Spaces by A31 to A0

Area 5B (CS5B)

Area 6B (CS6B)

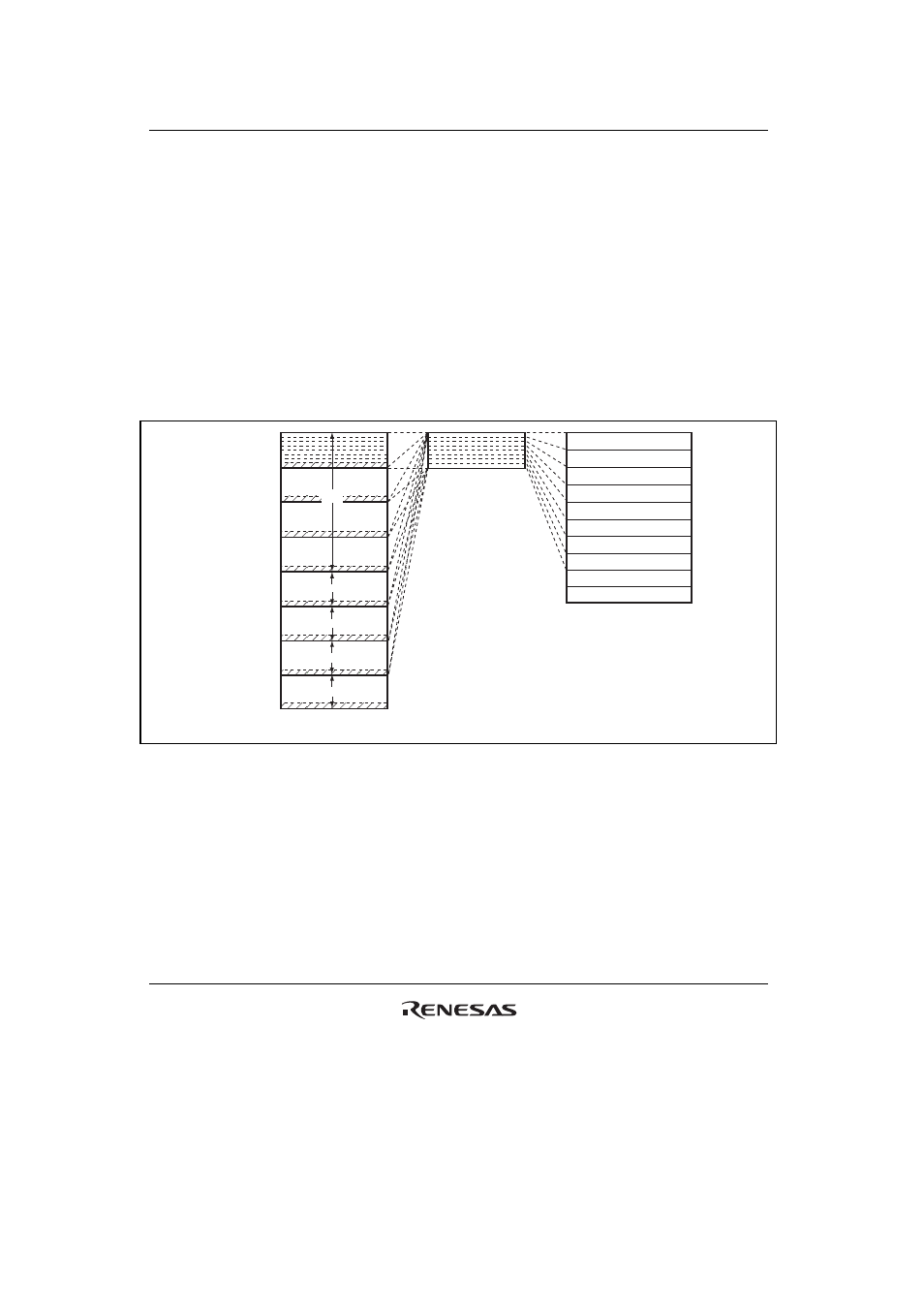

Figure 12.2 Address Space
