Section 4 Clock Pulse Generator (CPG)

Rev. 4.00 Sep. 14, 2005 Page 144 of 982

REJ09B0023-0400

CKIO

CKIO2

PLL circuit 1

(

Ч1, 2, 3, 4)

Ч1

Ч1/2

Ч1/3

Ч1/4

Clock pulse generator

Divider

Internal clock
(I

φ)

Internal bus

Bus interface

FRQCR:
STBCR:
STBCR2:
STBCR3:
STBCR4:

[Legend]

Frequency control register
Standby control register
Standby control register 2
Standby control register 3
Standby control register 4

Peripheral clock
(P

φ)

Bus clock
(B

φ = CKIO)

EXTAL

MD2
MD0

XTAL

FRQCR

STBCR

STBCR2

STBCR3

STBCR4

CPG control unit

Clock frequency

control circuit

Standby control circuit

PLL circuit 2

(

× 2,4)

Crystal

oscillator

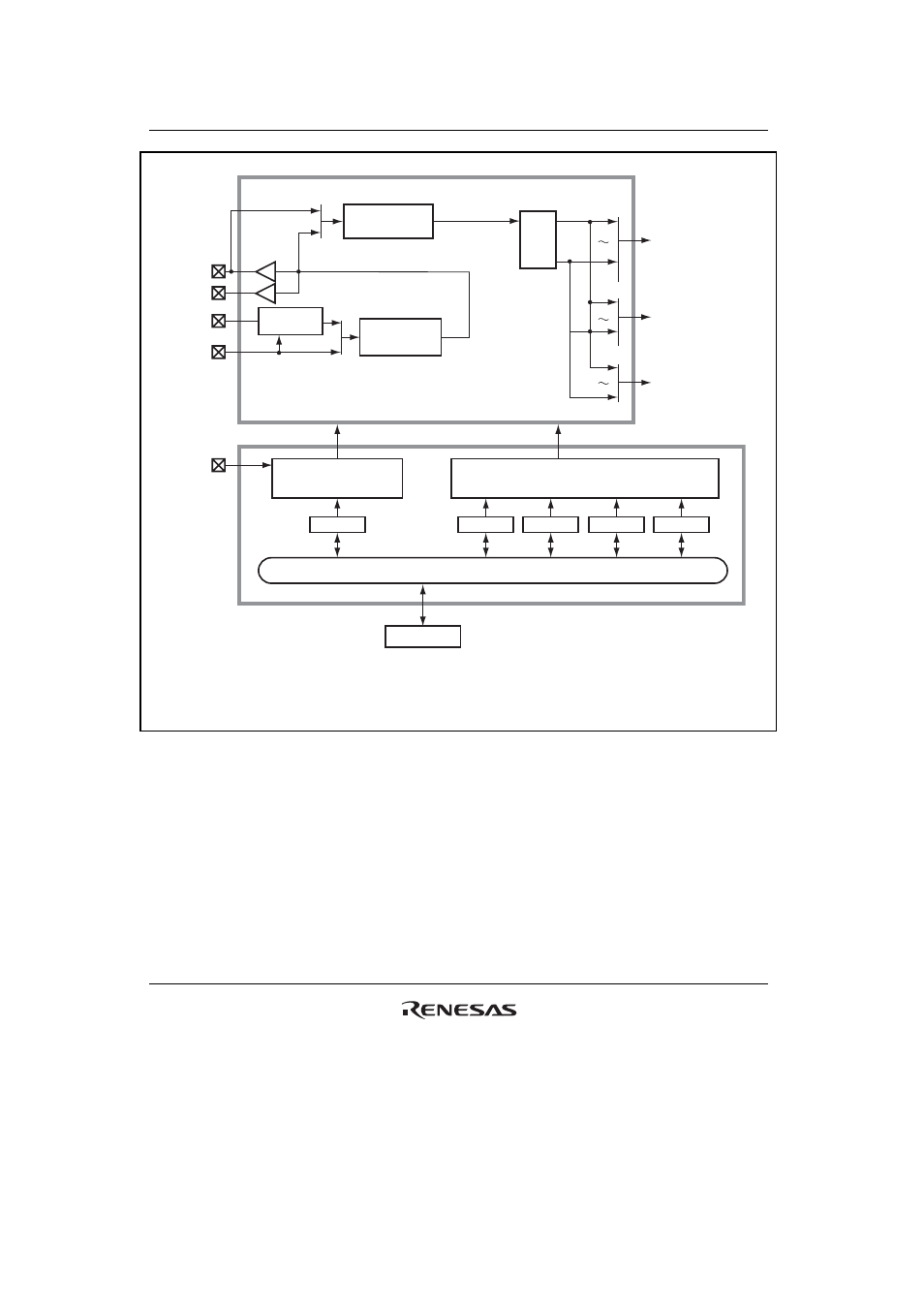

Figure 4.1 Block Diagram of Clock Pulse Generator
