Section 18 Multi-Function Timer Pulse Unit (MTU)
Rev. 4.00 Sep. 14, 2005 Page 610 of 982
REJ09B0023-0400
TGRA_3
TCDR
TDDR
H'0000
Positive phase
Negative phase
T2 period T1 period T1 period
a b
c b' d a'

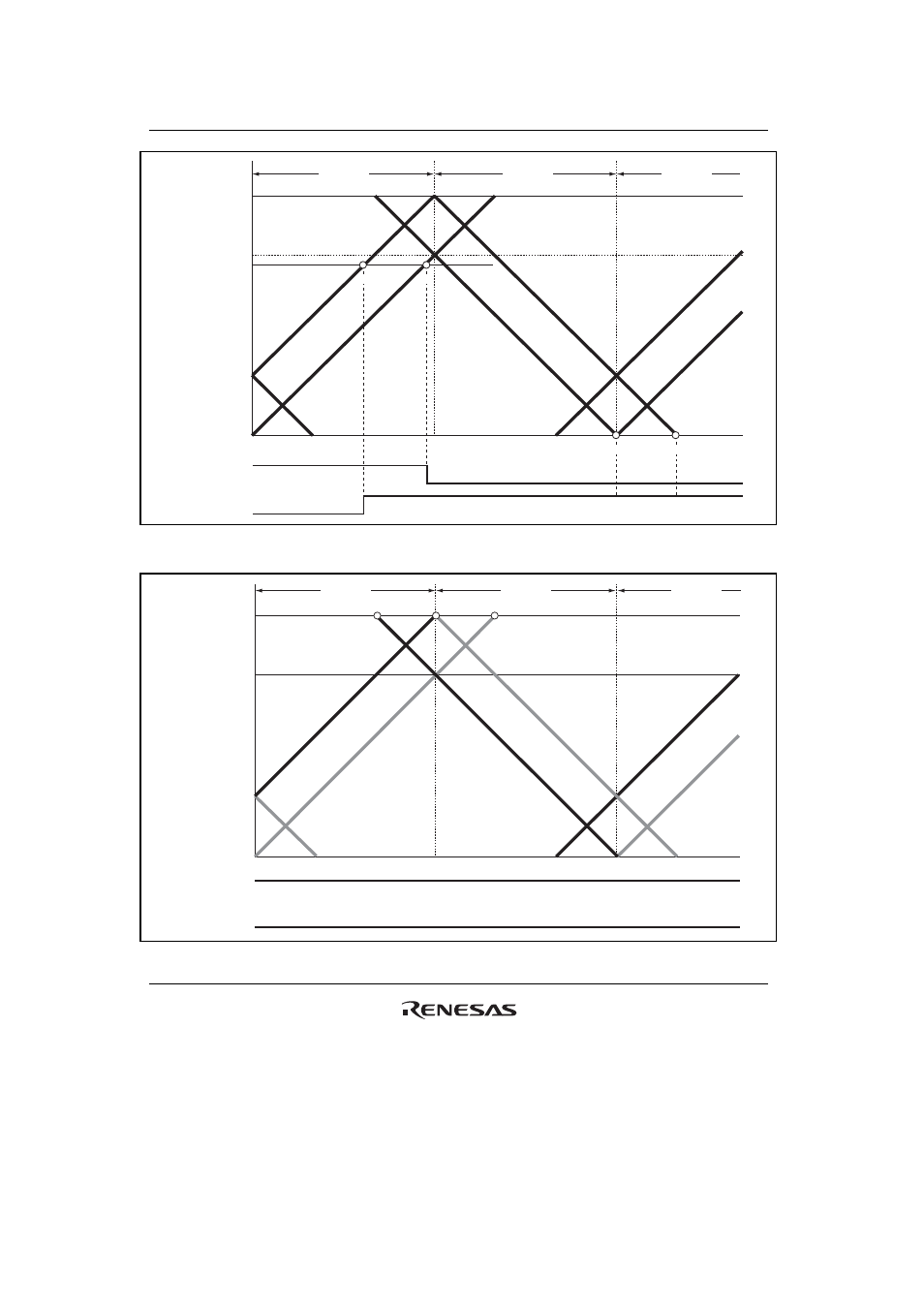

Figure 18.46 Example of Complementary PWM Mode 0% and 100% Waveform Output (4)
c a d b
T2 period T1 period T1 period
TGRA_3
TCDR
TDDR
H'0000
Positive phase
Negative phase
Figure 18.47 Example of Complementary PWM Mode 0% and 100% Waveform Output (5)
