MTS Multipurpose Elite User Manual
Page 99

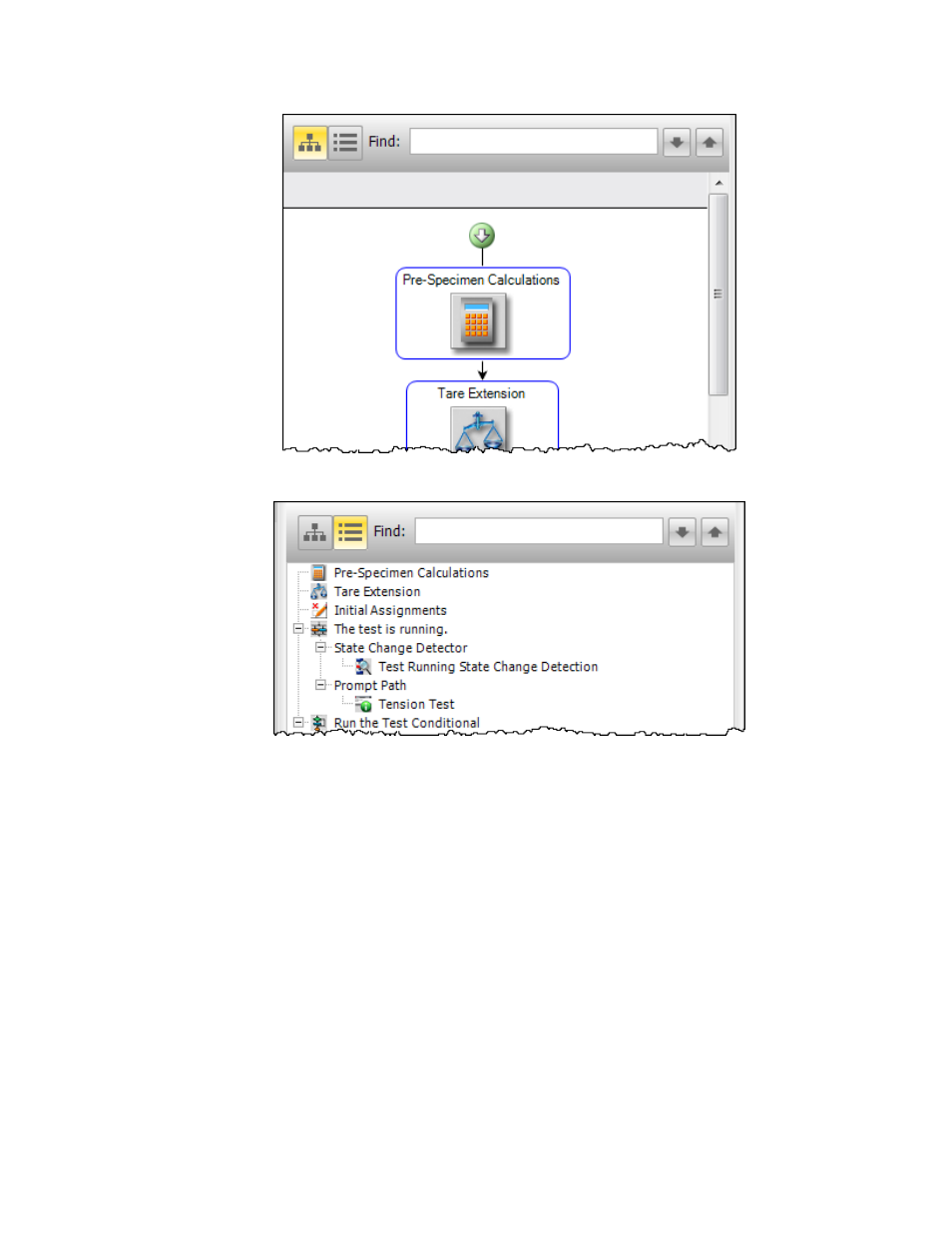

Flowchart View of Workflow
Outline View of Workflow
The Toolbox Panel for the test procedure shows the activities that are available. To construct a test
procedure, drag an activity from the Toolbox Panel to the work area in the order in which they should occur.
Test activities are shown in the workflow graphically for ease of design and editing. Settings and other
properties for activities and displays are provided on the Properties panel.
Error List
The Error List shows messages about possible problems with the configuration or procedure that is being
constructed.
Test Runs
You can run a test multiple times. All runs for a particular test use the same definition. However, a different
specimen definition may be used for each new test run.
Specimen definitions can be obtained in the following ways:
•
You can create a new specimen definition.
MTS TestSuite | 99
Working with Multipurpose Elite
