MTS Multipurpose Elite User Manual
Page 365
Road Surface Files
Nesting road surface files

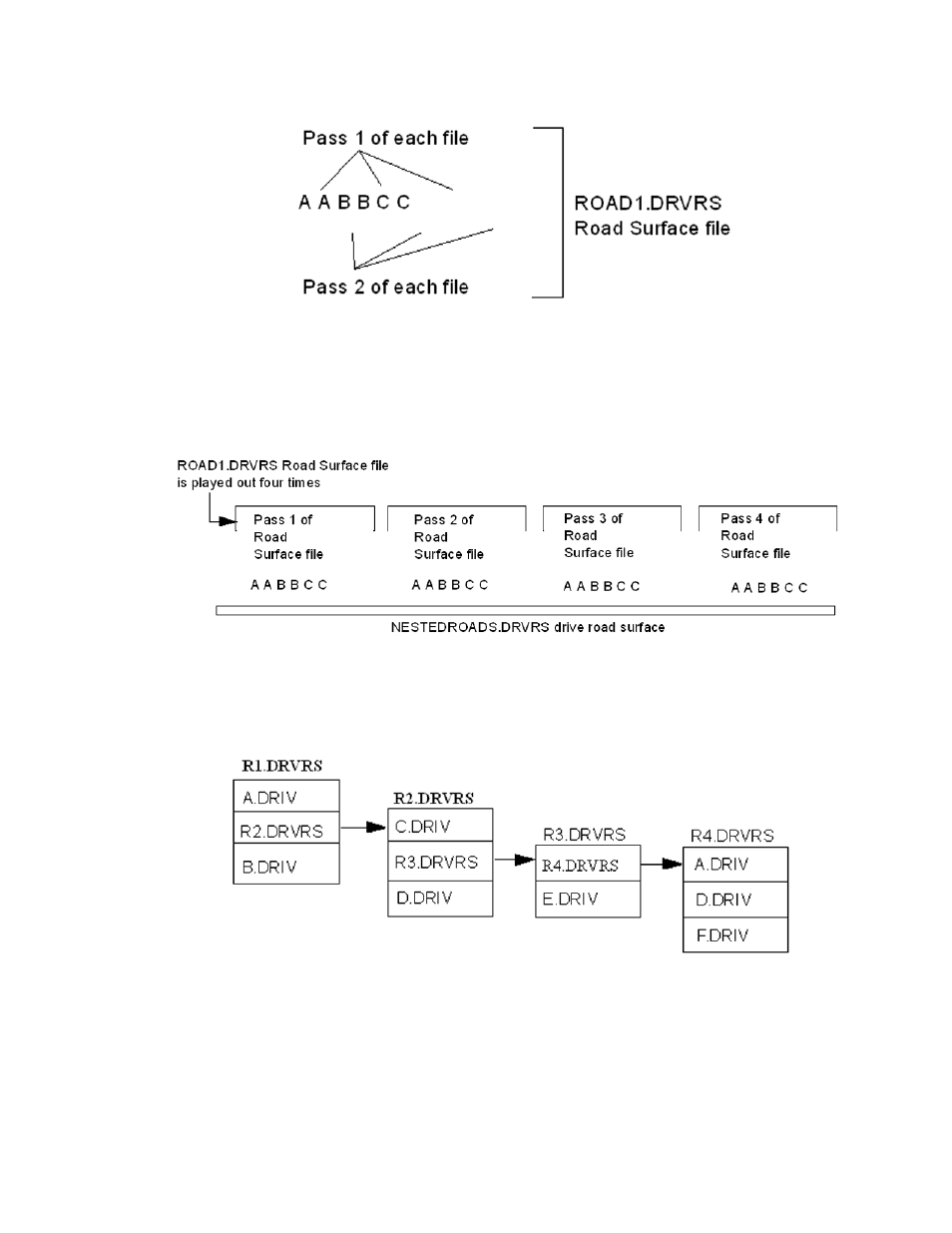

With RSURF you can nest files up to four levels. The following diagram shows two levels of nesting. Files
A, B, and C make up a Road Surface file named “ROAD1.DRVRS”. The level 2 drive Road Surface file,
“NESTEDROADS.DRVRS”, contains four passes of ROAD1.DRVRS.
RSURF Road Surface Files
You can nest a Road Surface file inside three other Road Surface files to produce a complex Road Surface
file of drive files. For example, in the following diagram, R4.DRVRS is nested in Road Surface files
R3.DRVRS, R2.DRVRS, and R1.DRVRS:
Road Surface Files with Nested Files
For More Information
Task
Reference
Time History Sequence Output (THSO) Files Overview
(p. 366)
Time History Sequence Output Properties
(p. 367)
