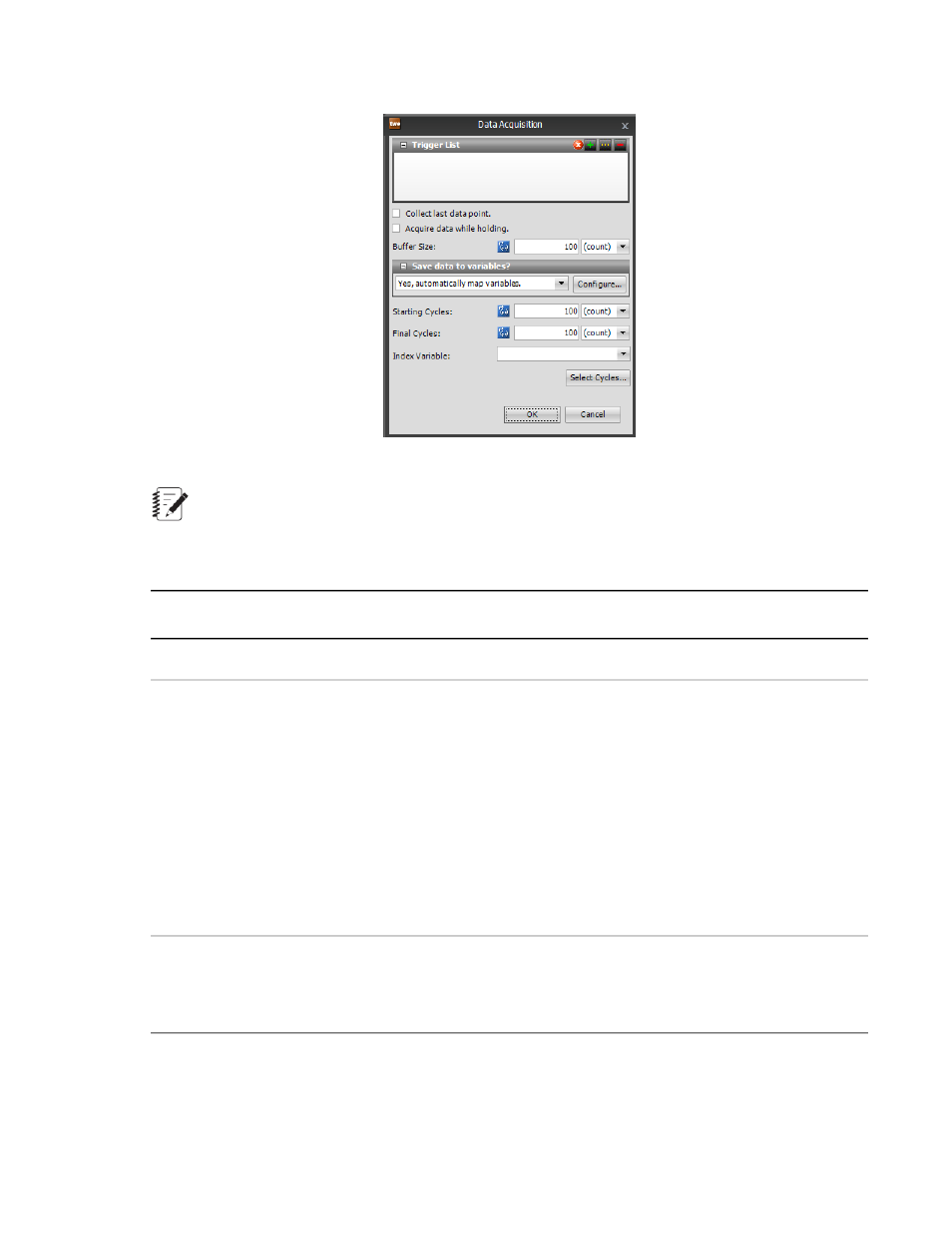

Data Acquisition Window
Note:
This activity is hardcoded to always process data in blocks.
Data Acquisition Window
Description Item
Select and configure the trigger(s) used for this activity. Trigger List
No—The signal data is not put into variables. Save data to variables?
Yes, automatically map variables—(Default for TWE) The signals
being acquired are automatically mapped to variables of the same
name with the word “Array” appended and illegal characters removed.
For example, the signal with an internal name of “Axial Force” is
mapped to the variable “AxialForceArray”.
In addition, calculations dependent on these mapped variables are
automatically added to the Additional Calculations list.
Yes, manually map variables—The test designer must manually
map the signals and additional calculations by clicking the Configure
button and using the Map Variables window.
Open the Map Variables window where you can map signal data into
variables that can be used to perform calculations on signal data, Configure button
perform logical condition checks, acquire signal data for test-run
displays.
