Page 606

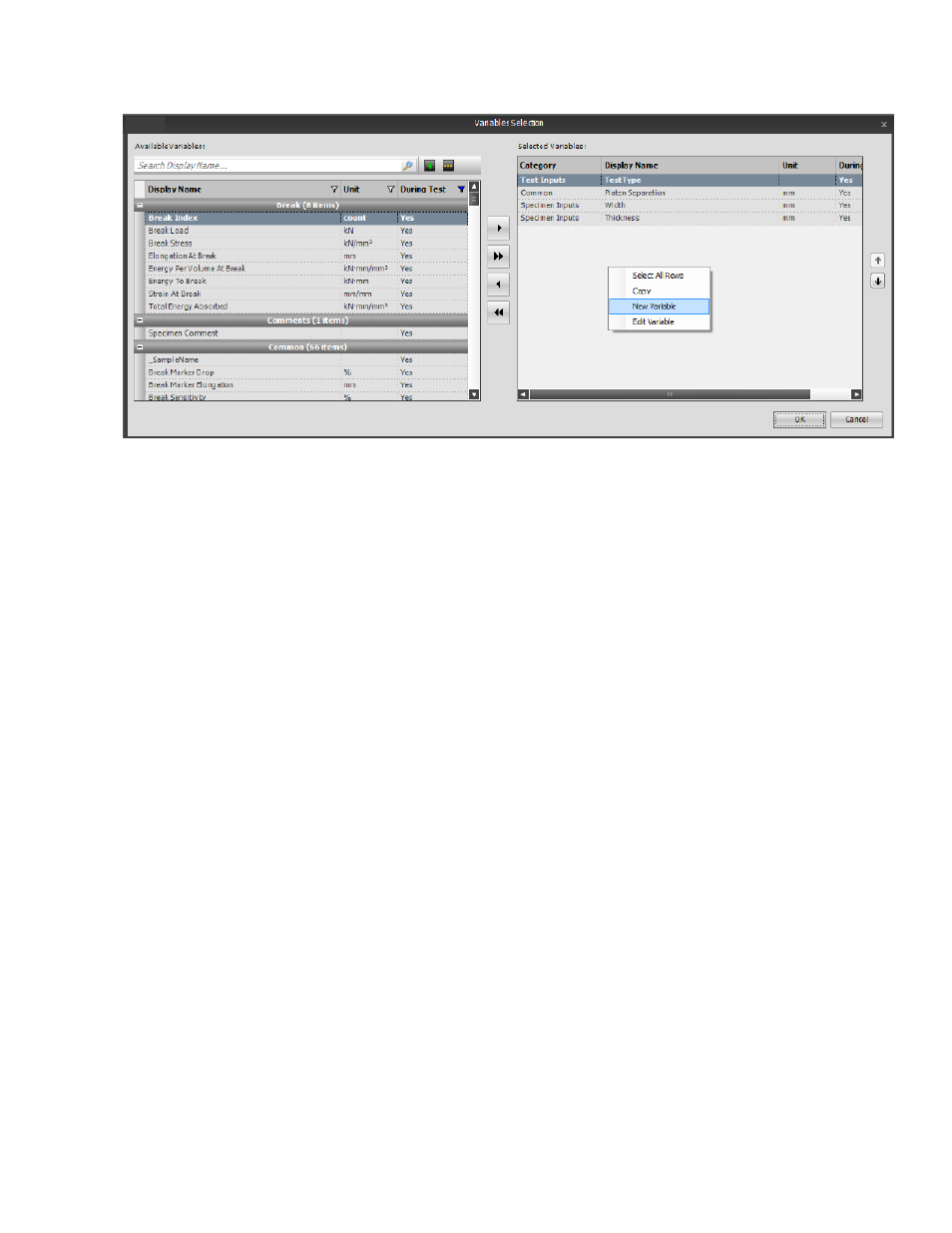

The variables that you select in the Variables Selection window (double-click or use arrows to move
variables from the Available Variables column to the Selected Variables column) are placed in a horizontal
row.
Tabs
About Tabs
Use Tabs to organize monitor displays into multiple views. While running a test, you can view the test-run
displays on that tab by clicking the tab. You can also associate a tab with an activity in the test procedure
so that the tab is automatically displayed when the activity runs.
Tabs Properties
In the Layout group of the Toolbox panel, double-click Tabs to open a resizable, 2-tab window. You can
nest tabbed pages to create multi-level test-run display structures or add Panels to add more structure to
your display organization. During a test run, you can selectively view the information in predefined tabs.
You can automatically show a tab when an associated activity occurs by using transitions.
606 | MTS TestSuite
Test-Run Displays
