Array-variable chart properties, Display name, Visibility panel – MTS Multipurpose Elite User Manual
Page 528

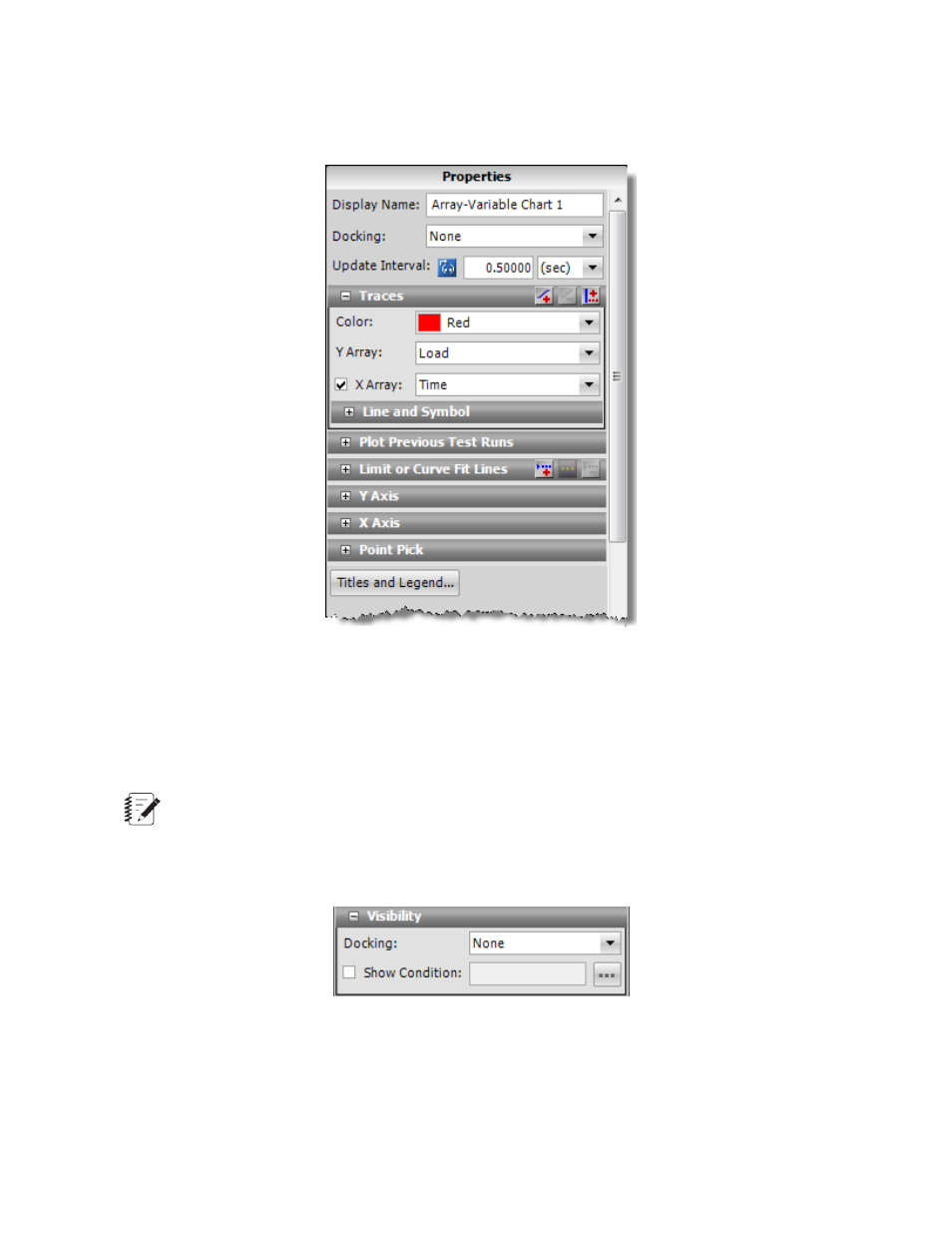

Array-Variable Chart Properties
Array-Variable Chart Properties Panel
Display Name
This is the name that is shown for the object in the application. It is a required property so the box cannot
be empty. The default is the type of the chart and the number indicating how many are on the Display tab,
such as Cycle Statistics Table 1. You can also click in the box and type a new name.
Note:
The Display Name is only used in the event of validation errors.
Visibility Panel
Visibility Panel
For Docking, select where on the monitor you want the test-run display to be positioned, Top, Left, Bottom,
Right, or Fill, where the display fills the entire tab or panel.
528 | MTS TestSuite
Test-Run Displays
