Signal gage formatting properties – MTS Multipurpose Elite User Manual
Page 562
Variable Information
Description
Item
Specify the number of rows to be in the meter display.
Rows
Check the box to have labels not be shown on the meter display.
Suppress label display
Check the box and the meter display box on the Designer panel becomes
re-sizable using your cursor.
Manual Sizing
Select the size of the label shown in the meter.
Label Font Size
Select the size of the value shown in the meter.
Value Font Size
Select a color (or transparent) of the foreground of the meter.
Foreground Color
Select a color (or transparent) of the background of the meter.
Background Color
Select Right, Center, or Left for the location of the text on the meter.
Text Alignment

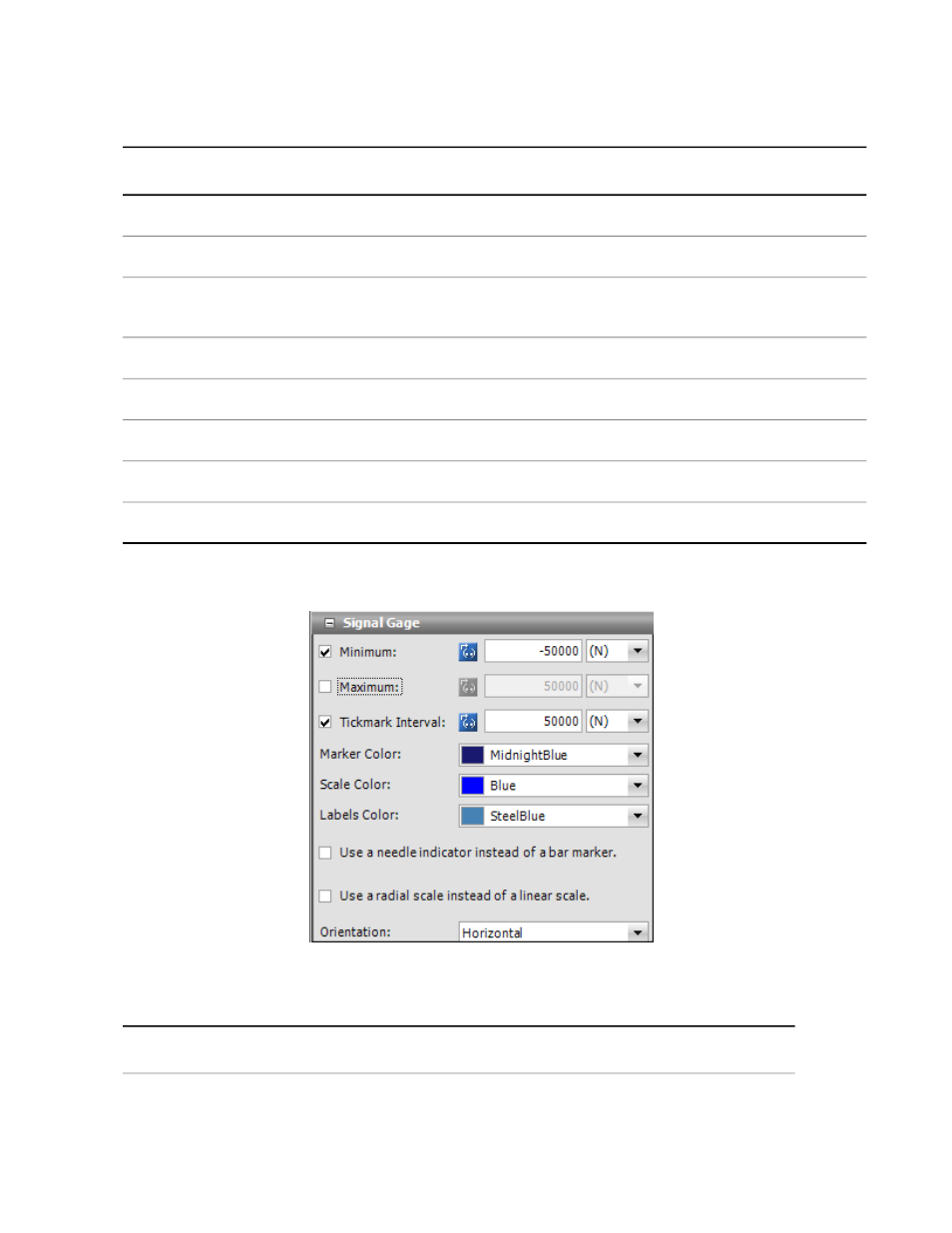

Signal Gage Formatting Properties
Use the Signal Gage panel to specify how the signal gage is formatted.
Signal Gage Formatting Properties
Description
Item
Specifies the minimum value or variable and units for the signal.
Minimum
562 | MTS TestSuite
Test-Run Displays
