Varidentifier.displayvalue, Functions tab – MTS Multipurpose Elite User Manual
Page 278
Unit Class
String
varIdentifier.DisplayValue
This construct is implicit in the MTS TestSuite application. Use this syntax in a calculation to return a string
representation of a string variable; including its name, value, and units.
Returns
Returns the string representation of the variable in display units.
Syntax
variableStringName.displayvalue
Replace variableStringName with the actual name of the string variable.
Example
Create a string variable in any of the TWE application EM templates and enter the following calculation:
StrnAtBreak.display+" "+StrnAtBreak.displayvalue+" "+StrnAtBreak.units
The result is similar to the following:
Strain at Break 0.236 mm/m
“StrainAtBreak” is the string variable, the display value of the variable is 0.236, and the units are mm/m.
Functions Tab

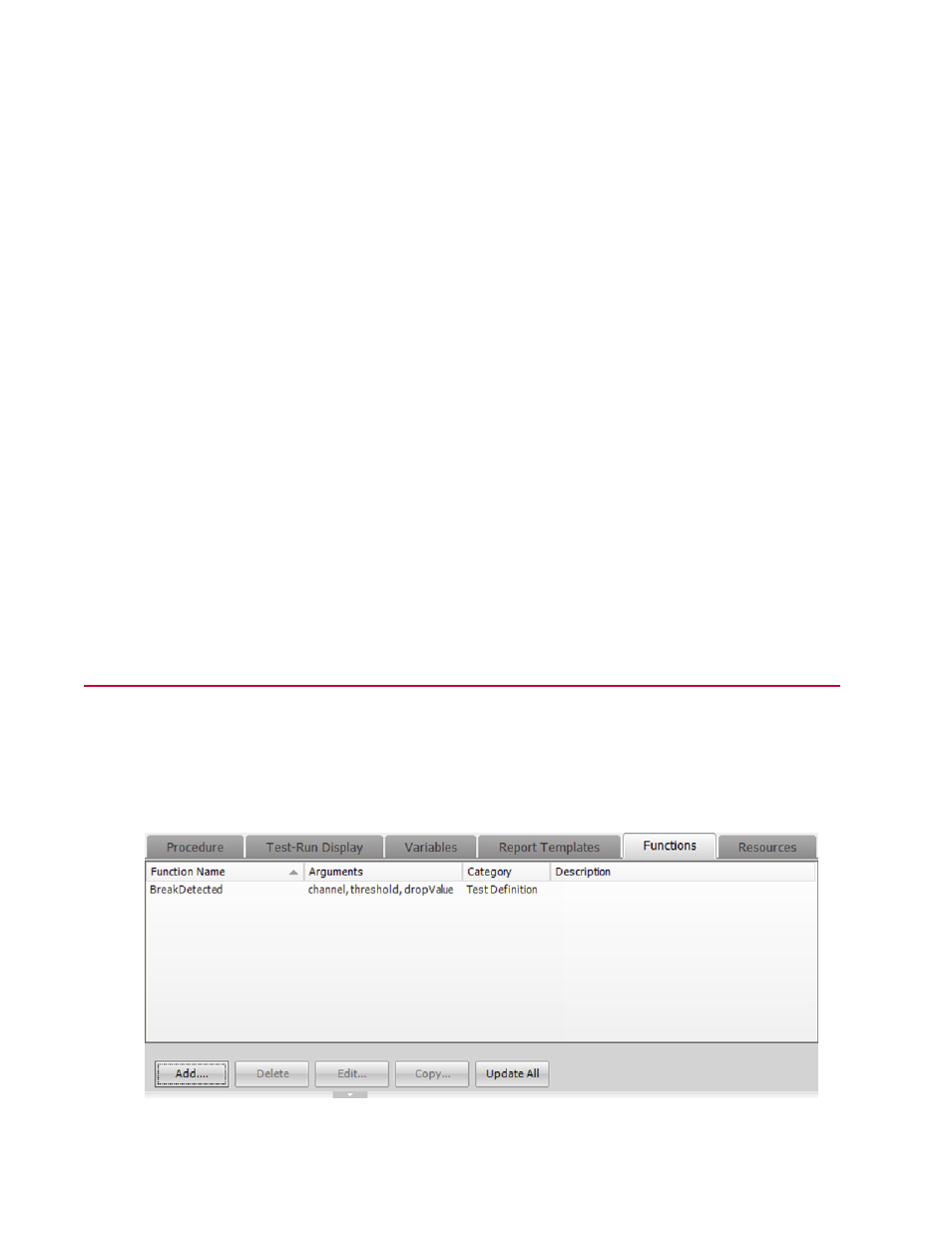

Use the Functions tab to manage the functions in the Test Definition.
Access
Click Explorer panel > Test Definition node > Functions > Functions tab.
278 | MTS TestSuite
