Signal Gage
About Signal Gages
The Signal Gage shows the current level of a signal in a meter and in a linear or radial gage. The signal
shown during runtime is chosen from a list of available signals. The list of available signals is determined
by the test Resources. A signal gage can show one signal. For multiple signals, create an equal number
of signal gages.
Signal Gage Properties

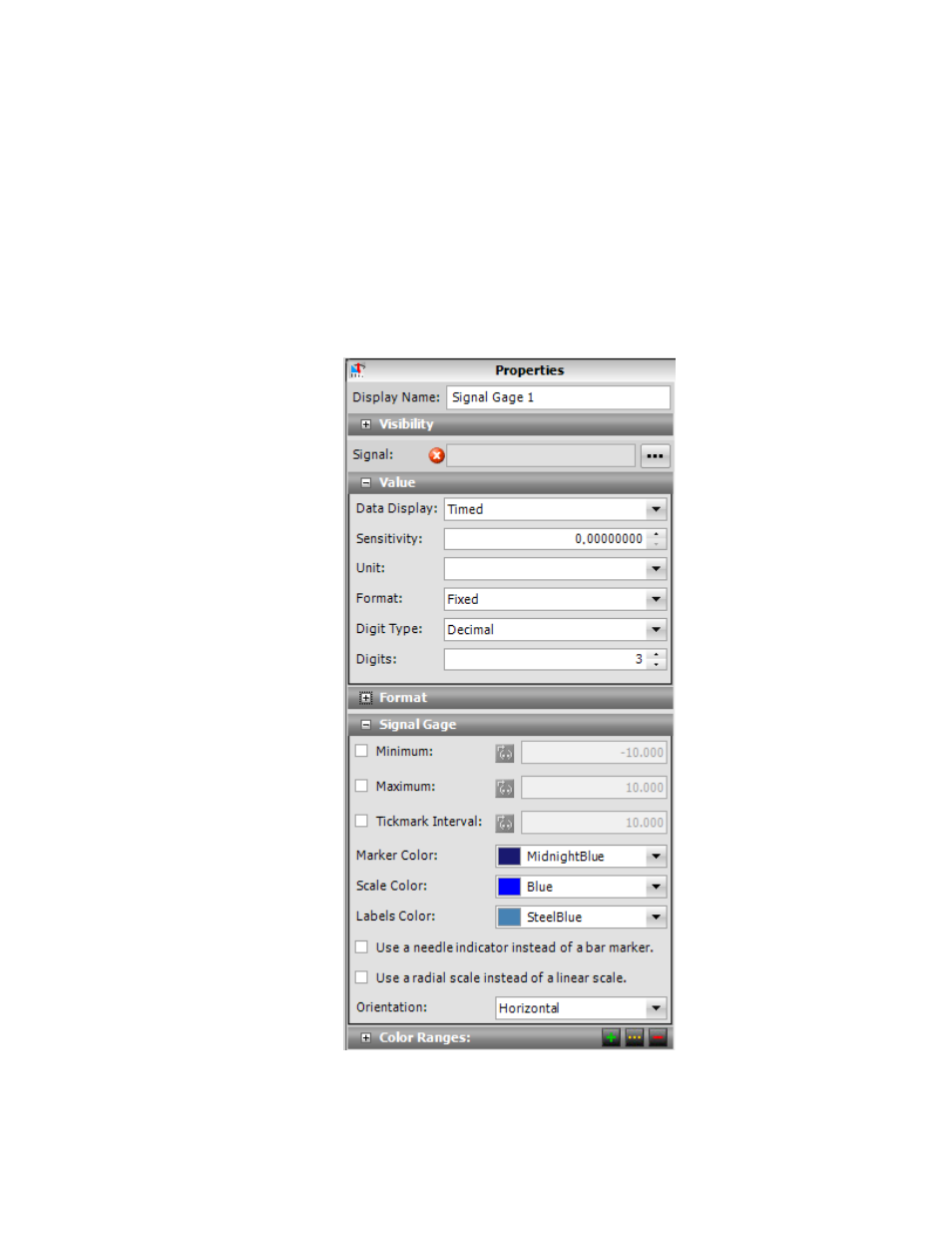

Signal Gage Properties Panel
