Variable meter, About variable meters – MTS Multipurpose Elite User Manual
Page 543
Variable Meter
About Variable Meters
In addition to the Display menu > Meters tab, you can create a test-run display to monitor the value of a
variable. These meter configuration settings are saved with the test.
The Variable Meter shows asterisks in both the Designer and Preview tabs until you begin running the
test. The Variable Meter shows the current value of a single variable during a test run.
Variable meters show variable data in the test-run display only when the test is running. Before a running
a test, variable meters show “***”.
The meter display includes the label, the value, and the unit.

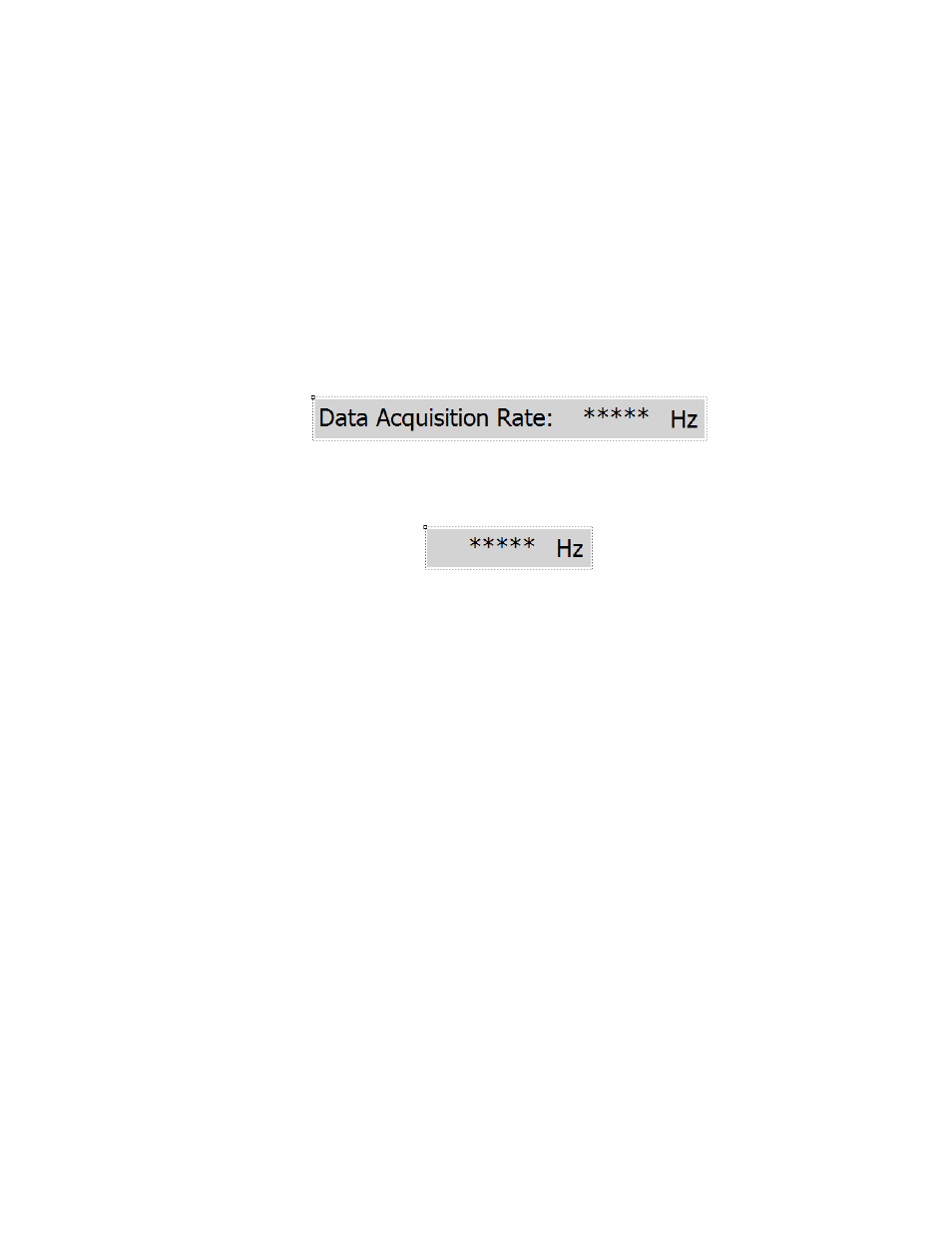

Variable Meter Display
For a compact presentation, select the Suppress Label Display property.
Supress Label Display
MTS TestSuite | 543
Test-Run Displays
