Turn on hydraulic power – MTS Multipurpose Elite User Manual
Page 618

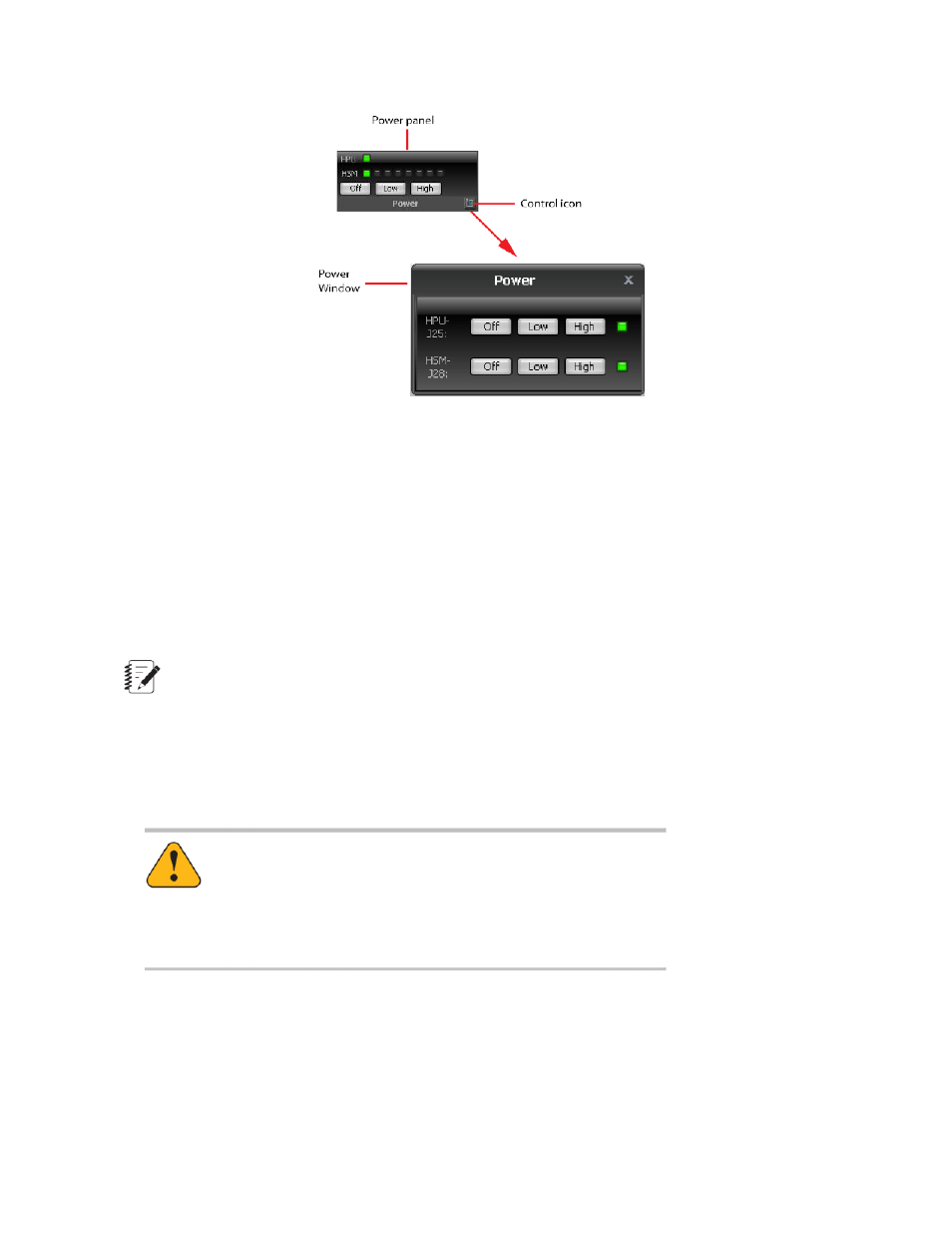

Power Window
For More Information
Task
(p. 618)
(p. 619)
Reference
Turn On Hydraulic Power
Hydraulic power is turned on by clicking controls on the Power panel.
Note:
Some system configurations may require you to click the control icon on the Power panel to display
the Power window, and use the Power window controls to start the HPU before you are allowed to
start the HSMs.
1. If the Interlock indicator is on, click Reset to release system interlocks.
If the interlock remains on, use the Message Logs to identify and correct the cause of the interlock.
Warning
:
Applying hydraulic power can result in sudden actuator motion.
A moving actuator can injure anyone in its path.
Always clear the actuator area before applying hydraulic power.
2. Click Low Power.
This action sets the hydraulic power unit to high pressure and the hydraulic service manifold to low
pressure.
3. Click High Power.
This action sets the hydraulic service manifold to high pressure.
618 | MTS TestSuite
